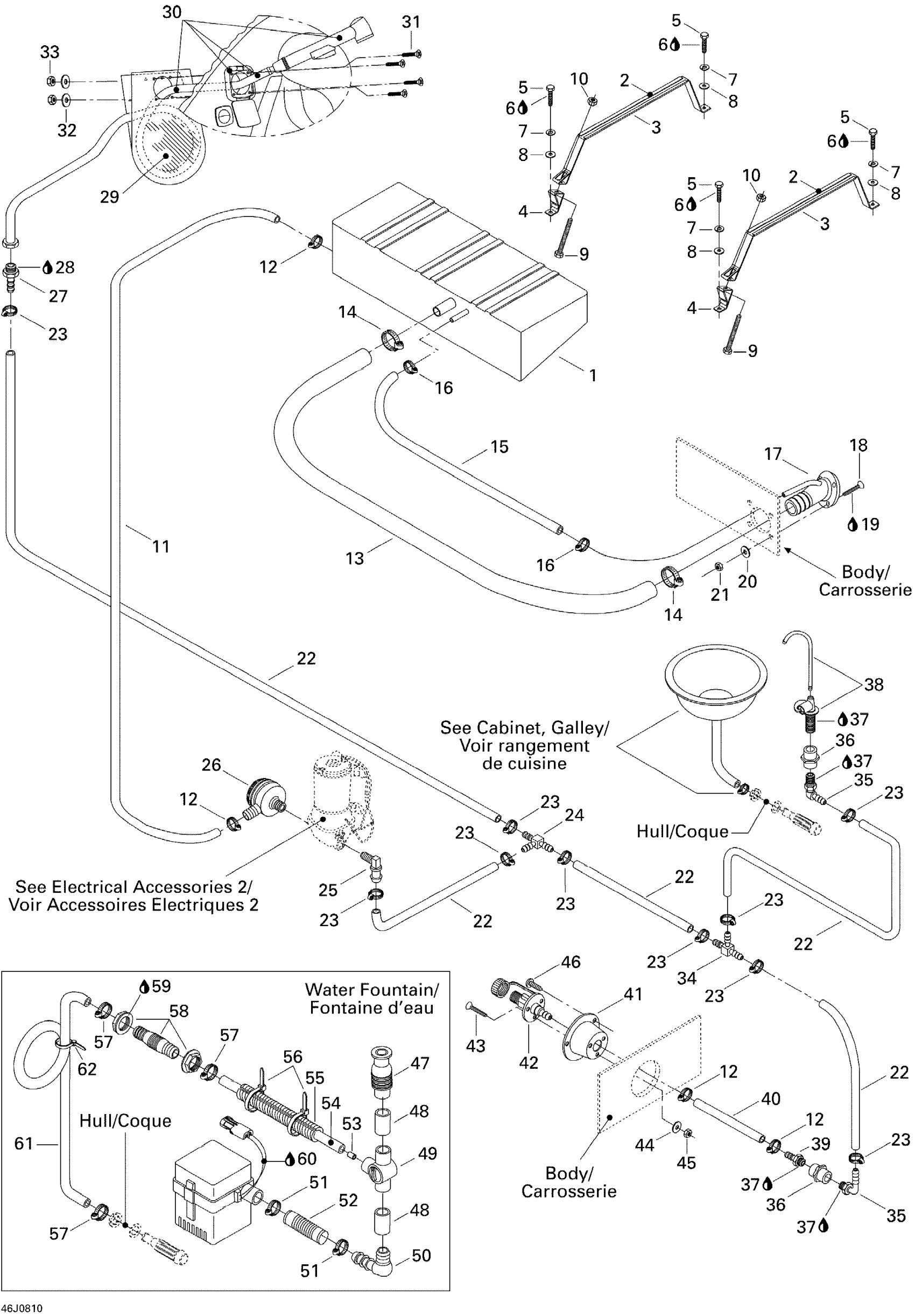

Sea-doo Islandia SE 430, 2008 09- Passenger Water System Diagram
#
1
WATER TANK - Call your local BRP dealership
204940002
Unavailable
2
PROTECTOR PAD - Call your local BRP dealership
293830044
Unavailable
3
WATER TANK STRAP - Call your local BRP dealership
204940003
Unavailable
4
TANK BRACKET - Call your local BRP dealership
275500252
Unavailable
5
Hex. Screw M8 X 30
207183060
$1.58
6
Loctite 243, 10 ml
293800060
$21.49
7
Lock Washer 8 mm, Stainless
234181601
$0.55
8
Flat Washer 8 mm, Stainless
234082600
$2.43
9
HEX. SCREW M8 X 55 - Call your local BRP dealership
207185560
Unavailable
10
Hex. Elastic Nut M8
232581600
$1.48
11
FRESH WATER HOSE, METER - Call your local BRP dealership
204940010
Unavailable
12
NORMA CLAMP - Call your local BRP dealership
293650069
Unavailable
13
PVC Hose, Meter
204940005
Unavailable
14
Norma Clamp
293650074
$17.05
15
PVC Hose 16 Mm , Meter
204940015
Unavailable
16
Tridon Gear Clamp
293650172
$3.09
17
VENT NECK-FILLER - Call your local BRP dealership
204940041
Unavailable
18
Phillips Screw M4 X 30
208643060
Unavailable
19
Loctite 243, 10 ml
293800060
$21.49
20
Flat Washer 4 mm, Stainless
234042600
$1.15
21
Elastic Stop Nut M4
232541600
$1.15
22
FRESH WATER HOSE, METER - Call your local BRP dealership
204940008
Unavailable
23
Tridon Gear Clamp
293650172
$3.09
24
T-Fitting
204940011
Unavailable
25
ELBOW FITTING 90 - Call your local BRP dealership
204940009
Unavailable
26
FRESH WATER FILTER - Call your local BRP dealership
204940007
Unavailable
27
MALE FITTING 1/2? - Call your local BRP dealership
204940019
Unavailable
28
Was 293800018 Loctite 592, 50 ml | Package T
219704455
$33.99
29
Bag, Hose/Shower
204940029
Unavailable
30
FRESH WATER SHOWER - Call your local BRP dealership
204940018
Unavailable
31
Phillips Screw M4 X 30
208443060
$1.48
32
Flat Washer 4 mm, Stainless
234042600
$1.15
33
Elastic Stop Nut M4
232541600
$1.15
34
T-Fitting
204940011
Unavailable
35
NYLON FITTING 1/2, 90 - Call your local BRP dealership
204940031
Unavailable
36
NYLON FITTING 1/2? - Call your local BRP dealership
204940030
Unavailable
37
Silicone Sealant 51388, 300 ml
296000309
$36.99
38
Sink Faucet
204940017
Unavailable
39
Nylon Fitting 1/2” X 3/4”
204940032
Unavailable
40
FRESH WATER HOSE, METER - Call your local BRP dealership
204940010
Unavailable
41
Washdown Cup
204940051
Unavailable
42
WASHDOWN FAUCET - Call your local BRP dealership
204940020
Unavailable
43
PHILLIPS SCREW M4 X 16 - Call your local BRP dealership
208441660
Unavailable
44
Flat Washer 4 mm, Stainless
234042600
$1.15
45
Elastic Stop Nut M4
232541600
$1.15
46
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
47
Fountain Nozzle
204940025
Unavailable
48
Extension Tube
204940027
Unavailable
49
DIVERTER VALVE - Call your local BRP dealership
204940024
Unavailable
50
Elbow Fitting 3/4”, 90°
204940023
Unavailable
51
Norma Clamp
293650074
$17.05
52
Hose 1-1/8”, Meter
204940012
Unavailable
53
Water Hose
204940036
Unavailable
54
FRESH WATER HOSE, METER - Call your local BRP dealership
204940010
Unavailable
55
SLIT CONDUIT 1 - Call your local BRP dealership This part replaces 204560132.
204130176
Unavailable
56
Tie Wrap 142 mm
293750002
$1.25
57
Tridon Clamp
293650016
$10.99
58
Thru Hull Fitting
204940035
Unavailable
59
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
60
Silicone Sealant 51388, 300 ml
296000309
$36.99
61
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership
291001206
Unavailable
62
Tie-Rap 180 mm
414115200
$0.11
