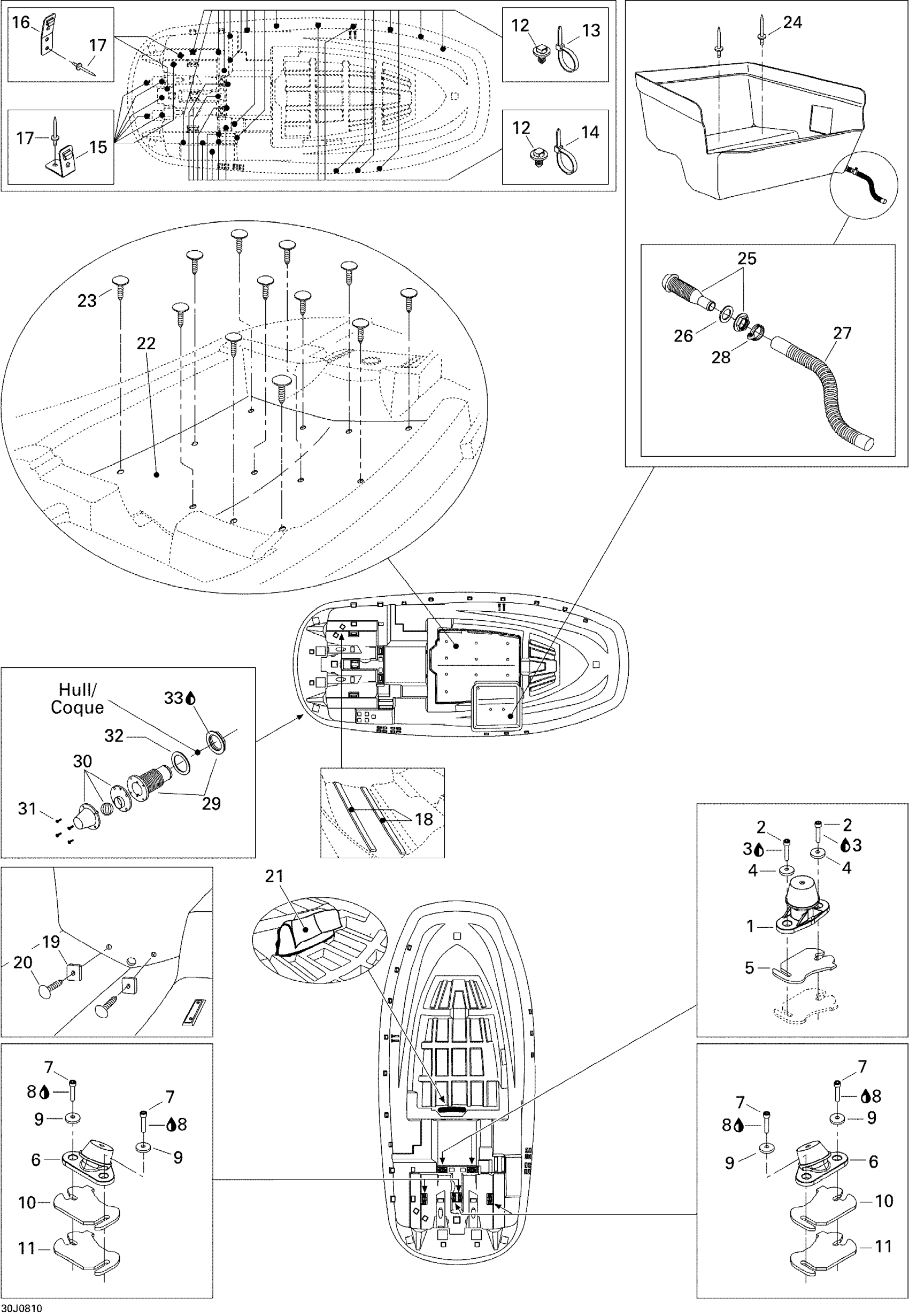

Sea-doo Islandia SE 430, 2008 09- Lower Hull Diagram
#
Description
Price
1
Engine Support Ass'y
270001096
$97.99
2
Socket Head Screw M8 X 45
205084560
$3.59
3
Loctite 243, 10 ml
293800060
$21.49
4
Cone Washer
250200018
$5.61
5
Shim 0.3 mm - Call your local BRP dealership
204250048
Unavailable
6
Engine Support Ass'y
270001081
$109.99
7
SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership
205084060
Unavailable
8
Loctite 243, 10 ml
293800060
$21.49
9
Cone Washer
250200018
$5.61
10
SHIM 0.3 MM - Call your local BRP dealership
270000445
Unavailable
11
Shim 1.3 mm
270000762
$12.99
12
Mount Dart
293730040
$1.04
13
Tie-Rap 180 mm
414115200
$0.11
14
Tie Wrap 368 mm
293750008
$1.04
15
Strap Clip 90°
204060017
Unavailable
16
Strap Clip
293850030
$11.12
17
Avdel Rivet 3/16"
293150037
$0.56
18
PROTECTOR PAD - Call your local BRP dealership
204560115
Unavailable
19
RUBBER PAD - Call your local BRP dealership
204060684
Unavailable
20
Black, Dart
293730006
$0.99
21
CARPET, CENTER STORAGE - Call your local BRP dealership
204061087
Unavailable
22
Storage Liner
204060577
Unavailable
23
Black, Dart
293730006
$0.99
24
Pop Rivet 3/16”
204100051
Unavailable
25
Fitting
293710162
$13.49
26
GASKET - Call your local BRP dealership This part replaces 293250251.
293250006
Unavailable
27
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership
291001206
Unavailable
28
Tridon Clamp
293650016
$10.99
29
THRU HULL FITTING - Call your local BRP dealership
204060071
Unavailable
30
SCUPPER VALVE - Call your local BRP dealership
204060188
Unavailable
31
PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown
211000180
Unavailable
32
GASKET - Call your local BRP dealership
292800106
Unavailable
33
Silicone Sealant 51388, 300 ml
296000309
$36.99
