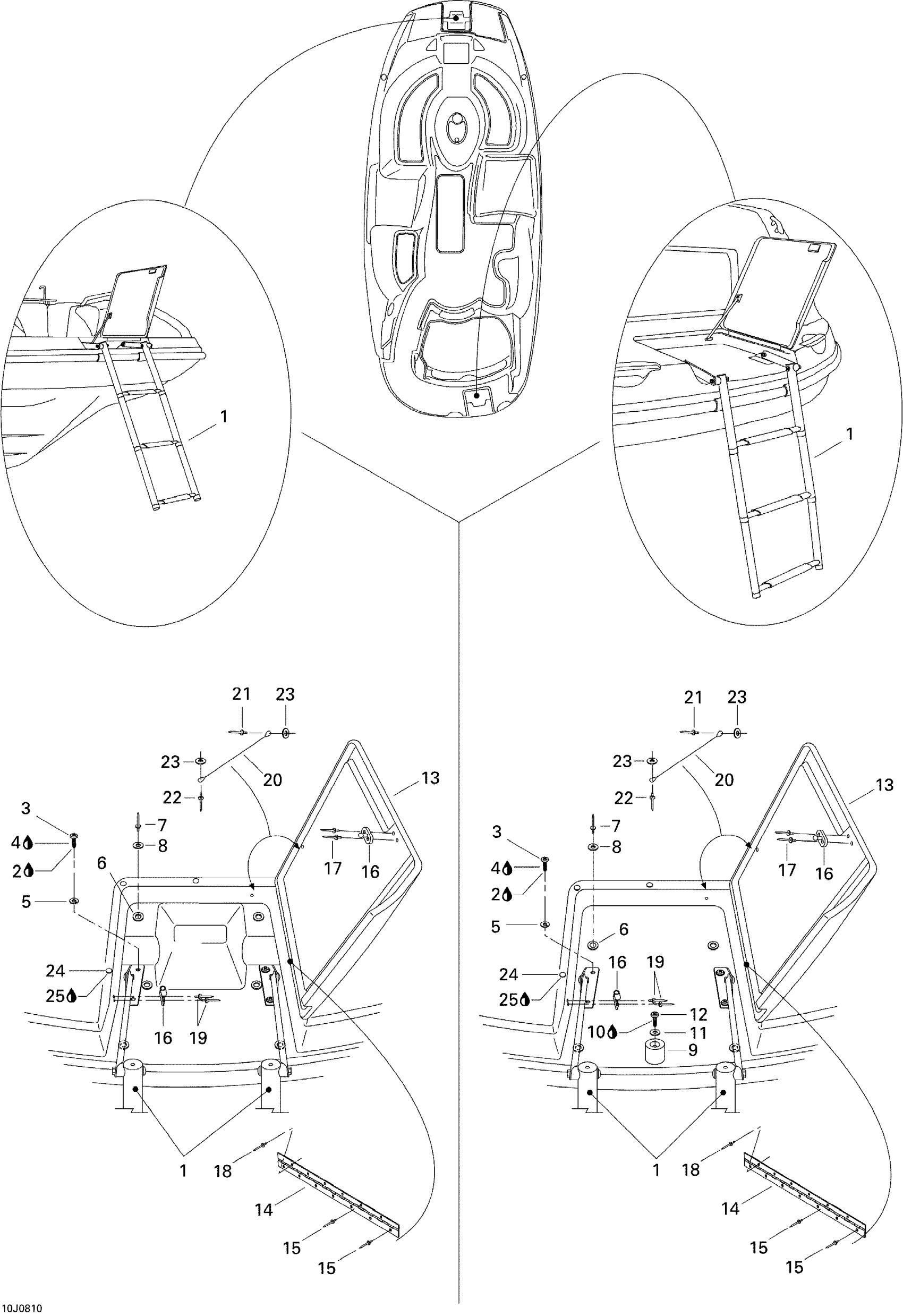

Sea-doo Islandia SE 430, 2008 09- Ladder, Front and Rear Diagram
#
Description
Price
1
LADDER, 3 STEPS - Call your local BRP dealership
204071530
Unavailable
2
Silicone Sealant 51388, 300 ml
296000309
$36.99
3
PHILLIPS SCREW M6 X 30 - Call your local BRP dealership
208663060
Unavailable
4
Loctite 243, 10 ml
293800060
$21.49
5
Lock Washer Helical M6
234161601
$1.15
6
BUMPER PAD - Call your local BRP dealership
204073815
Unavailable
7
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
8
Flat Washer 4 mm, Stainless
234041600
$1.15
9
RUBBER BUMPER - Call your local BRP dealership
204071720
Unavailable
10
Silicone Sealant 51388, 300 ml
296000309
$36.99
11
Flat Washer 4 mm, Stainless
234042600
$1.15
12
TAPPING PHILLIPS SCREW 4.2 X 38 - Call your local BRP dealership
209643860
Unavailable
13
Ladder Door
204072580
Unavailable
14
LADDER DOOR HINGE - Call your local BRP dealership
204071811
Unavailable
15
Pop Rivet 3/16"
293150008
$0.50
16
Door Catch
204070759
Unavailable
17
Pop Rivet 1/8”
293150015
$0.40
18
Pop Rivet 3/16"
293150088
$0.99
19
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
20
RETAINER CABLE - Call your local BRP dealership
204071498
Unavailable
21
Pop Rivet 3/16"
293150039
$1.49
22
Pop Rivet 3/16"
293150043
$2.09
23
Flat Washer M5, Stainless
234051600
$0.77
24
BUMPER - Call your local BRP dealership
204070940
Unavailable
25
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
