Partiron

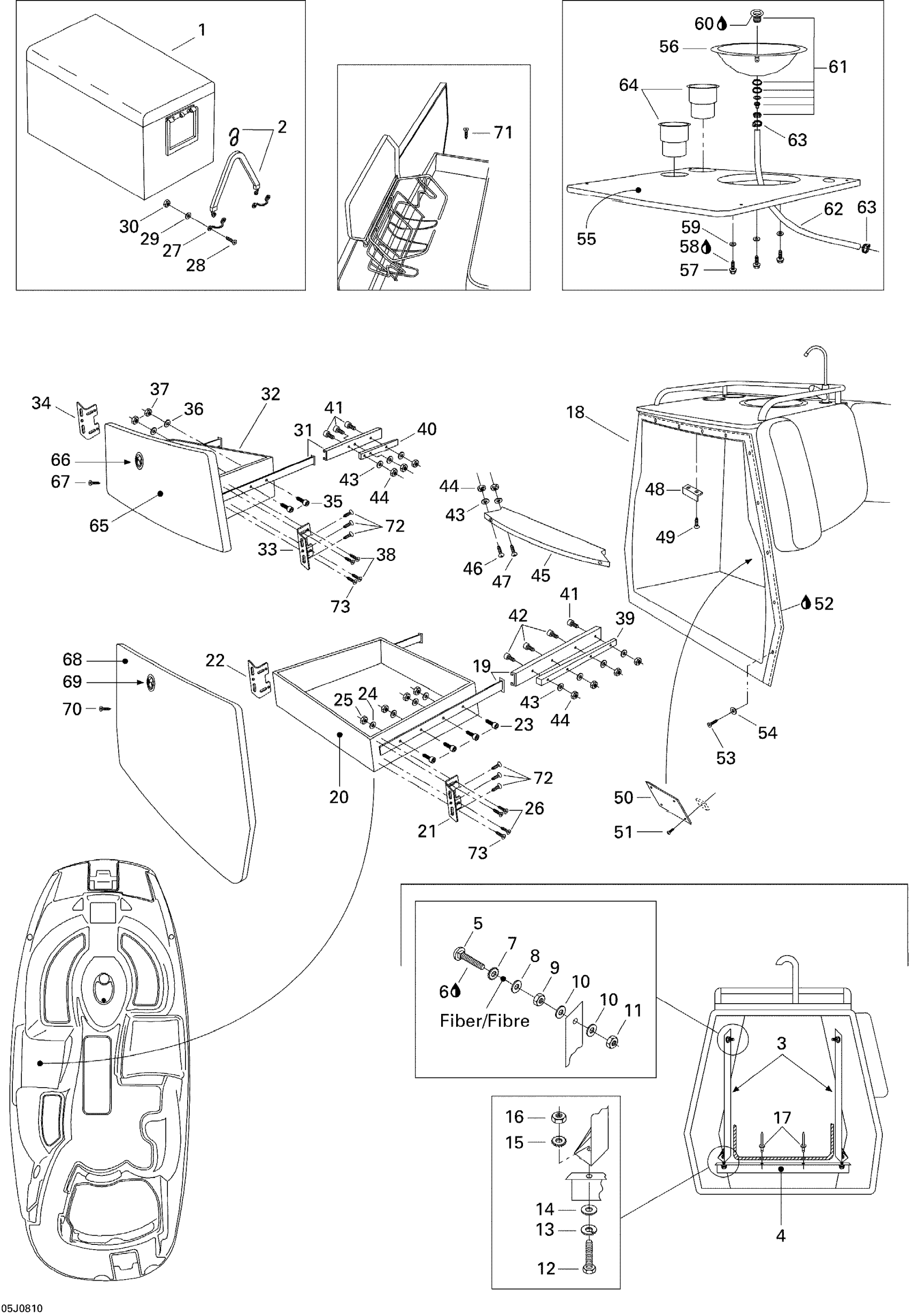

Sea-doo Islandia SE 430, 2008 Cabinet, Galley Diagram

#

Description
Price

1

ICe Chest

204072591

Unavailable

2

ICE CHEST STRAP - Call your local BRP dealership

204070905

Unavailable

3

STRAP 565 MM - Call your local BRP dealership

204070971

Unavailable

4

Angle 813 mm

204070972

Unavailable

5

Elevator Bolt

204000130

Unavailable

6

Loctite 243, 10 ml

293800060

$21.49

7

EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership

211200054

Unavailable

8

WASHER-FENDER/S.S. - Call your local BRP dealership

204100139

Unavailable

9

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

10

Flat Washer M6, Stainless

234062600

$0.77

11

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

12

HEX. SCREW M8 X 55 - Call your local BRP dealership

207185560

Unavailable

13

Lock Washer 8 mm, Stainless

234181601

$0.55

14

Flat Washer 8 mm, Stainless

234082600

$2.43

15

TOOTHED LOCK WASHER - Call your local BRP dealership

234381608

Unavailable

16

Hex. Nut M8

232081600

$1.47

17

RIVET - Call your local BRP dealership

293150065

Unavailable

18

Galley Cabinet

204072577

Unavailable

19

Drawer Slides, Long

204070612

Unavailable

20

Drawer, Bottom

204070964

Unavailable

21

RH DRAWER BRACKET, 94DEG - Call your local BRP dealership

204070725

Unavailable

22

LH DRAWER BRACKET, 80DEG - Call your local BRP dealership

204070726

Unavailable

23

Socket Head Screw M4 X 16

205441660

$1.47

24

Flat Washer 4 mm, Stainless

234042600

$1.15

25

Elastic Stop Nut M4

232541600

$1.15

26

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

27

STRAP EYE - Call your local BRP dealership

204071845

Unavailable

28

Socket Head Screw M4 X 16

205441660

$1.47

29

Flat Washer 4 mm, Stainless

234042600

$1.15

30

Elastic Stop Nut M4

232541600

$1.15

31

DRAWER SLIDES, SHORT - Call your local BRP dealership

204070613

Unavailable

32

DRAWER, BOTTOM - Call your local BRP dealership

204070619

Unavailable

33

RH DRAWER BRACKET, 94DEG - Call your local BRP dealership

204070725

Unavailable

34

LH DRAWER BRACKET, 80DEG - Call your local BRP dealership

204070726

Unavailable

35

Socket Head Screw M4 X 16

205441660

$1.47

36

Flat Washer 4 mm, Stainless

234042600

$1.15

37

Elastic Stop Nut M4

232541600

$1.15

38

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

39

SLIDE SHIM, LONG - Call your local BRP dealership

204070727

Unavailable

40

SLIDE SHIM, SHORT - Call your local BRP dealership

204070728

Unavailable

41

Socket Screw M4 X 25

205442560

$1.15

42

SOCKET HEAD SCREW M4 X 35 - Call your local BRP dealership

205443560

Unavailable

43

Flat Washer 4 mm, Stainless

234042600

$1.15

44

Elastic Stop Nut M4

232541600

$1.15

45

LATCH SUPPORT - Call your local BRP dealership

204070965

Unavailable

46

Phillips Screw M4 X 30

208443060

$1.48

47

PHILLIPS SCREW M4 X 50 - Call your local BRP dealership

208445060

Unavailable

48

KEEPER - Call your local BRP dealership

204070060

Unavailable

49

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

50

ACCESS COVER - Call your local BRP dealership

204070916

Unavailable

51

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

52

Silicone Sealant 51388, 300 ml

296000309

$36.99

53

TAPPING PHILLIPS SCREW M4.8 X 38 - Call your local BRP dealership

250000086

Unavailable

54

FINITION WASHER - Call your local BRP dealership

204100057

Unavailable

55

COUNTER TOP - Call your local BRP dealership

204072467

Unavailable

56

Sink

204070625

Unavailable

57

Screw K40 X 10

241140060

$1.48

58

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

59

Flat Washer 4 mm, Stainless

234042600

$1.15

60

Silicone Sealant 51388, 300 ml

296000309

$36.99

61

SINK STRAINER ASS?Y - Call your local BRP dealership

204070626

Unavailable

62

Bilgeflex Hose 5/8”, Meter

204940033

Unavailable

63

Tridon Clamp

293650016

$10.99

64

CUP HOLDER - Call your local BRP dealership | STD

291000619

Unavailable

65

Drawer Front

204072599

Unavailable

66

LATCH, WHITE - Call your local BRP dealership

204070120

Unavailable

67

SCREW M5 X 16 - Call your local BRP dealership

208651660

Unavailable

68

Front Drawer, Ice Chest

204072590

Unavailable

69

DOOR LATCH - Call your local BRP dealership

204070951

Unavailable

70

SCREW M5 X 16 - Call your local BRP dealership

208651660

Unavailable

71

PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership

209630960

Unavailable

72

Phillips Screw #8 X 1/2”

204100030

Unavailable

73

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable
