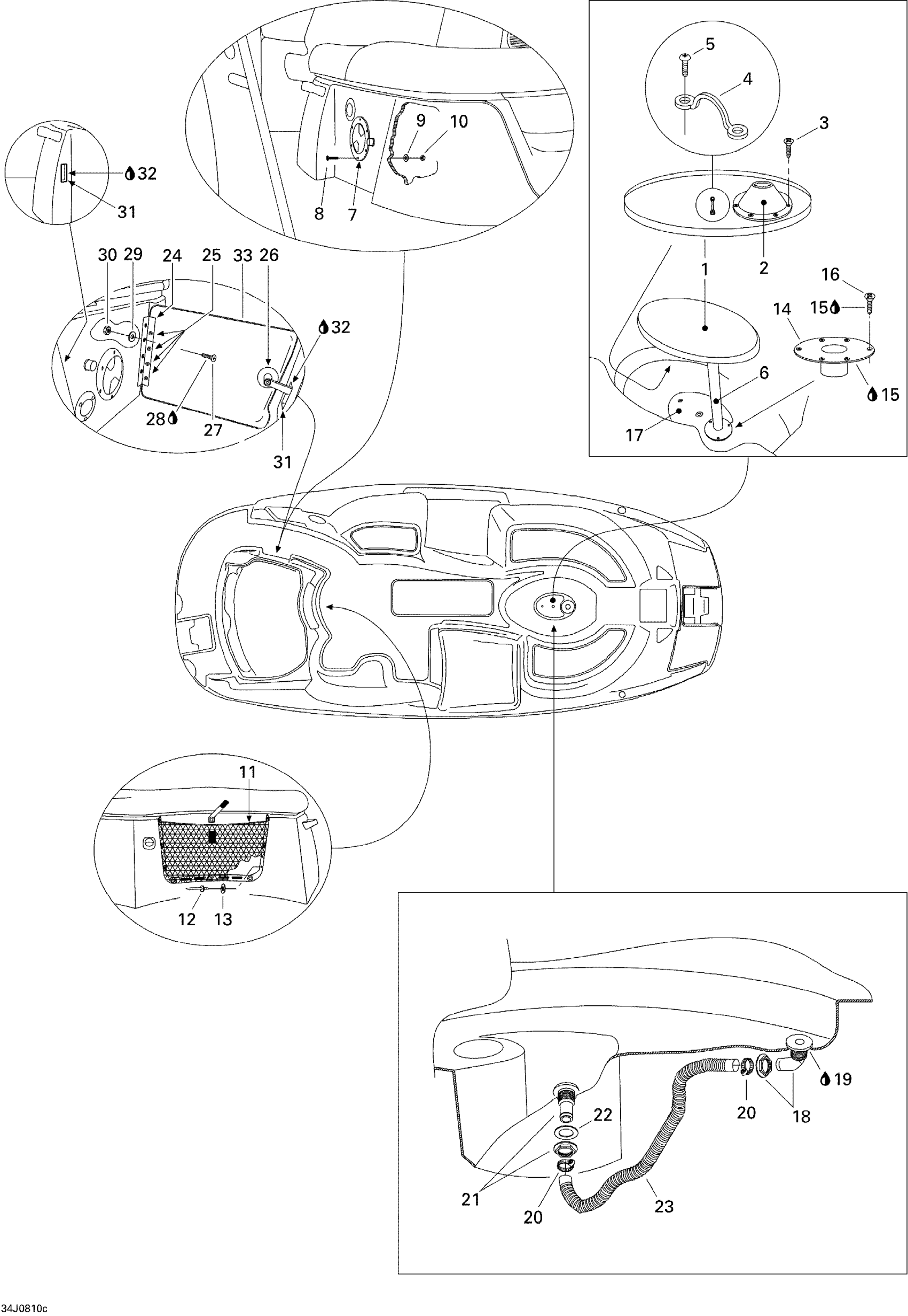

Sea-doo Islandia SE 430, 2008 09- Body And Accessories 3 Diagram
#
Description
Price
1
COCKPIT TABLE - Call your local BRP dealership
204072391
Unavailable
2
TABLE MOUNT - Call your local BRP dealership | Challenger S
204071315
Unavailable
3
TAPPING SCREW M5 X 19 - Call your local BRP dealership | Challenger S
209951960
Unavailable
4
Strap Tie
204070234
Unavailable
5
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
6
TABLE POST, LARGE - Call your local BRP dealership | Challenger S
204070634
Unavailable
7
BOTTOM PLATE - Call your local BRP dealership
204070622
Unavailable
8
PHILLIPS SCREW M4 X 20 - Call your local BRP dealership
208442060
Unavailable
9
Flat Washer 4 mm, Stainless
234042600
$1.15
10
Elastic Stop Nut M4
232541600
$1.15
11
Storage Net
204070643
Unavailable
12
Pop Rivet 3/16"
293150005
$0.52
13
Flat Washer 5 mm, Stainless
234052600
$0.77
14
TABLE BASE - Call your local BRP dealership
204071209
Unavailable
15
Silicone Sealant 51388, 300 ml
296000309
$36.99
16
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
17
FOUNTAIN COVER - Call your local BRP dealership
204070892
Unavailable
18
DRAIN FITTING 90 - Call your local BRP dealership
204071166
Unavailable
19
Silicone Sealant 51388, 300 ml
296000309
$36.99
20
Tridon Clamp
293650016
$10.99
21
Fitting
293710162
$13.49
22
GASKET - Call your local BRP dealership This part replaces 293250251.
293250006
Unavailable
23
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership
291001206
Unavailable
24
Stern Gate Hinge
204071038
Unavailable
25
Pop Rivet 1/4”
293150081
Unavailable
26
DOOR LATCH - Call your local BRP dealership
204070951
Unavailable
27
SOCKET SCREW M6 X 25 - Call your local BRP dealership
205462560
Unavailable
28
Loctite 243, 10 ml
293800060
$21.49
29
Stainless Flat Washer M6
234061600
$0.33
30
Hex. Elastic Stop Nut M6
232561600
$1.15
31
GROMMET - Call your local BRP dealership
293720099
Unavailable
32
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
33
Stern Gate
204073214
Unavailable
