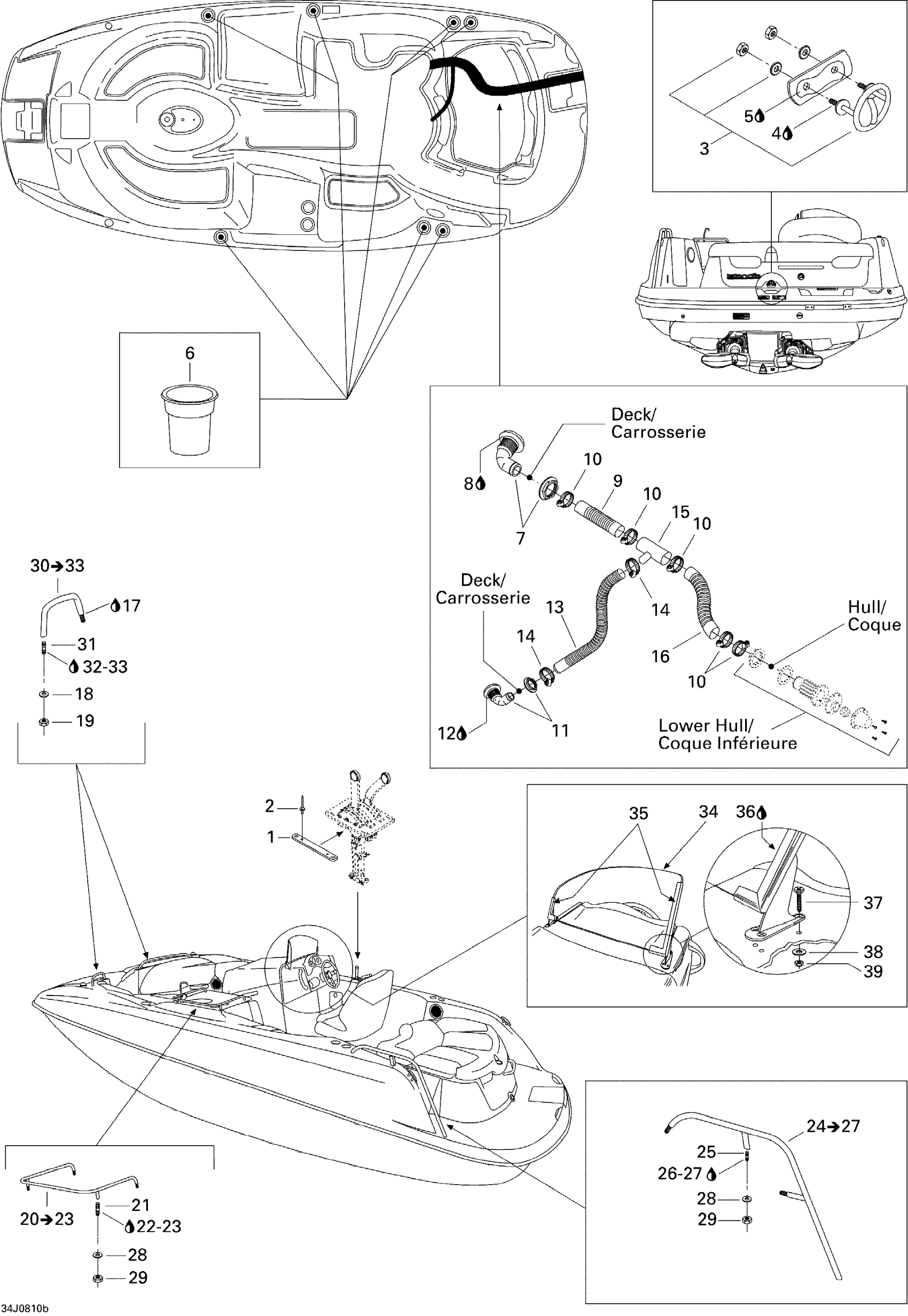

Sea-doo Islandia SE 430, 2008 09- Body And Accessories 2 Diagram
#
Description
Price
1
SHIFTER INSERT - Call your local BRP dealership
293450061
Unavailable
2
Pop Rivet 3/16"
293150013
$1.37
3
Ski Tow Hook
204070206
Unavailable
4
Loctite 271, 10 ml
293800005
$26.99
5
Silicone Sealant 51388, 300 ml
296000309
$36.99
6
CUP HOLDER - Call your local BRP dealership | STD
291000619
Unavailable
7
THRU-HULL FITTING 90 X 1-1/2 - Call your local BRP dealership
293710084
Unavailable
8
Silicone Sealant 51388, 300 ml
296000309
$36.99
9
HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership
204070560
Unavailable
10
Norma Clamp
293650074
$17.05
11
DRAIN FITTING 90 - Call your local BRP dealership
204071166
Unavailable
12
Silicone Sealant 51388, 300 ml
296000309
$36.99
13
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership
291001206
Unavailable
14
Tridon Clamp
293650016
$10.99
15
T-FITTING - Call your local BRP dealership
204071167
Unavailable
16
HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership
204070560
Unavailable
17
Silicone Sealant 51388, 300 ml
296000309
$36.99
18
Flat Washer 10 mm, Stainless
234002600
$2.22
19
HEX. ELASTIC NUT 3/8 - Call your local BRP dealership
204100032
Unavailable
20
COUNTERTOP RAIL ASS?Y - Call your local BRP dealership | Includes 20 to 23
204070608
Unavailable
21
STUD 1/4?-20 X 2? - Call your local BRP dealership
204100033
Unavailable
22
Loctite 271, 10 ml
293800005
$26.99
23
Was 293800041 Loctite Primer 7649
219704458
$39.99
24
Boarding Rail Ass'y | Includes 24 to 27
204071034
Unavailable
25
STUD 3/8?-16 X 2? - Call your local BRP dealership
204100050
Unavailable
26
Loctite 271, 10 ml
293800005
$26.99
27
Was 293800041 Loctite Primer 7649
219704458
$39.99
28
Flat Washer 8 mm, Stainless
234082600
$2.43
29
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
30
Bow Rail Ass'y | Includes 30 to 33
204073258
Unavailable
31
STUD 3/8?-16 X 2? - Call your local BRP dealership
204100050
Unavailable
32
Was 293800041 Loctite Primer 7649
219704458
$39.99
33
Loctite 271, 10 ml
293800005
$26.99
34
Front Windshield
204070858
Unavailable
35
WINDSHIELD FRAME - Call your local BRP dealership
204072364
Unavailable
36
Silicone Sealant 51388, 300 ml
296000309
$36.99
37
Phillips Screw M6 X 25
208562560
$2.32
38
Stainless Flat Washer M6
234061600
$0.33
39
Elastic Stop Nut M6
232561414
$0.55
