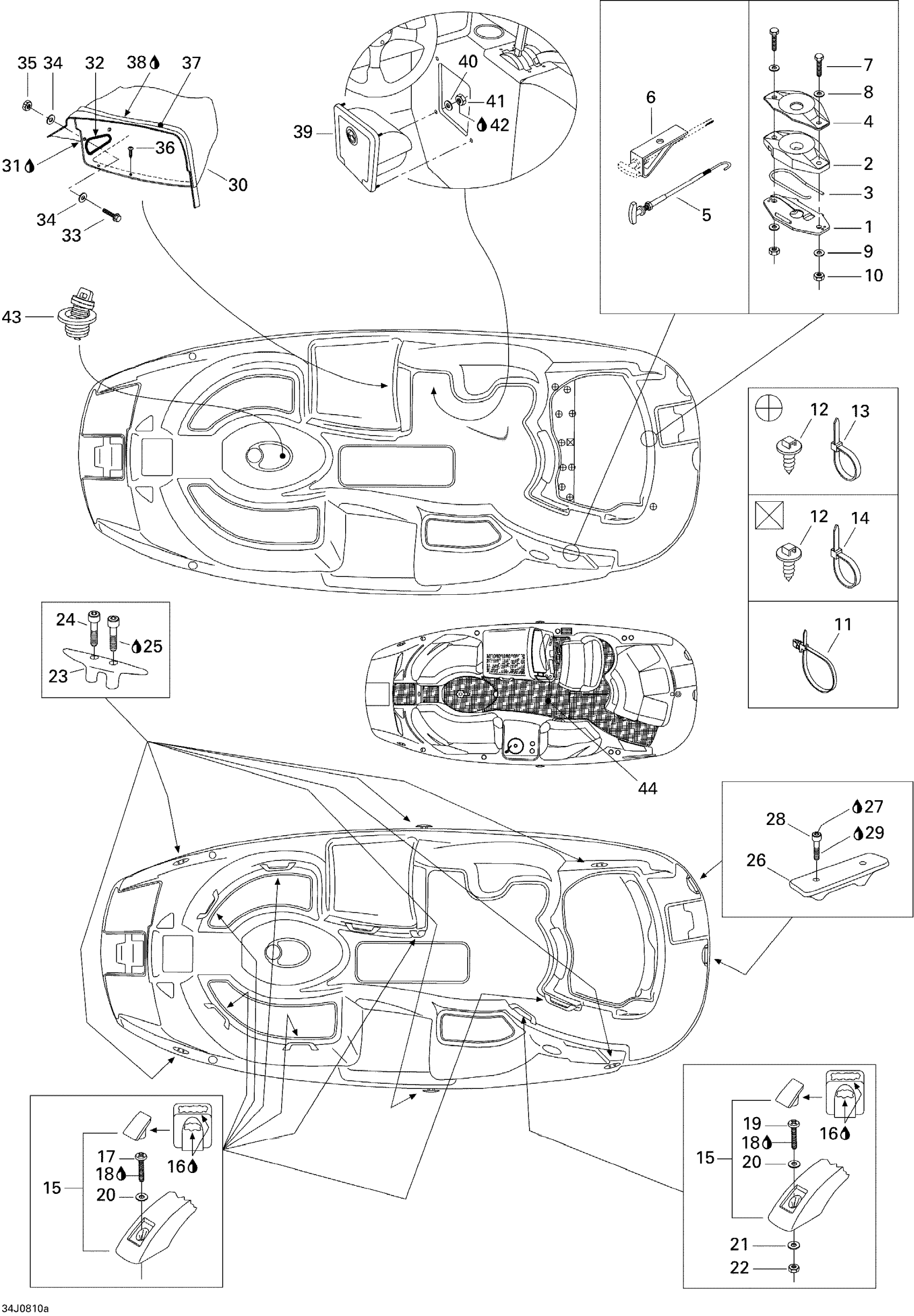

Sea-doo Islandia SE 430, 2008 09- Body And Accessories 1 Diagram
#
1
LATCH COVER - Call your local BRP dealership
204070036
Unavailable
2
LATCH BASE - Call your local BRP dealership
204070037
Unavailable
3
SPRING - Call your local BRP dealership
204070038
Unavailable
4
LATCH PROTECTOR - Call your local BRP dealership
204070952
Unavailable
5
LATCH CABLE - Call your local BRP dealership
204070049
Unavailable
6
BRACKET, ENGINE RELEASE CABLE - Call your local BRP dealership
204070886
Unavailable
7
Hex. Screw M6 X 35
207163560
$1.49
8
Stainless Flat Washer M6
234061600
$0.33
9
Flat Washer M6, Stainless
234062600
$0.77
10
Hex. Elastic Stop Nut M6
232561600
$1.15
11
TIE RAP WITH DART - Call your local BRP dealership
204130098
Unavailable
12
Mount Dart
293730040
$1.04
13
Tie-Rap 180 mm
414115200
$0.11
14
Tie Wrap 368 mm
293750008
$1.04
15
Handle Grip
204071710
Unavailable
16
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
17
SOCKET SCREW M6 X 25 - Call your local BRP dealership
205462560
Unavailable
18
Loctite 243, 10 ml
293800060
$21.49
19
SOCKET HEAD SCREW M6 X 70 - Call your local BRP dealership | STD
204100144
Unavailable
20
Stainless Flat Washer M6
234061600
$0.33
21
Flat Washer M6, Stainless
234062600
$0.77
22
Hex. Elastic Stop Nut M6
232561600
$1.15
23
CLEAT - Call your local BRP dealership | STD
204070592
Unavailable
24
SOCKET HEAD SCREW M6 X 70 - Call your local BRP dealership | STD
204100144
Unavailable
25
Loctite 243, 10 ml
293800060
$21.49
26
GRIP HANDLE, BLACK - Call your local BRP dealership
204070194
Unavailable
27
Silicone Sealant 51388, 300 ml
296000309
$36.99
28
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership
205364060
Unavailable
29
Loctite 243, 10 ml
293800060
$21.49
30
Helm Console
204073146
Unavailable
31
Silicone Sealant 51388, 300 ml
296000309
$36.99
32
SLIT CONDUIT 1 - Call your local BRP dealership This part replaces 204560132.
204130176
Unavailable
33
Hex. Screw M6 X 30
207163060
$1.48
34
Flat Washer M6, Stainless
234062600
$0.77
35
Hex. Elastic Stop Nut M6
232561600
$1.15
36
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
37
TRIM, WHITE - Call your local BRP dealership
204050048
Unavailable
38
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
39
GLOVE BOX - Call your local BRP dealership
204071084
Unavailable
40
Flat Washer 5 mm, Stainless
234052600
$0.77
41
NEEDS DESCRIPTION This part replaces 204100034.
0460000
$0.60
42
Loctite 243, 10 ml
293800060
$21.49
43
Drain Plug
204070857
Unavailable
44
Cockpit Carpet
204950107
Unavailable
