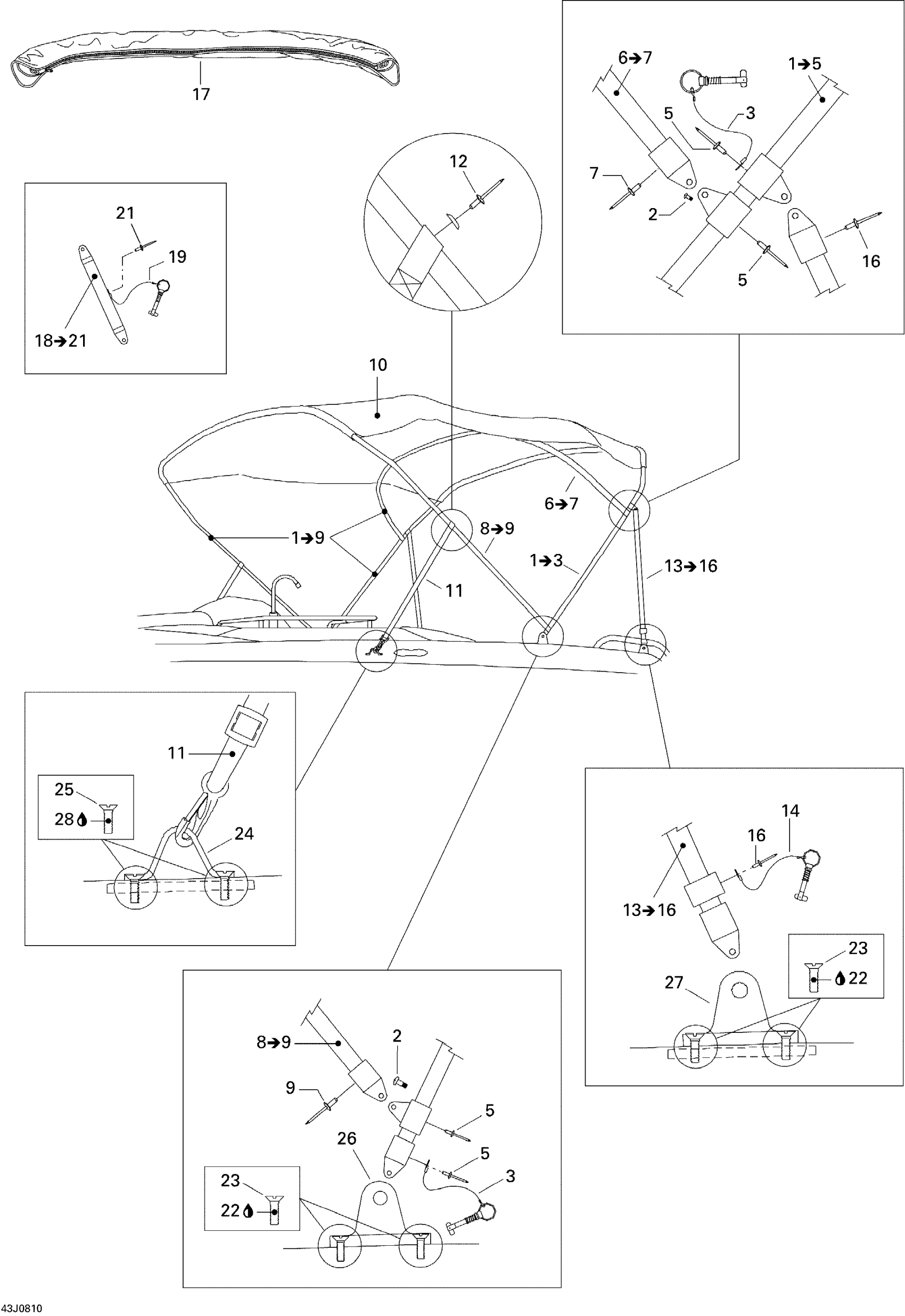

Sea-doo Islandia SE 430, 2008 09- Bimini Top Diagram
#
Description
Price
1
BIMINI TOP FRAME ASS'Y - Call your local BRP dealership | Includes 1 to 4
204072439
Unavailable
2
SCREW-PAN HD.1/4-20 SS - Call your local BRP dealership
204100066
Unavailable
3
RETAINING CABLE ASS'Y - Call your local BRP dealership
204072441
Unavailable
5
Pop Rivet 3/16"
293150039
$1.49
6
Center Frame Ass’y | Includes 6 to 7
204071102
Unavailable
7
Pop Rivet 3/16"
293150039
$1.49
8
Front Frame Ass’y | Includes 8 to 9
204071104
Unavailable
9
Pop Rivet 3/16"
293150039
$1.49
10
Bimini Canvas
204950067
Unavailable
11
BIMINI STRAP ASS?Y - Call your local BRP dealership
204072442
Unavailable
12
Pop Rivet 3/16"
293150039
$1.49
13
BRACE ASS?Y, PORT SIDE - Call your local BRP dealership | Includes 9 to 11
204072444
Unavailable
13
Brace Ass’y, Starbord | Includes 12 to 14
204072445
Unavailable
14
RETAINING CABLE ASS'Y - Call your local BRP dealership
204072441
Unavailable
16
Pop Rivet 3/16"
293150039
$1.49
17
BIMINI COVER - Call your local BRP dealership
204950068
Unavailable
18
STORAGE SUPPORT ASS?Y - Call your local BRP dealership | Includes 15 to 17
204072446
Unavailable
19
RETAINING CABLE ASS'Y - Call your local BRP dealership
204072441
Unavailable
21
Pop Rivet 3/16"
293150039
$1.49
22
Loctite 243, 10 ml
293800060
$21.49
23
PHILLIPS SCREW M5 X 30 - Call your local BRP dealership
208453060
Unavailable
24
Strap Tie
204070234
Unavailable
25
Phillips Screw M4 X 30
208443060
$1.48
26
BIMINI BRACKET - Call your local BRP dealership
204070910
Unavailable
27
BIMINI BRACKET - Call your local BRP dealership
204071011
Unavailable
28
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership
219704457
$54.99
