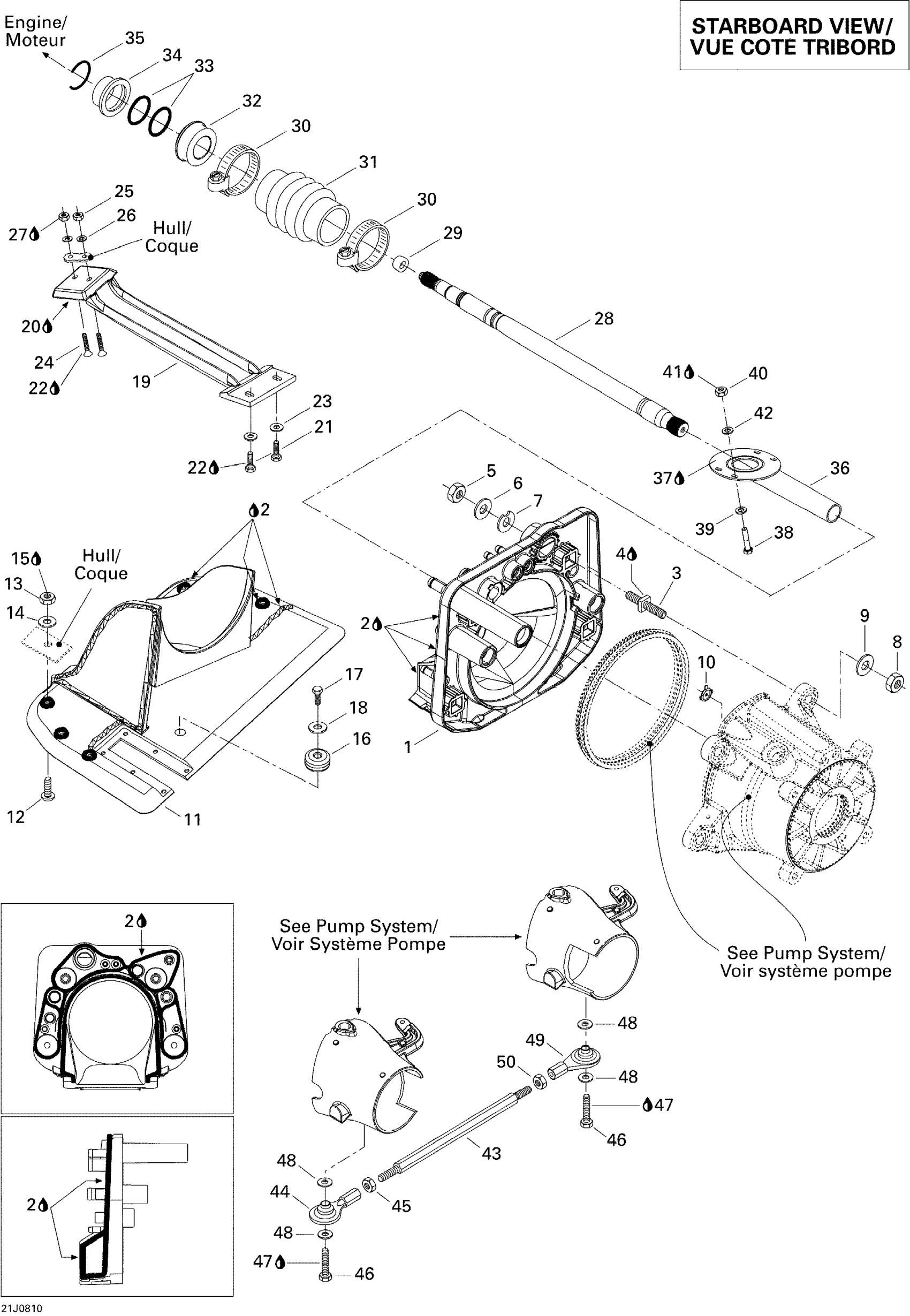

Sea-doo Islandia SE 430, 2008 Propulsion Diagram

#

Description
Price

1

PUMP SUPPORT - Call your local BRP dealership

204120333

Unavailable

2

Instant Gasket

219701421

$51.99

3

Square Stud

250300022

$20.99

4

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

5

Elastic Stop Nut M10, Brass

232501200

$2.64

6

Flat Washer 10 mm, Stainless

234002600

$2.22

7

Shim 0.3 mm

272000053

$11.49

7

NEEDS DESCRIPTION This part replaces 204120067.

0460011

$10.49

8

Elastic Stop Nut M10, Brass

232501200

$2.64

9

Flat Washer

211200051

$1.68

10

Reducer This part replaces 291001887.

291004649

$17.49

11

PLATE_RIDE - Call your local BRP dealership

204120335

Unavailable

11

PLATE_RIDE - Call your local BRP dealership

204120334

Unavailable

12

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

Unavailable

13

Hex. Elastic Stop Nut M6

232561600

$1.15

14

Flat Washer M6, Stainless

234062600

$0.77

15

Silicone Sealant 51388, 300 ml

296000309

$36.99

16

Anode Zinc

271001813

$18.99

17

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

18

Stainless Flat Washer M6

234061600

$0.33

19

FIXED GRATE - Call your local BRP dealership

204120336

Unavailable

20

Instant Gasket

219701421

$51.99

19

GRATE-STBD,PAINTED This part replaces 204120337.

0462118

$209.99

21

Hex. Screw M6 X 16

207161660

$1.59

22

Loctite 271, 10 ml

293800005

$26.99

23

Stainless Flat Washer M6

234061600

$0.33

24

Phillips Screw M6 X 35 | W/O Weedless System

208563560

$2.00

25

Hex. Elastic Stop Nut M6

232561600

$1.15

26

Flat Washer M6, Stainless

234062600

$0.77

27

Silicone Sealant 51388, 300 ml

296000309

$36.99

28

Drive Shaft

204120284

$476.99

29

Drive Shaft Plug

272000173

$8.68

30

Norma Clamp

293650077

$7.41

31

Bellows

272000183

$28.99

32

Carbon Ring Kit This part replaces 272000177.

295501200

$77.99

33

O-Ring

293300044

$1.05

34

Carbon Ring Kit This part replaces 272000177.

295501200

$77.99

35

C-Clip

271001575

$6.11

36

SHAFT GUARD - Call your local BRP dealership

204120316

Unavailable

37

Instant Gasket

219701421

$51.99

38

Phillips Screw M5 X 35

208653560

$2.22

39

Flat Washer M5, Stainless

234051600

$0.77

40

Hex. Elastic Nut M5 | X

232551600

$1.15

41

Silicone Sealant 51388, 300 ml

296000309

$36.99

42

Flat Washer 5 mm, Stainless

234052600

$0.77

43

LINK ROD - Call your local BRP dealership

204120255

Unavailable

44

BALL JOINT - Call your local BRP dealership

204120075

Unavailable

45

HEX. NUT 5/16-24 - Call your local BRP dealership

211100034

Unavailable

46

Hex. Screw M6 X 25

207162560

$1.47

47

Loctite 243, 10 ml

293800060

$21.49

48

Stainless Flat Washer M6

234061600

$0.33

49

BALL JOINT - Call your local BRP dealership

204120074

Unavailable

50

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

Unavailable
