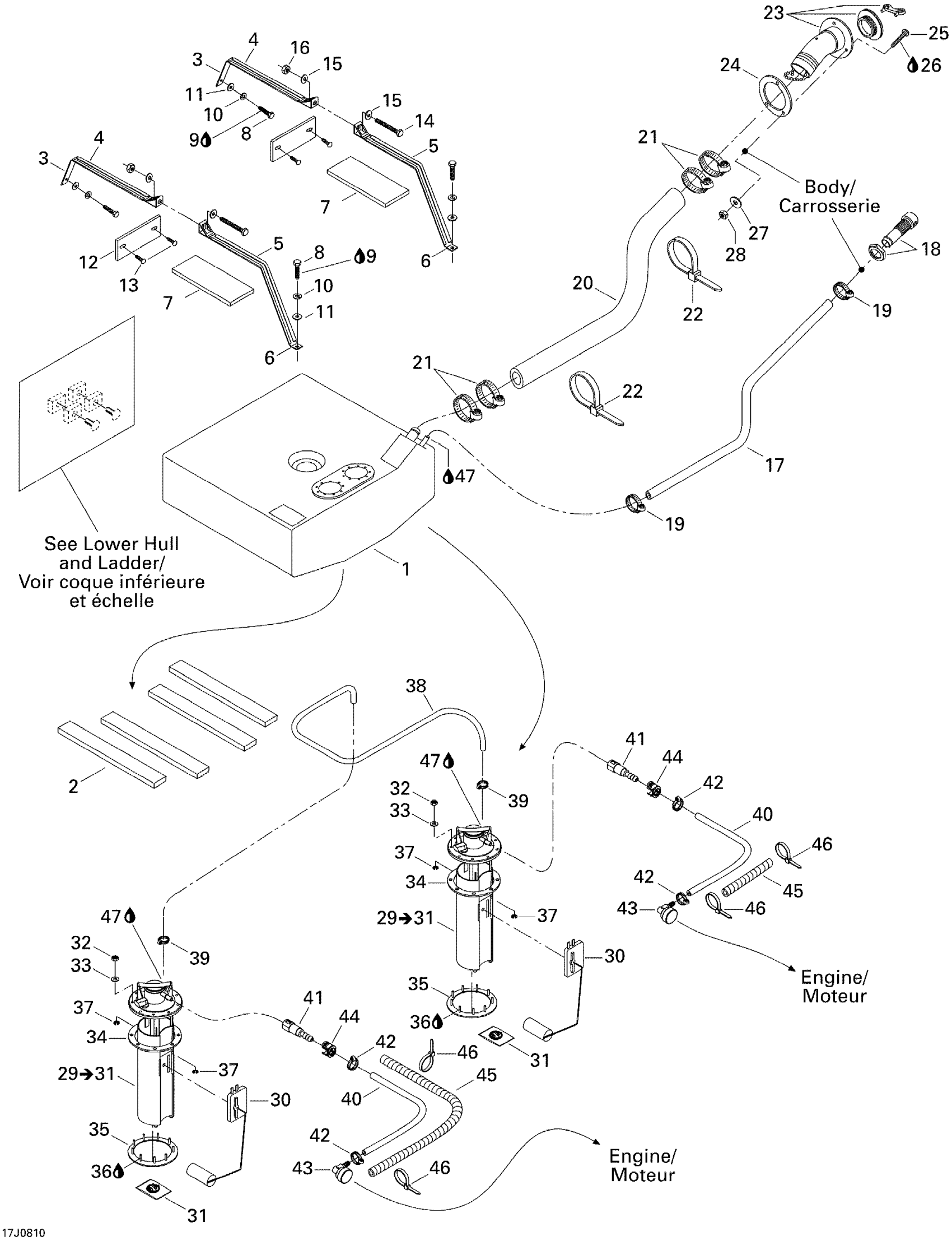

Sea-doo Islandia SE 430, 2008 Fuel System Diagram

#

Description
Price

1

FUEL TANK 51 GAL - C/U - Call your local BRP dealership | Includes 10 to 10d This part replaces 275500860.

204560467

Unavailable

2

PROTECTOR PAD - Call your local BRP dealership

293830044

Unavailable

3

FUEL TANK STRAP - Call your local BRP dealership

204560235

Unavailable

4

PROTECTOR PAD - Call your local BRP dealership

204560115

Unavailable

5

PROTECTOR PAD - Call your local BRP dealership

204560185

Unavailable

6

FUEL TANK STRAP - Call your local BRP dealership

204560181

Unavailable

7

NEOPRENE PAD - Call your local BRP dealership

204560191

Unavailable

8

Hex. Screw M8 X 30

207183060

$1.30

9

Loctite 271, 10 ml

293800005

$20.77

10

Lock Washer 8 mm, Stainless

234181601

$0.46

11

Flat Washer 8 mm, Stainless

234082600

$1.98

12

MUFFLER RUBBER PAD - Call your local BRP dealership

204060702

Unavailable

13

Black, Dart

293730006

$0.81

14

HEX. SCREW M8 X 80 - Call your local BRP dealership

207188060

Unavailable

15

Flat Washer 8 mm, Stainless

234082600

$1.98

16

Hex. Elastic Nut M8

232581600

$1.25

17

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

18

FUEL VENT - Call your local BRP dealership

204560126

Unavailable

19

NORMA CLAMP - Call your local BRP dealership

293650069

Unavailable

20

FILLER NECK HOSE - Call your local BRP dealership

204560377

Unavailable

21

NORMA CLAMP - Call your local BRP dealership

293650174

Unavailable

22

Tie-Rap 180 mm

414115200

$0.09

23

Filler Neck Ass'y

204560180

Unavailable

24

GASKET - Call your local BRP dealership

204560119

Unavailable

25

Phillips Screw M5 X 3

208553060

Unavailable

26

Loctite 271, 10 ml

293800005

$20.77

27

Flat Washer M5, Stainless

234051600

$0.64

28

Hex. Elastic Nut M5 | X

232551600

$0.91

29

FUEL PUMP MODULE ASS'Y - Call your local BRP dealership | Includes 47 to 49

270600056

Unavailable

30

SENSOR LEVER - Call your local BRP dealership

270600051

Unavailable

31

Fuel Filter, Bosch

219700368

$31.82

32

Elastic Stop Nut 5 mm

232551200

$1.22

33

Flat Washer 5 mm, Stainless

234052400

$2.34

34

Gasket

293250088

$10.95

35

C-Ring, 9 Studs

275500679

$73.10

36

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

37

Circlip 5 mm

293370002

$5.10

38

HOSE 1/4 - Call your local BRP dealership

204560178

Unavailable

39

Tridon Gear Clamp

293650170

$1.74

40

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable

41

CONNECTOR BOX - Call your local BRP dealership

275500428

Unavailable

42

Torro Hose Clamp

204130212

Unavailable

43

Elbow Fitting 90°

293710105

$10.58

44

STOPPER CONNECTOR - Call your local BRP dealership

275500429

Unavailable

45

SLIT CONDUIT, METER - Call your local BRP dealership

204550028

Unavailable

46

Tie Wrap 142 mm

293750002

$0.88

47

Not Available As Spare Part - Friction Washer

Unavailable
