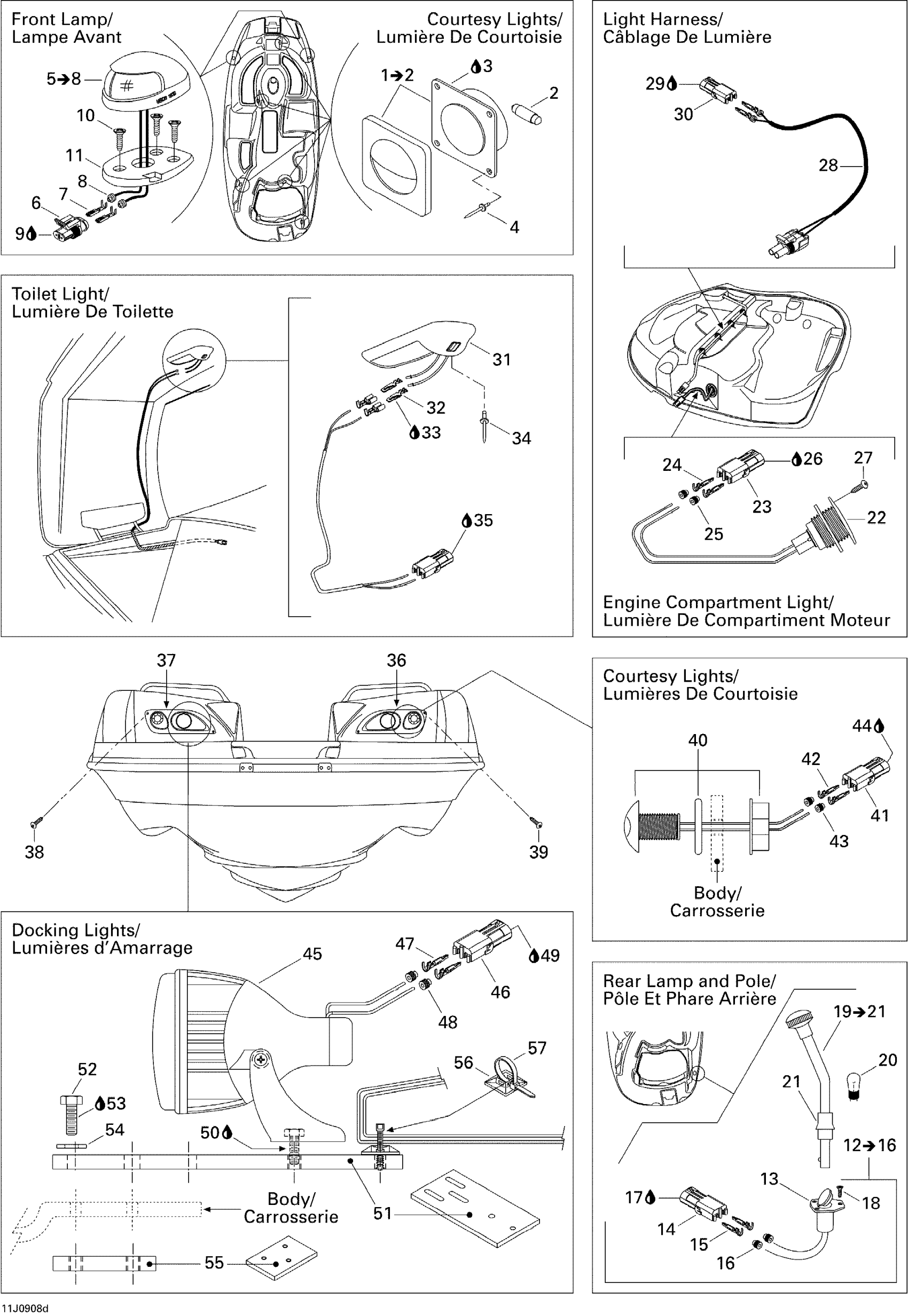

Sea-doo Islandia SE 2 x 215 SCIC, 2009 Electrical Accessories 4 Diagram

#

Description
Price

1

Courtesy Light Ass'y | Includes 29 to 30

204470026

$47.49

2

BULB - Call your local BRP dealership

204470081

Unavailable

3

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

4

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

5

Navigation Light, Red, Port Side | Includes 5 to 8

204470409

Unavailable

5

NAVIGATION LIGHT, GREEN, STARBOARD - Call your local BRP dealership | Includes 5 to 8

204470407

Unavailable

6

Female Housing, 2 Circuits

409209500

$15.27

7

Female Terminal

278001014

$3.28

8

Wire Seal

278001013

$3.28

9

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

10

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

11

FRONT LAMP SUPPORT - Call your local BRP dealership

204470072

Unavailable

12

Rear Lamp Base Ass'y | Includes 12 to 16

204471177

Unavailable

13

REAR LIGHT BASE - Call your local BRP dealership

204470990

Unavailable

14

Female Housing, 2 Circuits

278000217

$9.59

15

Male Terminal | XT Models

278000222

$3.19

16

Wire Seal

278000218

$4.39

17

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

18

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

19

Rear Lamp Pole | Includes 19 to 21

204470816

Unavailable

20

Bulb

204470053

Unavailable

21

COLLAR - Call your local BRP dealership

204470350

Unavailable

22

Engine Compartment Light

204470412

Unavailable

23

Female Housing, 2 Circuits

278000217

$9.59

24

Male Terminal | XT Models

278000222

$3.19

25

Wire Seal

278000218

$4.39

26

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

27

Hex. Flange Screw K40 X 16

241141660

$1.48

28

LIGHT HARNESS - Call your local BRP dealership

204470551

Unavailable

29

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

30

Female Housing, 2 Circuits

278000217

$9.59

31

TOILET LIGHT ASS?Y - Call your local BRP dealership

204470414

Unavailable

32

Male Terminal

204470553

Unavailable

33

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

34

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

35

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

36

Light Fascia, Port Side

204470620

Unavailable

37

Light Fascia, Starboard

204470619

Unavailable

38

Phillips Tapping Screw

204100058

$0.66

39

Phillips Tapping Screw

204100058

$0.66

40

Courtesy Light

204470514

Unavailable

41

Female Housing, 2 Circuits

278000217

$9.59

42

Male Terminal | XT Models

278000222

$3.19

43

Wire Seal

278000218

$4.39

44

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

45

DOCKING LIGHT - Call your local BRP dealership

204470512

Unavailable

46

Female Housing, 2 Circuits

278000217

$9.59

47

Male Terminal | XT Models

278000222

$3.19

48

Wire Seal

278000218

$4.39

49

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

50

Loctite 243, 10 ml

293800060

$21.49

51

UPPER PLATE - Call your local BRP dealership

204470536

Unavailable

52

Hex. Screw M6 X 30

207163060

$1.48

53

Loctite 243, 10 ml

293800060

$21.49

54

Flat Washer M6, Stainless

234062600

$0.77

55

LOWER PLATE - Call your local BRP dealership

204470537

Unavailable

56

Mount Dart

293730040

$1.04

57

Tie Wrap 142 mm

293750002

$1.25
