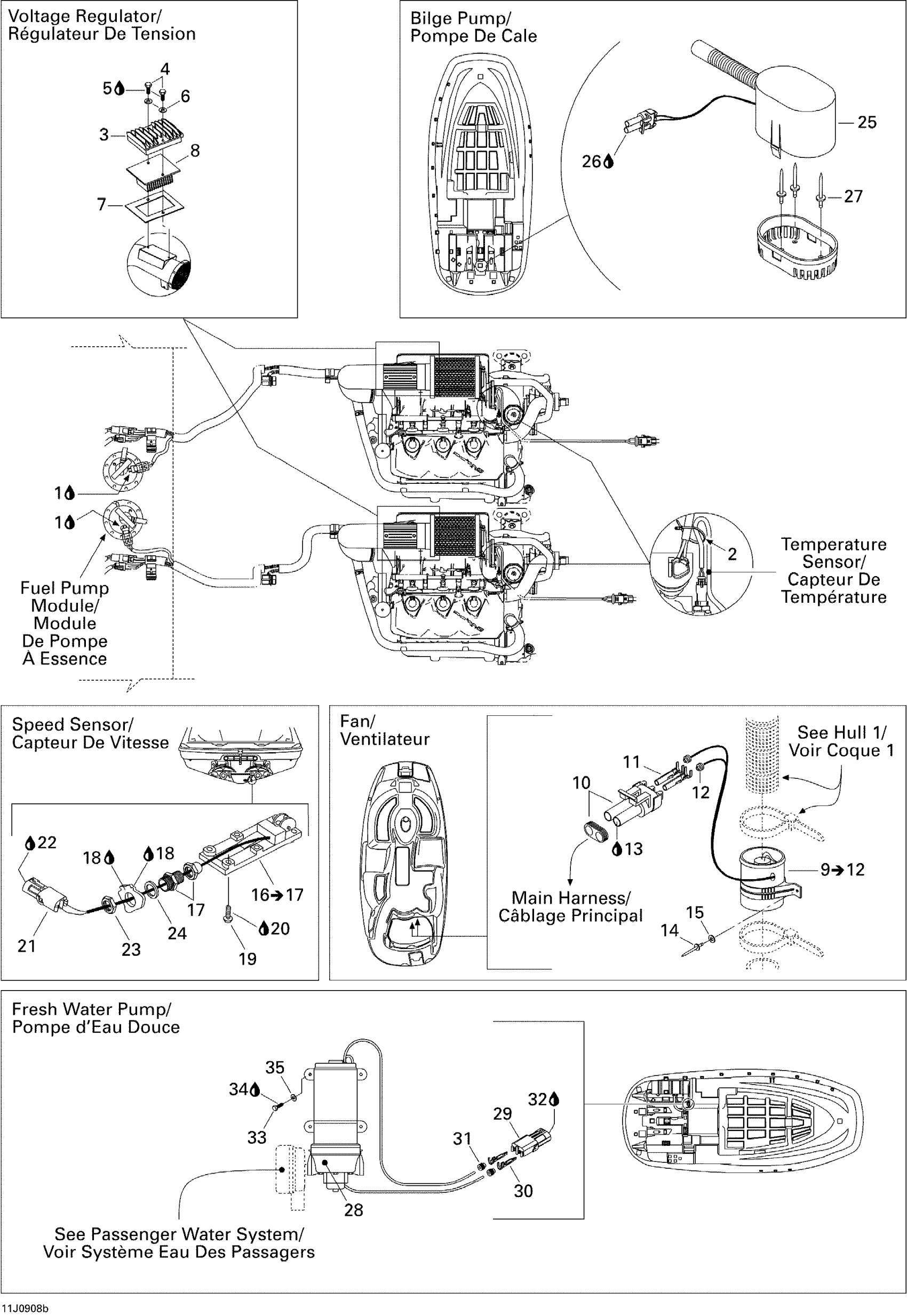

Sea-doo Islandia SE 2 x 215 SCIC, 2009 Electrical Accessories 2 Diagram

#

Description
Price

1

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

2

Tie Wrap 142 mm

293750002

$0.88

3

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

4

HEX. SCREW 1/4-20 X 1 - Call your local BRP dealership | Without Catalyst

204100226

Unavailable

5

Loctite 243, 10 ml

293800060

$20.77

6

Lock Washer 1/4”

211200025

$1.26

7

SEAL - Call your local BRP dealership

204471293

Unavailable

8

RECTIFIER HEAT SINK - Call your local BRP dealership

204471296

Unavailable

9

Fan Ass'y | Includes 44 to 47

204470108

$114.37

10

Male Connector, 2 Circuits

278000220

$11.02

11

Female Terminal

278000223

$2.55

12

Wire Seal

278000218

$3.48

13

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

14

Pop Rivet 3/16"

293150008

$0.40

15

Flat Washer 5 mm, Stainless

234052600

$0.64

16

Speed Sensor Ass'y | Includes 19 to 20

204471199

Unavailable

17

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

18

Silicone Sealant 51388, 300 ml

296000309

$35.72

19

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208551060

Unavailable

20

Loctite 243, 10 ml

293800060

$20.77

21

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

22

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

23

LOCKING NUT - Call your local BRP dealership

293710032

Unavailable

24

SEAL WASHER - Call your local BRP dealership

278000416

Unavailable

25

Bilge Pump

204471431

Unavailable

26

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

27

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

28

FRESH WATER PUMP R4305-144K - Call your local BRP dealership

204470524

Unavailable

29

Female Housing, 2 Circuits

278000217

$7.59

30

Male Terminal | XT Models

278000222

$2.55

31

Wire Seal

278000218

$3.48

32

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

33

Hex. Screw M5 X 20

207152060

$1.22

34

Loctite 243, 10 ml

293800060

$20.77

35

Flat Washer M5, Stainless

234051600

$0.64
