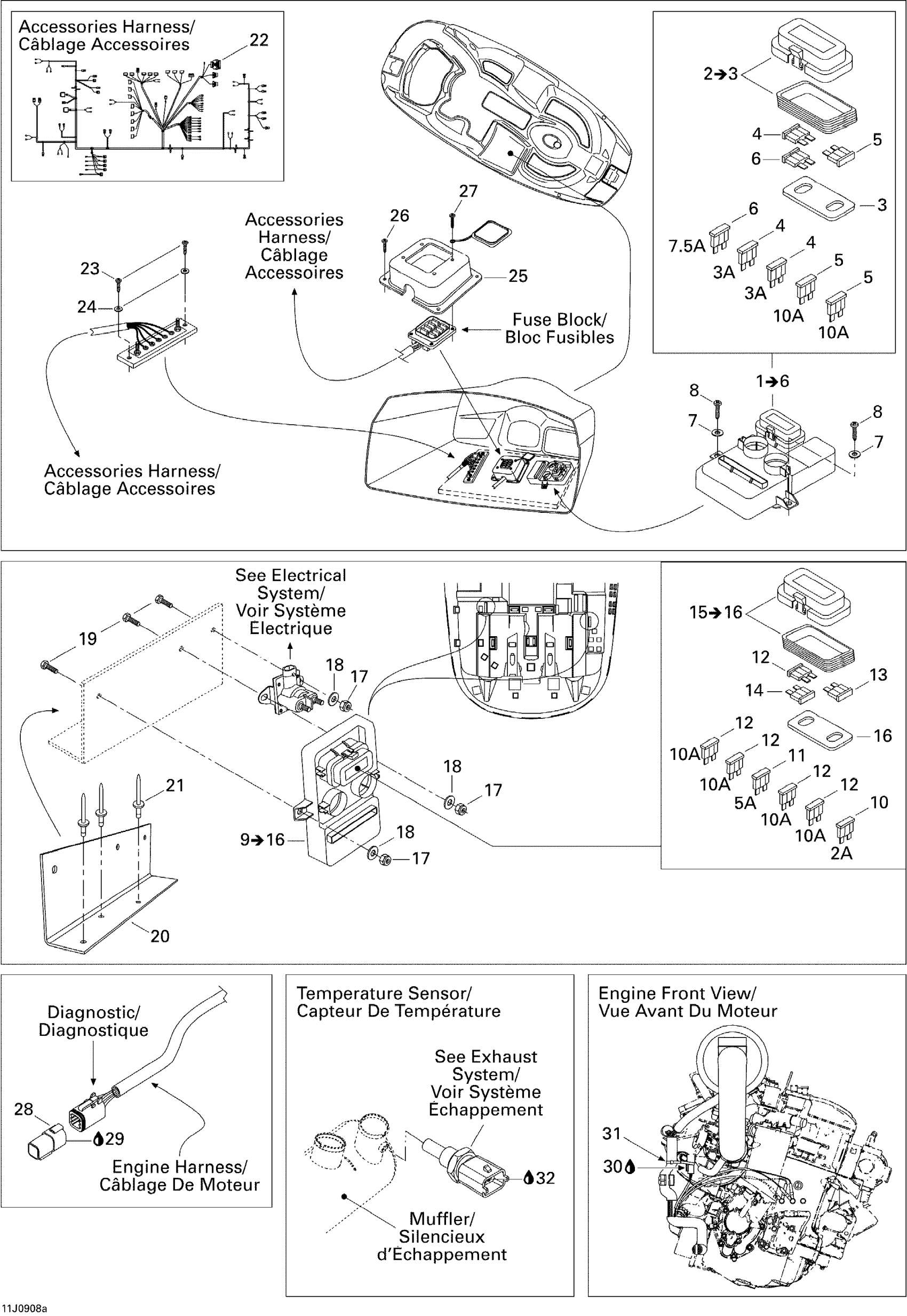

Sea-doo Islandia SE 2 x 215 SCIC, 2009 Electrical Accessories 1 Diagram

#

Description
Price

1

Twin Engine Interface | Includes 1 to 6

204471373

Unavailable

2

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

$36.99

3

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

4

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

5

Fuse, 10 Amperes | North America

278001197

$2.21

6

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

7

Flat Washer M6, Stainless

234062600

$0.77

8

TAPPING PHILLIPS SCREW #12 X 3/4 - Call your local BRP dealership

204100203

Unavailable

9

FUSE BLOCK - Call your local BRP dealership | Includes 17 to 24

204470770

Unavailable

10

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

11

Fuse, 5 Amperes | CE

278000344

$3.28

12

Fuse, 10 Amperes | North America

278001197

$2.21

13

Fuse, 20 Amperes

409003900

$3.28

14

Fuse, 30 Amperes

410917200

$3.28

15

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

$36.99

16

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

17

Hex. Elastic Stop Nut M6

232561600

$1.15

18

Flat Washer M6, Stainless

234062600

$0.77

19

Hex. Forming Screw M6 X 20

207162060

$1.29

20

BRACKET - Call your local BRP dealership

204471071

Unavailable

21

Avdel Rivet 3/16"

293150037

$0.56

22

Accessories Harness

204471331

Unavailable

23

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

24

Flat Washer 4 mm, Stainless

234041600

$1.15

25

FUSE BLOCK SUPPORT - Call your local BRP dealership

204471274

Unavailable

26

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

27

Pan Head Screw 10-32 X 1/2"

204100220

$2.51

28

Diagnostic Connector

278002704

$19.49

29

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

30

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

31

Tie-Rap 180 mm

414115200

$0.11

32

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99
