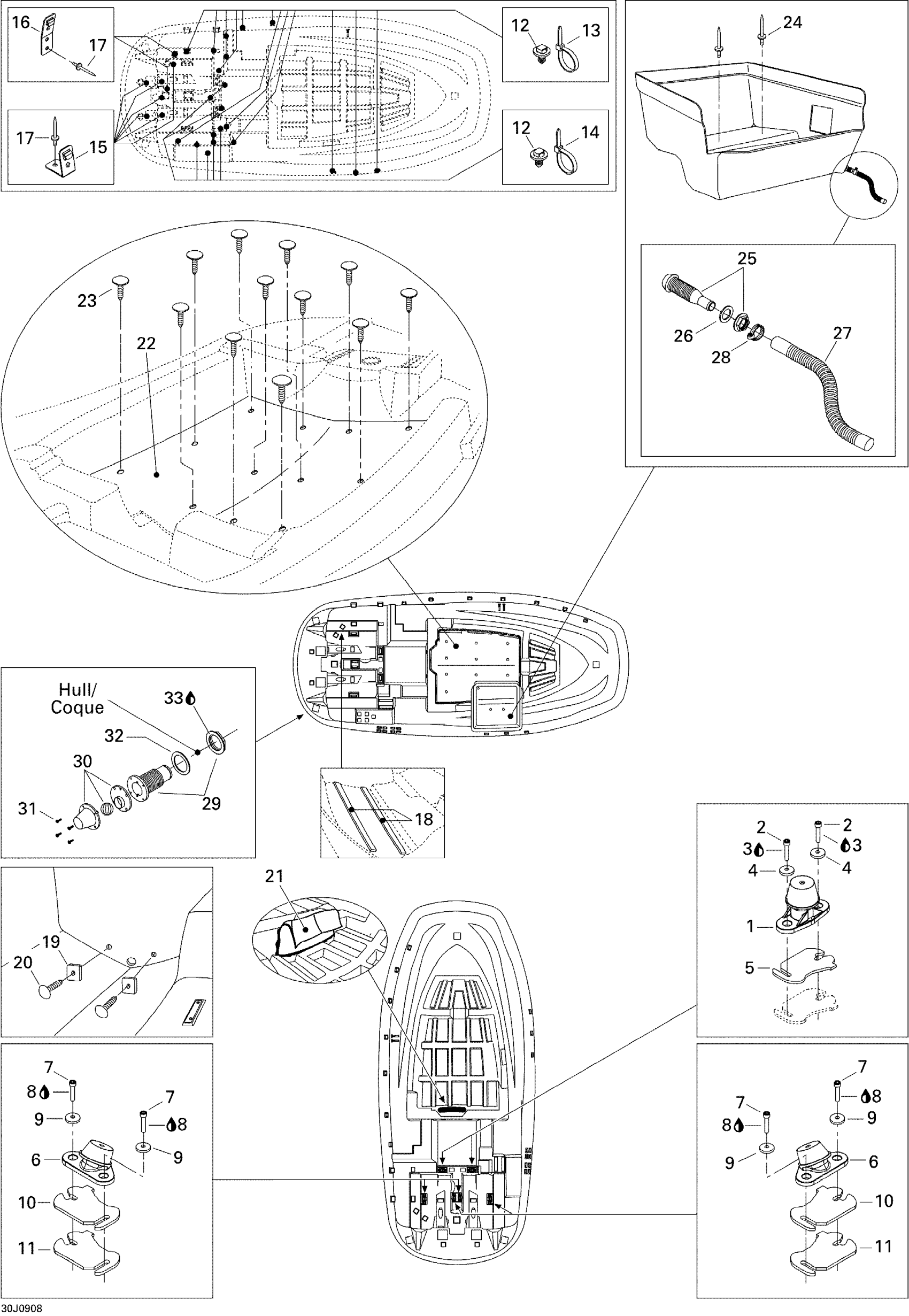

Sea-doo Islandia SE 2 x 215 SCIC, 2009 Lower Hull Diagram

#

Description
Price

1

Engine Support Ass'y

270001096

$97.99

2

Socket Head Screw M8 X 45

205084560

$3.59

3

Loctite 243, 10 ml

293800060

$21.49

4

Cone Washer

250200018

$5.61

5

Shim 0.3 mm - Call your local BRP dealership

204250048

Unavailable

6

Engine Support Ass'y

270001081

$109.99

7

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

8

Loctite 243, 10 ml

293800060

$21.49

9

Cone Washer

250200018

$5.61

10

SHIM 0.3 MM - Call your local BRP dealership

270000445

Unavailable

11

Shim 1.3 mm

270000762

$12.99

12

Mount Dart

293730040

$1.04

13

Tie-Rap 180 mm

414115200

$0.11

14

Tie Wrap 368 mm

293750008

$1.04

15

Strap Clip 90°

204060017

Unavailable

16

Strap Clip

293850030

$11.12

17

Avdel Rivet 3/16"

293150037

$0.56

18

PROTECTOR PAD - Call your local BRP dealership

204560115

Unavailable

19

RUBBER PAD - Call your local BRP dealership

204060684

Unavailable

20

Black, Dart

293730006

$0.99

21

CARPET, CENTER STORAGE - Call your local BRP dealership

204061087

Unavailable

22

Storage Liner

204060577

Unavailable

23

Black, Dart

293730006

$0.99

24

Pop Rivet 3/16”

204100051

Unavailable

25

Fitting

293710162

$13.49

26

GASKET - Call your local BRP dealership This part replaces 293250251.

293250006

Unavailable

27

BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership

291001206

Unavailable

28

Tridon Clamp

293650016

$10.99

29

THRU HULL FITTING - Call your local BRP dealership

204060071

Unavailable

30

SCUPPER VALVE - Call your local BRP dealership

204060188

Unavailable

31

PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown

211000180

Unavailable

32

GASKET - Call your local BRP dealership

292800106

Unavailable

33

Silicone Sealant 51388, 300 ml

296000309

$36.99
