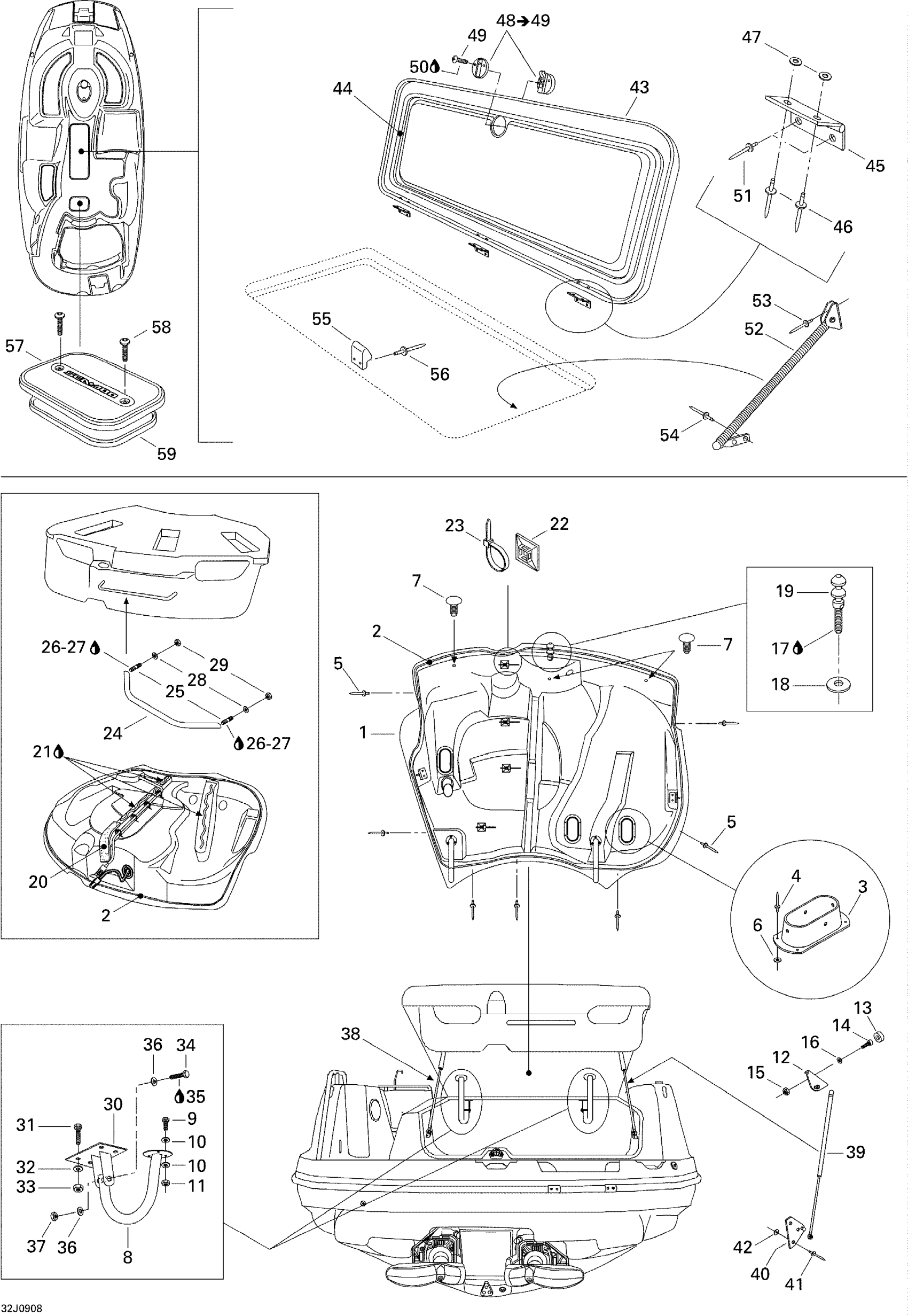

Sea-doo Islandia SE 2 x 215 SCIC, 2009 Engine Compartment And Central Cover Diagram

#

Description
Price

1

Engine Cover

204073312

Unavailable

2

D-SEAL RUBBER - Call your local BRP dealership

204130083

Unavailable

3

Ventilator Adaptor

204071540

Unavailable

4

Pop Rivet 1/8”

293150015

$0.40

5

Pop Rivet 3/16"

293150013

$1.37

6

Flat Washer M3, Stainless

234032600

$0.55

7

Black Dart

293730014

$0.99

8

ENGINE COVER HINGE - Call your local BRP dealership

204070785

Unavailable

9

Hex. Screw M6 X 45

207164560

$1.89

10

Flat Washer M6, Stainless

234062600

$0.77

11

Hex. Elastic Stop Nut M6

232561600

$1.15

12

Shock Bracket

204073074

$27.99

13

BUMPER PAD - Call your local BRP dealership

204073815

Unavailable

14

SOCKET HEAD SCREW M5 X 50 - Call your local BRP dealership

205455060

Unavailable

15

Hex. Elastic Nut M5 | X

232551600

$1.15

16

Flat Washer 5 mm, Stainless

234052600

$0.77

17

Loctite 243, 10 ml

293800060

$21.49

18

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

19

DOUBLE LATCH STUD - Call your local BRP dealership

204130052

Unavailable

20

FOAM 2-1/2 X 2-1/2 X 18.5 - Call your local BRP dealership

204070903

Unavailable

21

Silicone Sealant 51388, 300 ml

296000309

$36.99

22

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

23

Tie Wrap 142 mm

293750002

$1.25

24

GRAB HANDLE - Call your local BRP dealership

204071122

Unavailable

25

STUD 3/8?-16 X 2? - Call your local BRP dealership

204100050

Unavailable

26

Loctite 271, 10 ml

293800005

$26.99

27

Was 293800041 Loctite Primer 7649

219704458

$39.99

28

Flat Washer 10 mm, Stainless

234002600

$2.22

29

HEX. ELASTIC NUT 3/8 - Call your local BRP dealership

204100032

Unavailable

30

HINGE BRACKET, ENGINE COVER - Call your local BRP dealership

204070925

Unavailable

31

Hex. Screw M6 X 40

207164060

$3.38

32

Stainless Flat Washer M6

234061600

$0.33

33

Hex. Elastic Stop Nut M6

232561600

$1.15

34

HEX. SCREW 3/8?-16 X 2-1/2? - Call your local BRP dealership

204100053

Unavailable

35

Loctite 243, 10 ml

293800060

$21.49

36

Flat Washer 10 mm, Stainless

234002600

$2.22

37

HEX. ELASTIC NUT 3/8 - Call your local BRP dealership

204100032

Unavailable

38

GAS SHOCK - Call your local BRP dealership

204071923

Unavailable

39

GAS SHOCK - Call your local BRP dealership

204071924

Unavailable

40

SHOCK BRACKET - Call your local BRP dealership

204073065

Unavailable

41

Pop Rivet 3/16"

293150043

$2.09

42

Flat Washer M5, Stainless

234051600

$0.77

43

CENTER COVER - Call your local BRP dealership

204073144

Unavailable

44

TRAY SEAL, METER - Call your local BRP dealership

293200032

Unavailable

45

HINGE - Call your local BRP dealership

204072601

Unavailable

46

Avdel Rivet 3/16"

293150037

$0.56

47

Flat Washer M5, Stainless

234051600

$0.77

48

LATCH ASS'Y - Call your local BRP dealership

204073347

Unavailable

49

Not Available As Spare Part - Friction Washer

Unavailable

50

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

51

Avdel Rivet 3/16"

293150037

$0.56

52

SPRING SEAT - Call your local BRP dealership

204000071

Unavailable

53

Pop Rivet 3/16"

204000081

$1.49

54

Pop Rivet 3/16"

293150043

$2.09

55

LATCH BRACKET - Call your local BRP dealership

204070050

Unavailable

56

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

57

Access Door

204072462

Unavailable

58

Socket Screw M6 X 40

205464060

$2.22

59

TRAY SEAL, METER - Call your local BRP dealership

293200032

Unavailable
