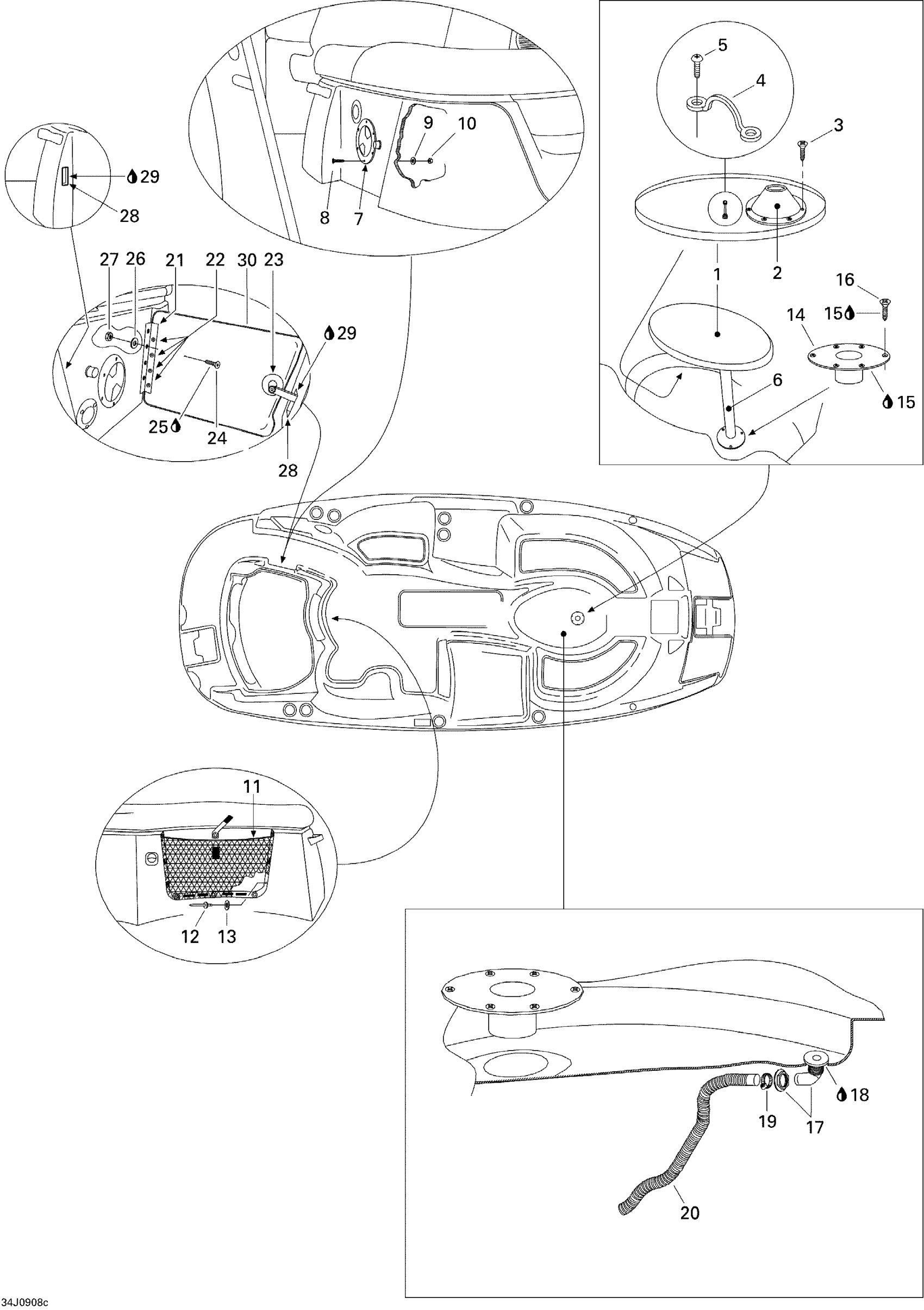

Sea-doo Islandia SE 2 x 215 SCIC, 2009 Body And Accessories 3 Diagram

#

Description
Price

1

COCKPIT TABLE - Call your local BRP dealership

204072391

Unavailable

2

TABLE MOUNT - Call your local BRP dealership | Challenger S

204071315

Unavailable

3

TAPPING SCREW M5 X 19 - Call your local BRP dealership | Challenger S

209951960

Unavailable

4

Strap Tie

204070234

Unavailable

5

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

6

TABLE POST, LARGE - Call your local BRP dealership | Challenger S

204070634

Unavailable

7

BOTTOM PLATE - Call your local BRP dealership

204070622

Unavailable

8

PHILLIPS SCREW M4 X 20 - Call your local BRP dealership

208442060

Unavailable

9

Flat Washer 4 mm, Stainless

234042600

$1.15

10

Elastic Stop Nut M4

232541600

$1.15

11

Storage Net

204070643

Unavailable

12

Pop Rivet 3/16"

293150005

$0.52

13

Flat Washer 5 mm, Stainless

234052600

$0.77

14

TABLE BASE - Call your local BRP dealership

204071209

Unavailable

15

Silicone Sealant 51388, 300 ml

296000309

$36.99

16

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

17

DRAIN FITTING 90 - Call your local BRP dealership

204071166

Unavailable

18

Silicone Sealant 51388, 300 ml

296000309

$36.99

19

Tridon Clamp

293650016

$10.99

20

BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership

291001206

Unavailable

21

Stern Gate Hinge

204071038

Unavailable

22

Pop Rivet 1/4”

293150081

Unavailable

23

DOOR LATCH - Call your local BRP dealership

204070951

Unavailable

24

SOCKET SCREW M6 X 25 - Call your local BRP dealership

205462560

Unavailable

25

Loctite 243, 10 ml

293800060

$21.49

26

Stainless Flat Washer M6

234061600

$0.33

27

Hex. Elastic Stop Nut M6

232561600

$1.15

28

GROMMET - Call your local BRP dealership

293720099

Unavailable

29

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

30

Stern Gate

204073214

Unavailable
