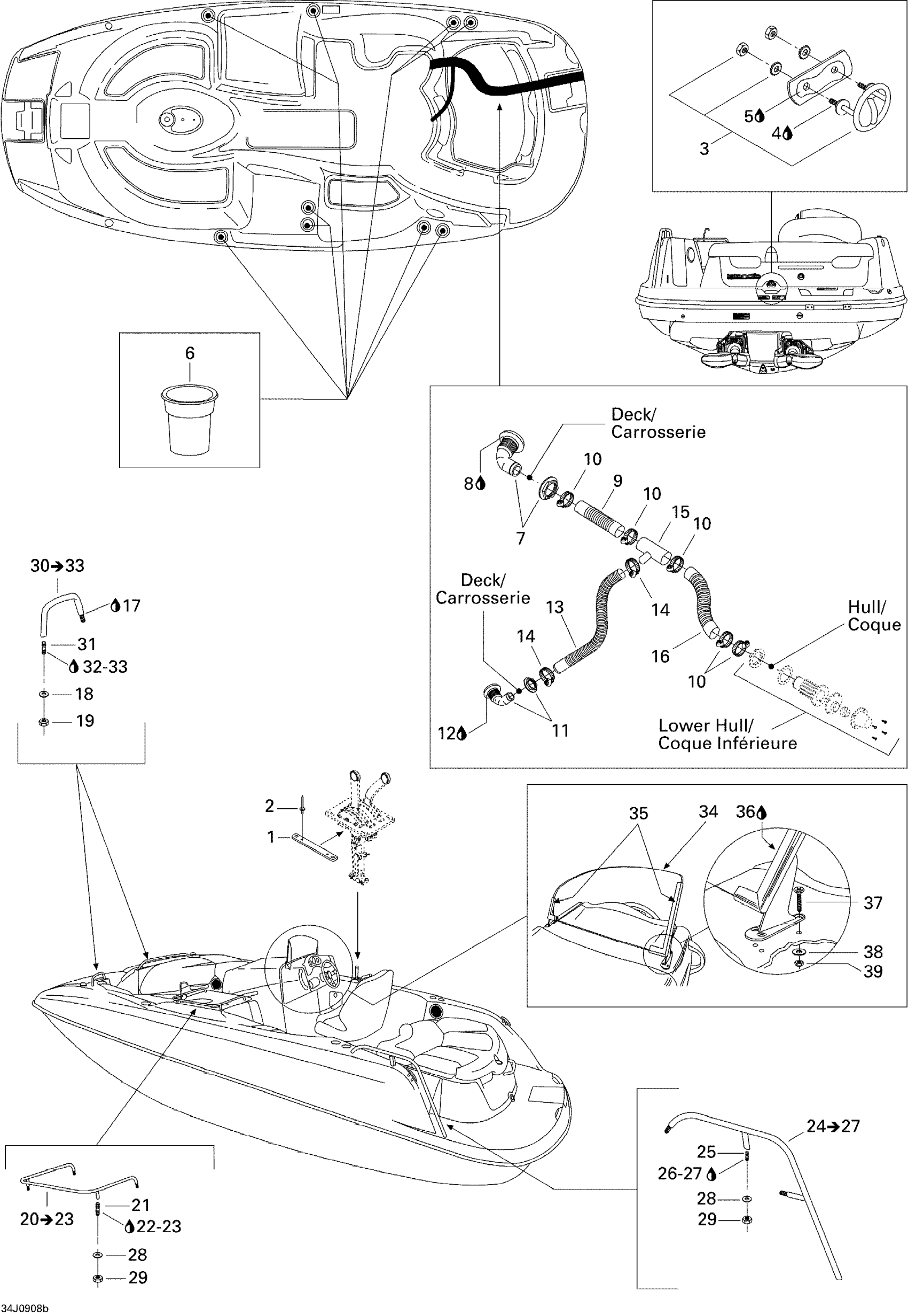

Sea-doo Islandia SE 2 x 215 SCIC, 2009 Body And Accessories 2 Diagram

#

Description
Price

1

SHIFTER INSERT - Call your local BRP dealership

293450061

Unavailable

2

Pop Rivet 3/16"

293150013

$1.37

3

Ski Tow Hook

204070206

Unavailable

4

Loctite 271, 10 ml

293800005

$26.99

5

Silicone Sealant 51388, 300 ml

296000309

$36.99

6

CUP HOLDER - Call your local BRP dealership | STD

291000619

Unavailable

7

THRU-HULL FITTING 90 X 1-1/2 - Call your local BRP dealership

293710084

Unavailable

8

Silicone Sealant 51388, 300 ml

296000309

$36.99

9

HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership

204070560

Unavailable

10

Norma Clamp

293650074

$17.05

11

DRAIN FITTING 90 - Call your local BRP dealership

204071166

Unavailable

12

Silicone Sealant 51388, 300 ml

296000309

$36.99

13

BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership

291001206

Unavailable

14

Tridon Clamp

293650016

$10.99

15

T-FITTING - Call your local BRP dealership

204071167

Unavailable

16

HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership

204070560

Unavailable

17

Silicone Sealant 51388, 300 ml

296000309

$36.99

18

Flat Washer 10 mm, Stainless

234002600

$2.22

19

HEX. ELASTIC NUT 3/8 - Call your local BRP dealership

204100032

Unavailable

20

COUNTERTOP RAIL ASS?Y - Call your local BRP dealership | Includes 20 to 23

204070608

Unavailable

21

STUD 1/4?-20 X 2? - Call your local BRP dealership

204100033

Unavailable

22

Loctite 271, 10 ml

293800005

$26.99

23

Was 293800041 Loctite Primer 7649

219704458

$39.99

24

Boarding Rail Ass'y | Includes 24 to 27

204071034

Unavailable

25

STUD 3/8?-16 X 2? - Call your local BRP dealership

204100050

Unavailable

26

Loctite 271, 10 ml

293800005

$26.99

27

Was 293800041 Loctite Primer 7649

219704458

$39.99

28

Flat Washer 8 mm, Stainless

234082600

$2.43

29

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

30

Bow Rail Ass'y | Includes 30 to 33

204073258

Unavailable

31

STUD 3/8?-16 X 2? - Call your local BRP dealership

204100050

Unavailable

32

Was 293800041 Loctite Primer 7649

219704458

$39.99

33

Loctite 271, 10 ml

293800005

$26.99

34

Front Windshield

204070858

Unavailable

35

WINDSHIELD FRAME - Call your local BRP dealership

204072364

Unavailable

36

Silicone Sealant 51388, 300 ml

296000309

$36.99

37

Phillips Screw M6 X 25

208562560

$2.32

38

Stainless Flat Washer M6

234061600

$0.33

39

Elastic Stop Nut M6

232561414

$0.55
