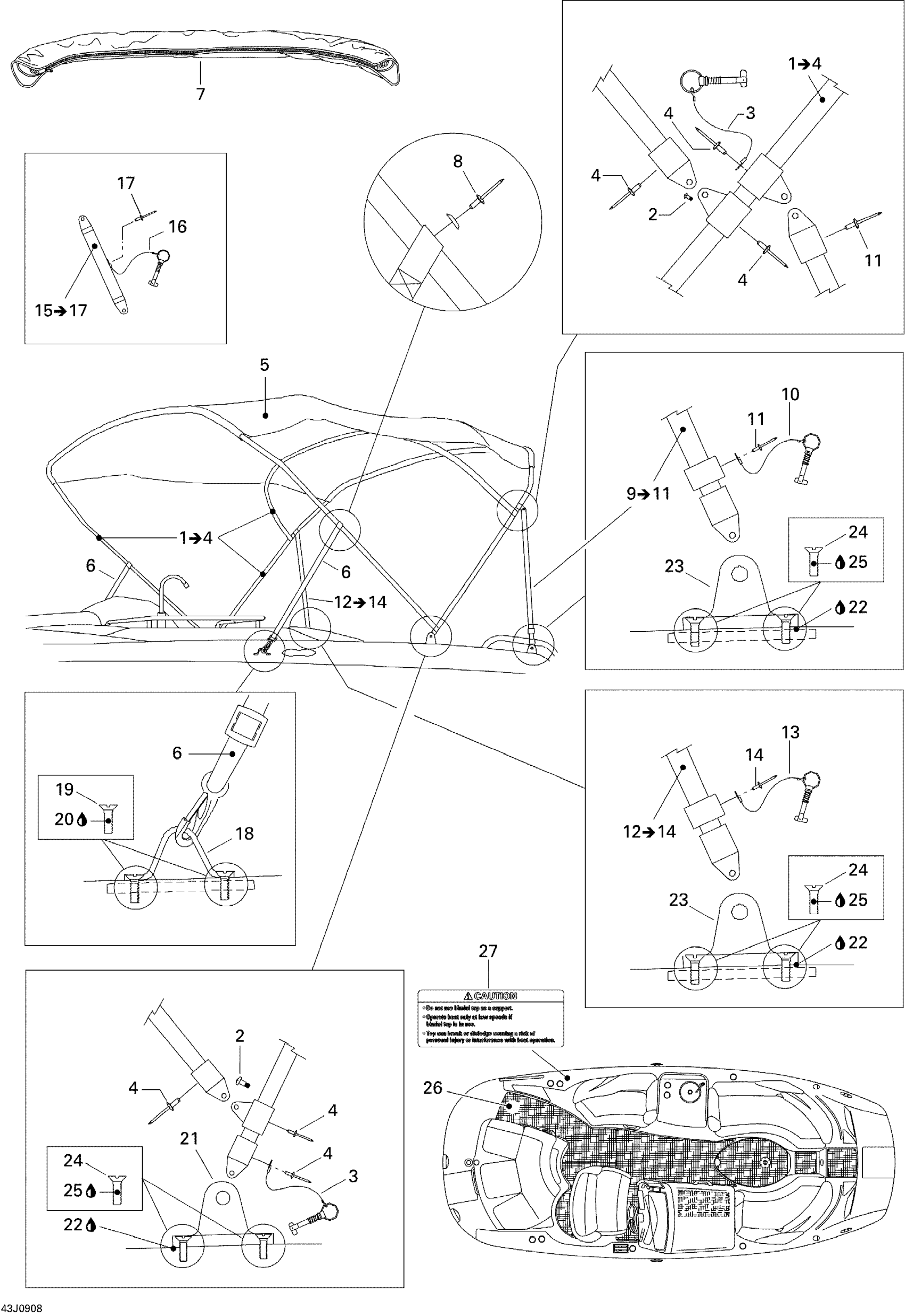

Sea-doo Islandia SE 2 x 215 SCIC, 2009 Bimini Top Diagram

#

Description
Price

1

BIMINI TOP FRAME ASS'Y - Call your local BRP dealership | Includes 1 to 4

204072439

Unavailable

2

SCREW-PAN HD.1/4-20 SS - Call your local BRP dealership

204100066

Unavailable

3

RETAINING CABLE ASS'Y - Call your local BRP dealership

204072441

Unavailable

4

Pop Rivet 3/16"

293150039

$1.49

5

Bimini Canvas

204950067

Unavailable

6

BIMINI STRAP ASS?Y - Call your local BRP dealership

204072442

Unavailable

7

BIMINI COVER - Call your local BRP dealership

204950068

Unavailable

8

Pop Rivet 3/16"

293150039

$1.49

9

BRACE ASS?Y, PORT SIDE - Call your local BRP dealership | Includes 9 to 11

204072444

Unavailable

10

RETAINING CABLE ASS'Y - Call your local BRP dealership

204072441

Unavailable

11

Pop Rivet 3/16"

293150039

$1.49

12

Brace Ass’y, Starbord | Includes 12 to 14

204072445

Unavailable

13

RETAINING CABLE ASS'Y - Call your local BRP dealership

204072441

Unavailable

14

Pop Rivet 3/16"

293150039

$1.49

15

STORAGE SUPPORT ASS?Y - Call your local BRP dealership | Includes 15 to 17

204072446

Unavailable

16

RETAINING CABLE ASS'Y - Call your local BRP dealership

204072441

Unavailable

17

Pop Rivet 3/16"

293150039

$1.49

18

Strap Tie

204070234

Unavailable

19

Phillips Screw M4 X 30

208443060

$1.48

20

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

21

BIMINI BRACKET - Call your local BRP dealership

204070910

Unavailable

22

Silicone Sealant 51388, 300 ml

296000309

$36.99

23

BIMINI BRACKET - Call your local BRP dealership

204071011

Unavailable

24

PHILLIPS SCREW M5 X 30 - Call your local BRP dealership

208453060

Unavailable

25

Loctite 243, 10 ml

293800060

$21.49

26

Cockpit Carpet

204950096

Unavailable

27

CAUTION LABEL, BIMINI TOP - Call your local BRP dealership

204901331

Unavailable
