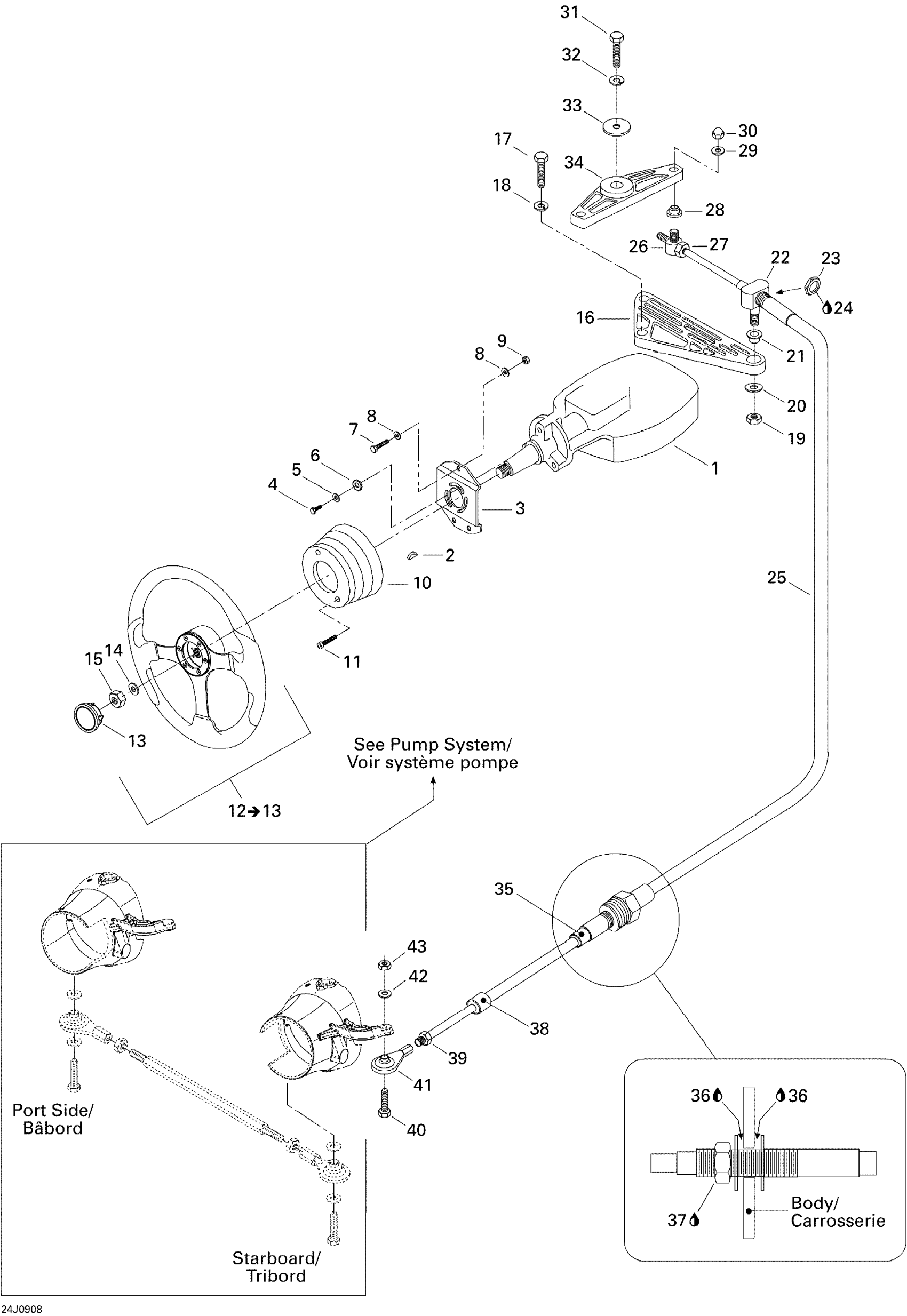

Sea-doo Islandia SE 2 x 215 SCIC, 2009 Steering Diagram

#

Description
Price

1

HELM ASS'Y - Call your local BRP dealership

204390244

Unavailable

2

WOODRUFF KEY - Call your local BRP dealership

277000384

Unavailable

3

Support

277000383

Unavailable

4

HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership

211000050

Unavailable

5

Flat Washer M6, Stainless

234062600

$0.77

6

Serrated Lock Washer 8 mm

234481608

$1.15

7

Hex. Screw M6 X 30

207163060

$1.48

8

Stainless Flat Washer M6

234061600

$0.33

9

Hex. Elastic Stop Nut M6

232561600

$1.15

10

COLLAR, BLACK - Call your local BRP dealership

204390030

Unavailable

11

SCREW 8-32 X 1-1/4 - Call your local BRP dealership

204390059

Unavailable

12

Steering Wheel Ass'y | Includes 12 to 13

204390562

Unavailable

13

CENTER CAP - Call your local BRP dealership | SE

204390549

Unavailable

14

FLAT WASHER, STAINLESS - Call your local BRP dealership

211200006

Unavailable

15

LOCK NUT 1/2-20 - Call your local BRP dealership

211100021

Unavailable

16

CABLE SUPPORT - Call your local BRP dealership

277000458

Unavailable

17

HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership

211000050

Unavailable

18

Lock Washer 1/4”

211200025

$1.29

19

LOCK NUT - Call your local BRP dealership

211100024

Unavailable

20

Flat Washer 10 mm, Stainless

234001600

$1.15

21

Flanged Bushing

293350014

$12.99

22

PIVOT 3/8? - Call your local BRP dealership

277000461

Unavailable

23

HEX. JAM NUT 5/8-18 - Call your local BRP dealership

204390053

Unavailable

24

Loctite 243, 10 ml

293800060

$21.49

25

STEERING CABLE - Call your local BRP dealership | Single HO Engine Models

204390465

Unavailable

26

PIVOT - Call your local BRP dealership

277000456

Unavailable

27

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

Unavailable

28

BUSHING - Call your local BRP dealership

204130095

Unavailable

29

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

30

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

31

HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership

211000054

Unavailable

32

Lock Washer 1/4”

211200025

$1.29

33

Flat Washer M6, Stainless

234062600

$0.77

34

ARM - Call your local BRP dealership

204390040

Unavailable

35

SEAL SWIVEL - Call your local BRP dealership

277000440

Unavailable

36

Silicone Sealant 51388, 300 ml

296000309

$36.99

37

Loctite 243, 10 ml

293800060

$21.49

38

Terminal Wiper

277000441

$11.99

39

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

Unavailable

40

BALL JOINT - Call your local BRP dealership

204120074

Unavailable

41

Hex. Screw M6 X 35

207063560

$2.22

42

Hex. Elastic Stop Nut M6

232561600

$1.15

43

Stainless Flat Washer M6

234061600

$0.33
