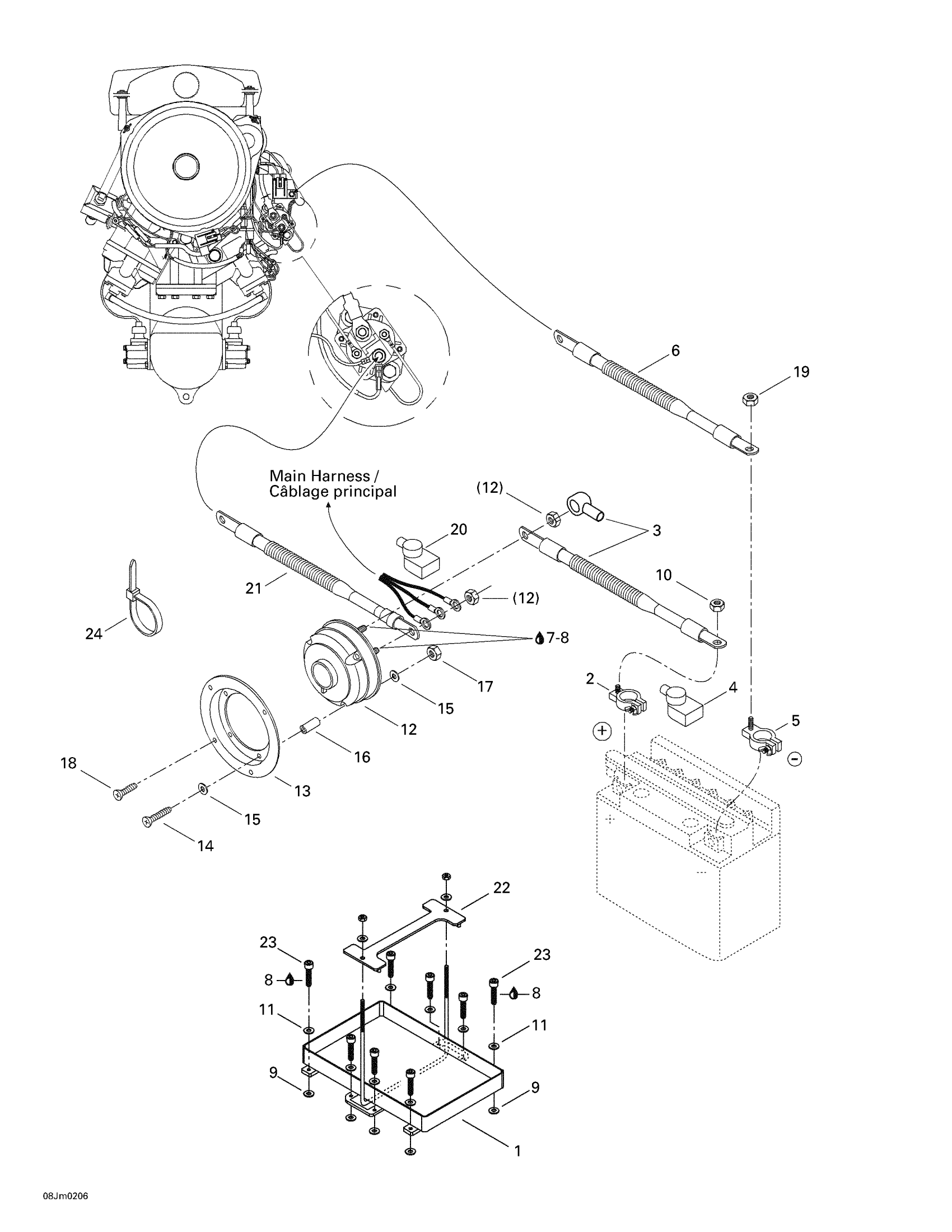

Sea-doo Islandia, 5709, 2002 10- Electrical System Diagram
#
Description
Price
1
BATTERY SUPPORT KIT - Call your local BRP dealership
204470419
Unavailable
2
POSITIVE BATTERY POLE - Call your local BRP dealership
204470349
Unavailable
3
POSITIVE CABLE, RED - Call your local BRP dealership
204470425
Unavailable
4
RED BOOT - Call your local BRP dealership
204470269
Unavailable
5
NEGATIVE BATTERY POLE - Call your local BRP dealership
204470348
Unavailable
6
Battery Ground Cable
204470427
Unavailable
7
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
8
Loctite 243, 10 ml
293800060
$21.49
9
FLAT WASHER, PLASTIC - Call your local BRP dealership
211200029
Unavailable
10
HEX. NUT 3/8-16 - Call your local BRP dealership
211100063
Unavailable
11
FLAT WASHER - Call your local BRP dealership
204100069
Unavailable
12
Battery Switch
204470329
Unavailable
13
BATTERY SWITCH SUPPORT - Call your local BRP dealership
204470653
Unavailable
14
Phillips Screw M5 X 25
208652560
$3.39
15
Flat Washer 5 mm, Stainless
234052600
$0.77
16
NYLON SPACER - Call your local BRP dealership
204470330
Unavailable
17
Hex. Elastic Nut M5 | X
232551600
$1.15
18
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
19
HEX. NUT 5/16?-18 - Call your local BRP dealership
204100052
Unavailable
20
Red Boot
204470388
Unavailable
21
Switch Cable, Positive
204470426
Unavailable
22
TOP BATTERY SUPPORT - Call your local BRP dealership
204471290
Unavailable
23
Socket Head Screw M6 X 25
205062560
$1.69
24
Tie-Rap 180 mm
414115200
$0.11
