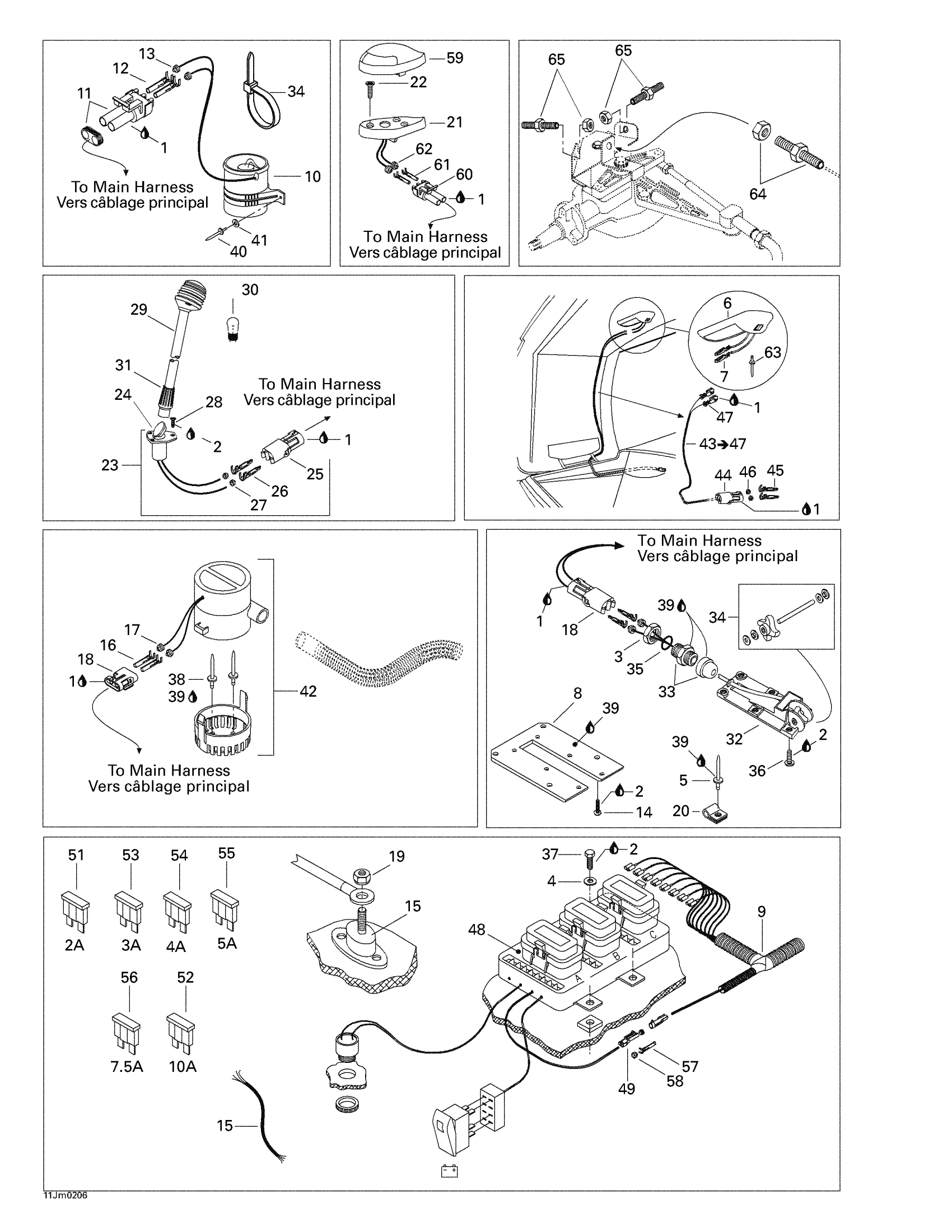

Sea-doo Islandia, 5709, 2002 10- Electrical Accessories 2 Diagram
#
1
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
2
Loctite 243, 10 ml
293800060
$21.49
3
LOCKING NUT - Call your local BRP dealership
293710032
Unavailable
4
Flat Washer M6, Stainless
234062600
$0.77
5
Pop Rivet 3/16"
293150088
$0.99
6
TOILET LIGHT ASS?Y - Call your local BRP dealership
204470414
Unavailable
7
Male Terminal
204470553
Unavailable
8
Sensor Support
204470538
Unavailable
9
Harness
204470702
Unavailable
10
Fan Ass'y | Includes 44 to 47
204470108
$144.99
11
Male Connector, 2 Circuits
278000220
$15.49
12
Female Terminal
278000223
$3.19
13
Wire Seal
278000218
$4.39
14
Phillips Screw M6 X 35 | W/O Weedless System
208563560
$2.00
15
Ground Post
204470715
Unavailable
16
Not Available As Spare Part - Friction Washer
Unavailable
17
Wire Seal
278000216
$3.19
18
Female Housing, 2 Circuits
278000217
$9.59
19
HEX. ELASTIC NUT 3/8 - Call your local BRP dealership
204100032
Unavailable
20
Cable Clamp 3/16”
204100026
Unavailable
21
FRONT LAMP SUPPORT - Call your local BRP dealership
204470072
Unavailable
22
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
23
Rear Light Base Ass'y | Includes 33 to 36
278000674
Unavailable
24
Not Available As Spare Part - Friction Washer
Unavailable
25
Female Housing, 2 Circuits
278000217
$9.59
26
Male Terminal | XT Models
278000222
$3.19
27
Wire Seal
278000218
$4.39
28
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
29
Rear Lamp Pole | Includes 29 - 31.
204470533
Unavailable
30
Bulb
204470053
Unavailable
31
COLLAR - Call your local BRP dealership
204470350
Unavailable
32
SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.
278001998
Unavailable
33
ELECTRIC CONNECTION - Call your local BRP dealership
293710031
Unavailable
34
Tie Wrap 94 mm | 4X4
293750001
$1.03
35
SEAL WASHER - Call your local BRP dealership
278000416
Unavailable
36
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership
208551060
Unavailable
37
Hex. Cap Screw M6 X 12
207161260
$1.26
38
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
39
Silicone Sealant 51388, 300 ml
296000309
$36.99
40
Pop Rivet 3/16"
293150008
$0.50
41
Flat Washer 5 mm, Stainless
234052600
$0.77
42
Bilge Pump
204471431
Unavailable
43
Toilet Light Harness | Includes 30 To 34
204470552
Unavailable
44
Female Housing, 2 Circuits
278000217
$9.59
45
Male Terminal | XT Models
278000222
$3.19
46
Wire Seal
278000218
$4.39
47
Not Available As Spare Part - Friction Washer
Unavailable
48
FUSE BLOCK - Call your local BRP dealership | Includes 18 To 28
204470610
Unavailable
49
Not Available As Spare Part - Friction Washer
Unavailable
50
Male Connector, 2 Circuits
278000220
$15.49
51
FUSE, 2 AMPERES - Call your local BRP dealership
278001442
Unavailable
52
Fuse, 10 Amperes | North America
278001197
$2.21
53
FUSE, 3 AMPERES - Call your local BRP dealership | CE
278001196
Unavailable
54
Not Available As Spare Part - Friction Washer
Unavailable
55
Fuse, 5 Amperes | CE
278000344
$3.28
56
FUSE, 7.5 AMPERES - Call your local BRP dealership | CE
278000704
Unavailable
57
Female Terminal
278000223
$3.19
58
Wire Seal
278000218
$4.39
59
NAVIGATION LIGHT, GREEN, STARBOARD - Call your local BRP dealership | Includes 5 to 8
204470407
Unavailable
Navigation Light, Red, Port Side | Includes 5 to 8
204470409
Unavailable
60
Female Housing, 2 Circuits
409209500
$15.27
61
Female Terminal
278001014
$3.28
62
Wire Seal
278001013
$3.28
63
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
64
LOW SPEED CONTROL SENSOR ASS'Y - Call your local BRP dealership | Includes 46 to 50
204470631
Unavailable
65
Low Speed Control Actuator
204470632
$42.99
