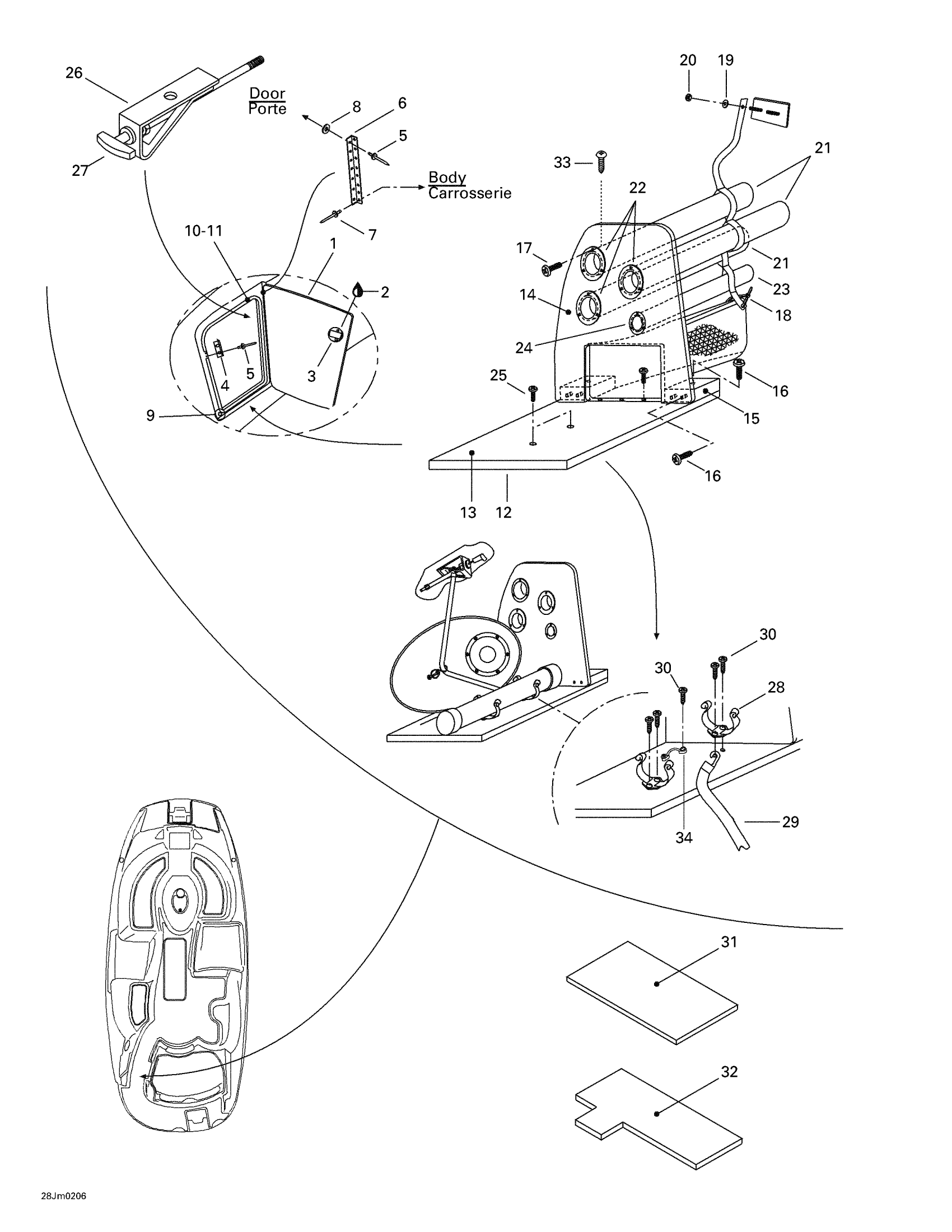

Sea-doo Islandia, 5709, 2002 Storage Compartment Diagram

#

Description
Price

1

Storage Door

204071227

Unavailable

2

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

3

VERROU, WHITE - Call your local BRP dealership

204070063

Unavailable

4

Keeper

204070926

Unavailable

5

Pop Rivet 3/16"

293150008

$0.50

6

Hinge

204610751

Unavailable

7

Pop Rivet 3/16"

293150014

$1.09

8

FLAT WASHER 3/16? - Call your local BRP dealership

211200039

Unavailable

9

BUMPER - Call your local BRP dealership

204070940

Unavailable

10

Rubber Trim

204070752

Unavailable

11

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Floor Carpet

204071585

Unavailable

14

Bulkhead Carpet

204071587

Unavailable

15

Mounting Block

204070751

Unavailable

16

TAPPING PHILLIPS SCREW 4.2 X 38 - Call your local BRP dealership

209643860

Unavailable

17

Phillips Tapping Screw

204100058

$0.66

18

Tie Wrap 142 mm

293750002

$1.25

19

WASHER-FENDER/S.S. - Call your local BRP dealership

204100139

Unavailable

20

Hex. Elastic Stop Nut M6

232561600

$1.15

21

Storage Tube 3” X 58”

204071033

Unavailable

22

Tube Collar

204071199

Unavailable

23

STORAGE TUBE 2? X 58? - Call your local BRP dealership

204071201

Unavailable

24

Tube Collar

204071202

Unavailable

25

TAPPING PHILLIPS SCREW 4.2 X 38 - Call your local BRP dealership

209643860

Unavailable

26

BRACKET, ENGINE RELEASE CABLE - Call your local BRP dealership

204070886

Unavailable

27

LATCH CABLE - Call your local BRP dealership

204070049

Unavailable

28

POLE CLIP - Call your local BRP dealership | Challenger S

204070342

Unavailable

29

ICE CHEST STRAP - Call your local BRP dealership

204070905

Unavailable

30

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

31

Deck Carpet, Outer

204071588

Unavailable

32

Deck Carpet, Inner

204071589

Unavailable

33

PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership

209630960

Unavailable

34

Strap Tie

204070234

Unavailable
