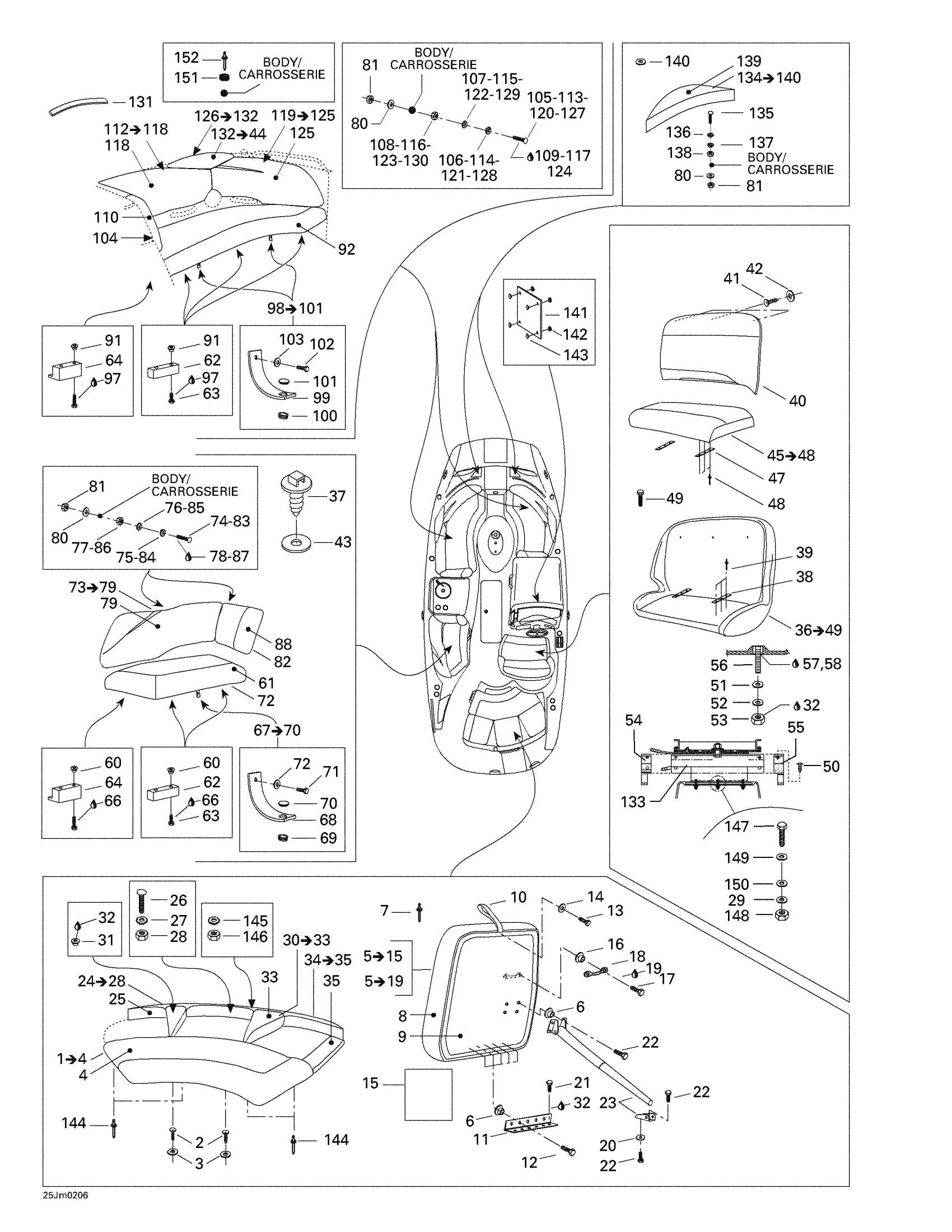

Sea-doo Islandia, 5709, 2002 Seat Diagram

#

Description
Price

1

Cushion Ass'y | Includes 1 - 4.

204611350

Unavailable

2

Black Dart

293730014

$0.99

3

Flat Washer M6, Stainless

234062600

$0.77

4

Cushion Cover

204611351

Unavailable

5

Backrest Ass'y (LH) | Includes 5 - 19.

204611703

Unavailable

5

Backrest Ass'y (Center) | Includes 5 - 15.

204611704

Unavailable

5

Backrest Ass'y (RH) | Includes 5 - 15.

204611705

Unavailable

6

TEE-NUT 1/4?- 20 - Call your local BRP dealership

204100021

Unavailable

7

Pop Rivet 3/16"

293150043

$2.09

8

Backrest Cover (LH)

204611353

Unavailable

Backrest Cover (Center)

204611356

Unavailable

Backrest Cover (RH)

204611358

Unavailable

9

Backrest Cover (Back) (LH)

204611088

Unavailable

Backrest Cover (Back) (Center)

204611097

Unavailable

Backrest Cover (Back) (RH)

204611093

Unavailable

10

Strap (Meter)

204611235

Unavailable

11

BACKREST HINGE - Call your local BRP dealership

204610750

Unavailable

12

SOCKET HEAD SCREW 1/4? X 3/4? - Call your local BRP dealership

204100035

Unavailable

13

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

14

Flat Washer 4 mm, Stainless

234042600

$1.15

15

Hinge Cover

204611354

Unavailable

16

TEE-NUT #10-32 - Call your local BRP dealership

204100044

Unavailable

17

SOCKET HEAD SCREW 10-32 X .75 - Call your local BRP dealership

204100045

Unavailable

18

Chain Pad

204610988

Unavailable

19

Loctite 243, 10 ml

293800060

$21.49

20

Flat Washer M6, Stainless

234062600

$0.77

21

SOCKET HEAD SCREW 1/4? X 1-1/4? - Call your local BRP dealership

204100036

Unavailable

22

SOCKET HEAD SCREW 1/4? X 1? - Call your local BRP dealership

204100037

Unavailable

23

Locking Support

204610749

Unavailable

24

Spoiler Ass'y | Includes 24 - 28.

204611342

Unavailable

25

Cushion Cover

204611343

Unavailable

26

Elevator Bolt

204000130

Unavailable

27

External Serrated Lock Washer 6 mm

234461608

$1.15

28

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

29

Lock Washer 8 mm, Stainless

234181601

$0.55

30

Pad Ass'y (RH) | Includes 30 - 33.

204611359

Unavailable

Pad Ass'y (LH)

204611361

Unavailable

31

TEE-NUT 1/4?- 20 - Call your local BRP dealership

204100021

Unavailable

32

Loctite 243, 10 ml

293800060

$21.49

33

Pad Cover (RH)

204611360

Unavailable

Pad Cover (LH)

204611362

Unavailable

34

Pad Ass'y | Includes 34 - 35.

204611528

Unavailable

35

Pad Cover

204610766

Unavailable

36

Driver Seat Ass'y | Includes 36 - 49.

204611665

Unavailable

37

Dart

293730021

$7.79

38

Velcro Strip

293740007

Unavailable

39

RIVET - Call your local BRP dealership

293150065

Unavailable

40

Backrest Ass'y

204611666

Unavailable

41

Black Dart

293730014

$0.99

42

Flat Washer M6, Stainless

234062600

$0.77

43

Nylon Washer 5/16”

204100040

Unavailable

44

Headrest Curtain

204611377

Unavailable

Headrest Curtain

204611378

Unavailable

45

Cushion Ass'y | Includes 45 - 48.

204611387

Unavailable

46

Not Available As Spare Part - Friction Washer

Unavailable

47

VELCRO STRIP - Call your local BRP dealership

293740004

Unavailable

48

Pop Rivet 3/16"

293150008

$0.50

49

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

50

Black, Dart

293730006

$0.99

51

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

52

Lock Washer 1/4”

211200025

$1.29

53

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

54

Front Protector

204610375

Unavailable

55

Rear Protector

204610376

Unavailable

56

THREADED STUD 1/4-20 X 1-1/4 - Call your local BRP dealership

204100077

Unavailable

57

Loctite 271, 10 ml

293800005

$26.99

58

Was 293800041 Loctite Primer 7649

219704458

$39.99

59

Cushion Ass'y

204611344

Unavailable

60

TEE-NUT 1/4?- 20 - Call your local BRP dealership

204100021

Unavailable

61

Cushion Cover

204611345

Unavailable

62

LATCH - Call your local BRP dealership

204611805

Unavailable

63

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

64

SEAT LATCH - Call your local BRP dealership

204611940

Unavailable

65

Not Available As Spare Part - Friction Washer

Unavailable

66

Loctite 243, 10 ml

293800060

$21.49

67

Retaining Strap | Includes 67 - 70.

204611104

Unavailable

68

Strap (Meter)

204611235

Unavailable

69

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

70

SNAP COVER - Call your local BRP dealership

204000085

Unavailable

71

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

72

Flat Washer 1/4"

211200667

Unavailable

73

Backrest Cushion Ass'y | Includes 73 - 79.

204611363

Unavailable

74

Elevator Bolt

204000130

Unavailable

75

EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership

211200054

Unavailable

76

External Serrated Lock Washer 6 mm

234461608

$1.15

77

Hex. Jam Nut

204100060

Unavailable

78

Loctite 243, 10 ml

293800060

$21.49

79

Cushion Cover

204611364

Unavailable

80

WASHER-FENDER/S.S. - Call your local BRP dealership

204100139

Unavailable

81

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

82

Backrest Ass'y

295501053

Unavailable

83

Elevator Bolt

204000130

Unavailable

84

EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership

211200054

Unavailable

85

External Serrated Lock Washer 6 mm

234461608

$1.15

86

Hex. Jam Nut

204100060

Unavailable

87

Loctite 243, 10 ml

293800060

$21.49

88

Pad Cover

204611366

Unavailable

89

Not Available As Spare Part - Friction Washer

Unavailable

90

Not Available As Spare Part - Friction Washer

Unavailable

91

TEE-NUT 1/4?- 20 - Call your local BRP dealership

204100021

Unavailable

92

Cushion Cover RH

204611347

Unavailable

Cushion Cover LH

204611349

Unavailable

93

Not Available As Spare Part - Friction Washer

Unavailable

94

Not Available As Spare Part - Friction Washer

Unavailable

95

Not Available As Spare Part - Friction Washer

Unavailable

96

Not Available As Spare Part - Friction Washer

Unavailable

97

Loctite 243, 10 ml

293800060

$21.49

98

Retaining Strap | Includes 67 - 70.

204611104

Unavailable

99

Strap (Meter)

204611235

Unavailable

100

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

101

SNAP COVER - Call your local BRP dealership

204000085

Unavailable

102

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

103

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

104

Backrest Ass'y RH

204611673

Unavailable

Backrest ass'y LH

204611680

Unavailable

105

Elevator Bolt

204000130

Unavailable

106

EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership

211200054

Unavailable

107

External Serrated Lock Washer 6 mm

234461608

$1.15

108

Hex. Jam Nut

204100060

Unavailable

109

Loctite 243, 10 ml

293800060

$21.49

110

Backrest Cover RH

204611371

Unavailable

Backrest Cover LH

204611373

Unavailable

111

Not Available As Spare Part - Friction Washer

Unavailable

112

Backrest Ass'y RH | Includes 112 - 118.

204611674

Unavailable

Backrest Ass'y LH

204611683

Unavailable

113

Elevator Bolt

204000130

Unavailable

114

EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership

211200054

Unavailable

115

External Serrated Lock Washer 6 mm

234461608

$1.15

116

Hex. Jam Nut

204100060

Unavailable

117

Loctite 243, 10 ml

293800060

$21.49

118

Backrest Cover RH

204610802

Unavailable

Backrest Cover LH

204610827

Unavailable

119

Backrest Ass'y (Front) RH | Includes 119 - 125.

204611677

Unavailable

Backrest Ass'y (Front) LH

204611686

Unavailable

120

Elevator Bolt

204000130

Unavailable

121

EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership

211200054

Unavailable

122

External Serrated Lock Washer 6 mm

234461608

$1.15

123

Hex. Jam Nut

204100060

Unavailable

124

Loctite 243, 10 ml

293800060

$21.49

125

Backrest Cover RH

204611372

Unavailable

Backrest Cover LH

204611374

Unavailable

126

Headrest Ass'y RH | Includes 126 - 132.

204611700

Unavailable

Headrest Ass'y LH

204611699

Unavailable

127

Elevator Bolt

204000130

Unavailable

128

EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership

211200054

Unavailable

129

External Serrated Lock Washer 6 mm

234461608

$1.15

130

Hex. Jam Nut

204100060

Unavailable

131

TRAY SEAL, METER - Call your local BRP dealership

293200032

Unavailable

132

Headrest Cover RH | Includes 132 - 44.

204610811

Unavailable

Headrest Cover LH

204610835

Unavailable

133

SWIVEL BASE SEAT - Call your local BRP dealership

204611540

Unavailable

134

Pad Ass'y RH | Includes 134 - 140.

204611710

Unavailable

Pad Ass'y LH

204611712

Unavailable

135

Elevator Bolt

204000130

Unavailable

136

EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership

211200054

Unavailable

137

External Serrated Lock Washer 6 mm

234461608

$1.15

138

Hex. Jam Nut

204100060

Unavailable

139

Pad Cover RH

204610839

Unavailable

Pad Cover LH

204610843

Unavailable

140

Flat Washer M8.5 x 18

293050001

$3.07

141

Helm Curtain

204611380

Unavailable

142

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

143

SNAP COVER - Call your local BRP dealership

204000085

Unavailable

144

Pop Rivet 3/16"

293150013

$1.37

145

Flat Washer 8 mm, Stainless

234082600

$2.43

146

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

147

HEX. SCREW M8 X 55 - Call your local BRP dealership

207185560

Unavailable

148

Hex. Elastic Nut M8

232581600

$1.48

149

Stainless, Flat Washer 8 mm

234081600

$0.55

150

Flat Washer 8 mm, Stainless

234082600

$2.43

151

BOTTOM SNAP - Call your local BRP dealership

204000084

Unavailable

152

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

Unavailable
