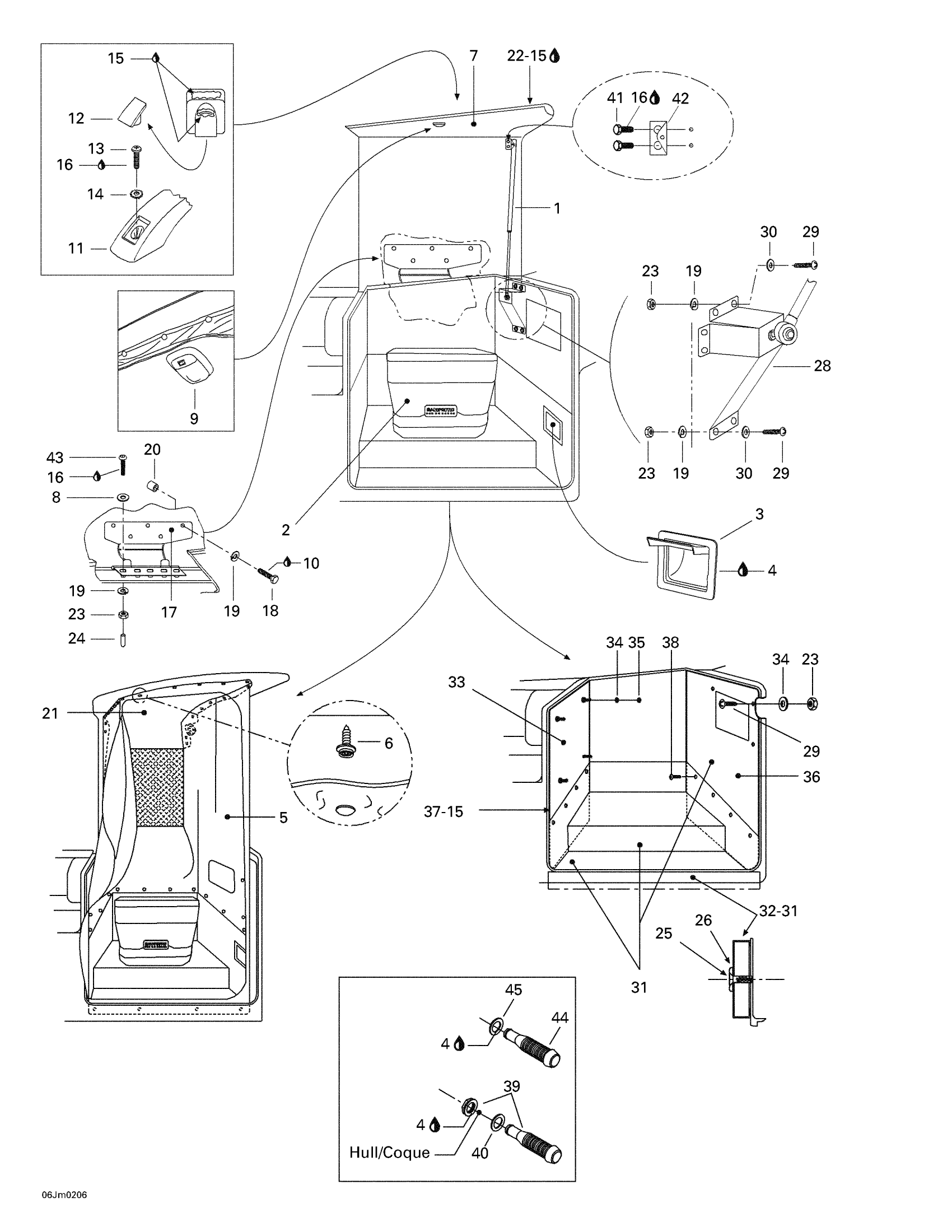

Sea-doo Islandia, 5709, 2002 09- Portable Toilet Diagram
#
1
Air Shock, 90 Lb
204071087
Unavailable
2
PORTABLE TOILET - Call your local BRP dealership
204070636
Unavailable
3
Paper Holder
204070637
Unavailable
4
Silicone Sealant 51388, 300 ml
296000309
$36.99
5
Toilet Curtain
204071168
Unavailable
6
SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership
202000159
Unavailable
7
Toilet Door
204071161
Unavailable
8
Flat Washer M6, Stainless
234062600
$0.77
9
TOILET LIGHT ASS?Y - Call your local BRP dealership
204470414
Unavailable
10
Loctite 243, 10 ml
293800060
$21.49
11
Handle Grip (Palma Blue) | Includes 22 - 23.
204070544
Unavailable
12
Snap Cap (Palma Blue)
204070545
Unavailable
13
PHILLIPS SCREW M6 X 35 - Call your local BRP dealership
208663560
Unavailable
14
Stainless Flat Washer M6
234061600
$0.33
15
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
16
Loctite 243, 10 ml
293800060
$21.49
17
TOILER DOOR HINGE - Call your local BRP dealership
204070642
Unavailable
18
Hex. Forming Screw M6 X 20
207162060
$1.29
19
Lock Washer Helical M6
234161601
$1.15
20
SPACER 3.2 MM - Call your local BRP dealership
204070047
Unavailable
SPACER 1.6 MM - Call your local BRP dealership
204070088
Unavailable
21
Headliner, Toilet Door
204070764
Unavailable
22
Trim, White, 7/16”, Meter
204070446
Unavailable
23
Hex. Elastic Stop Nut M6
232561600
$1.15
24
Cap
204070947
Unavailable
25
PHILLIPS TAPPING SCREW M10 X 2 - Call your local BRP dealership
204100056
Unavailable
26
FINITION WASHER - Call your local BRP dealership
204100057
Unavailable
27
Not Available As Spare Part - Friction Washer
Unavailable
28
CYLINDER SUPPORT, TOILET - Call your local BRP dealership
204070765
Unavailable
29
PHILLIPS SCREW M6 X 30 - Call your local BRP dealership
208663060
Unavailable
30
FLAT WASHER 6 MM - Call your local BRP dealership
234060600
Unavailable
31
Headliner, Toilet Door
204070764
Unavailable
32
LOWER DOOR COVER - Call your local BRP dealership
204070779
Unavailable
33
PLASTIC FORM, FRONT BULKHEAD - Call your local BRP dealership
204071028
Unavailable
34
Flat Washer M6, Stainless
234062600
$0.77
35
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
36
PLASTIC FORM, REAR BULKHEAD - Call your local BRP dealership
204070776
Unavailable
37
Rubber Trim
204070752
Unavailable
38
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
39
Fitting
293710162
$13.49
40
GASKET - Call your local BRP dealership This part replaces 293250251.
293250006
Unavailable
41
HEX. SCREW M5 X 16 - Call your local BRP dealership
207151660
Unavailable
42
CYLINDER SUPPORT - Call your local BRP dealership
291000654
Unavailable
43
Socket Screw M6 X 40
205464060
$2.22
