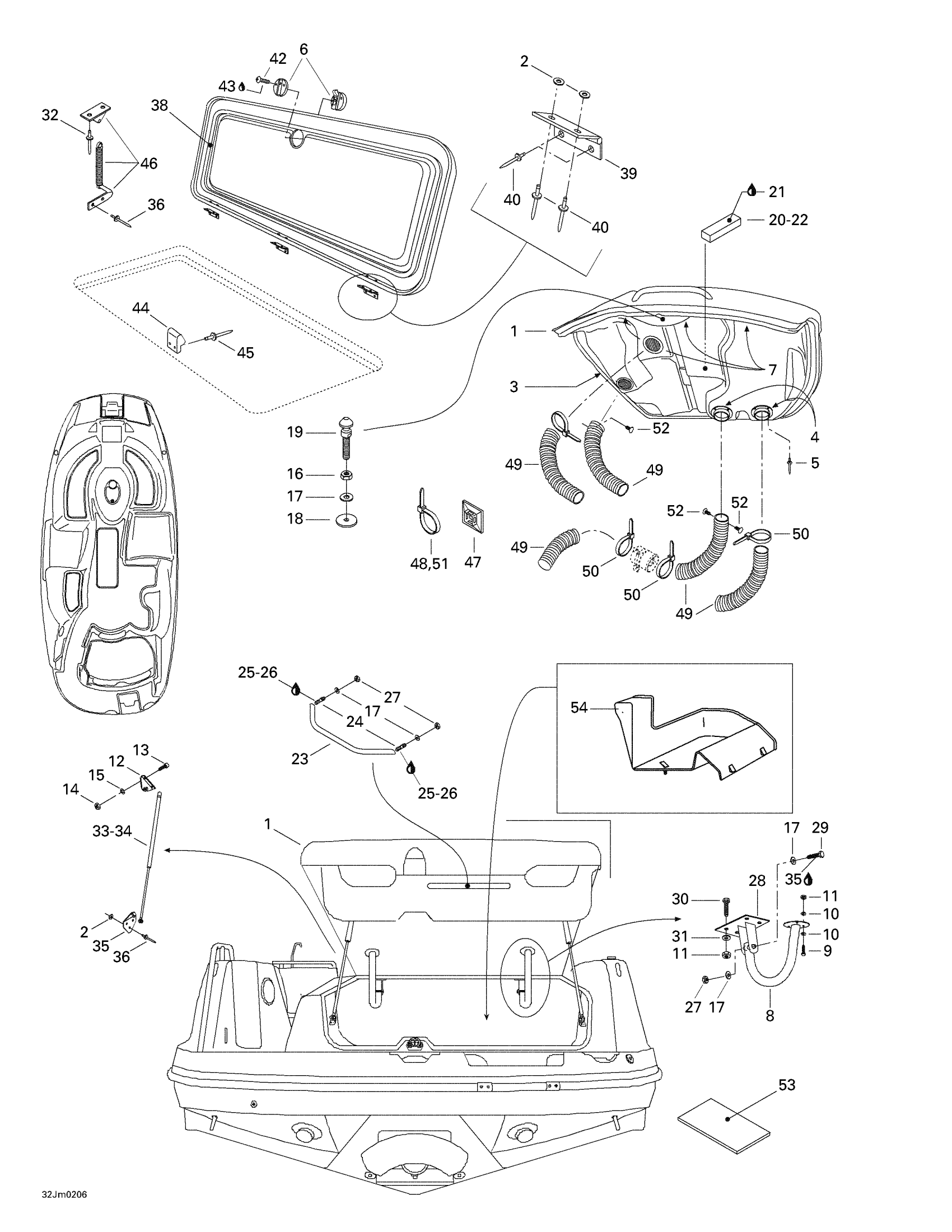

Sea-doo Islandia, 5709, 2002 09- Engine And Center Cover Diagram
#
1
Engine Cover
204071532
Unavailable
2
Flat Washer M5, Stainless
234051600
$0.77
3
Was 293200017 Neoprene Seal
219704365
$149.99
4
Ventilator Adaptor
204071540
Unavailable
5
Pop Rivet 1/8”
293150015
$0.40
6
LATCH, WHITE - Call your local BRP dealership
204070120
Unavailable
7
Black Dart
293730014
$0.99
8
ENGINE COVER HINGE - Call your local BRP dealership
204070785
Unavailable
9
Hex. Screw M6 X 65
207166560
$2.75
10
Flat Washer M6, Stainless
234062600
$0.77
11
Hex. Elastic Stop Nut M6
232561600
$1.15
12
CYLINDER SUPPORT - Call your local BRP dealership
291000654
Unavailable
13
SOCKET HEAD SCREW M5 X 50 - Call your local BRP dealership
205455060
Unavailable
14
Hex. Elastic Nut M5 | X
232551600
$1.15
15
Flat Washer 5 mm, Stainless
234052600
$0.77
16
Hex. Jam Nut M10
232100600
$2.22
17
Flat Washer 10 mm, Stainless
234002600
$2.22
18
RUBBER WASHER - Call your local BRP dealership
291000628
Unavailable
19
Latch Stud
204100065
Unavailable
20
FOAM 2-1/2 X 2-1/2 X 18.5 - Call your local BRP dealership
204070903
Unavailable
21
Silicone Sealant 51388, 300 ml
296000309
$36.99
22
FOAM 21/2 X 5 X 18 - Call your local BRP dealership
204070904
Unavailable
23
GRAB HANDLE - Call your local BRP dealership
204071122
Unavailable
24
Threaded Stud
204100031
Unavailable
25
Loctite 271, 10 ml
293800005
$26.99
26
Was 293800041 Loctite Primer 7649
219704458
$39.99
27
HEX. ELASTIC NUT 3/8 - Call your local BRP dealership
204100032
Unavailable
28
HINGE BRACKET, ENGINE COVER - Call your local BRP dealership
204070925
Unavailable
29
HEX. SCREW 3/8?-16 X 2-1/2? - Call your local BRP dealership
204100053
Unavailable
30
Hex. Screw M6 X 40
207164060
$3.38
31
Stainless Flat Washer M6
234061600
$0.33
32
Pop Rivet 3/16"
204000081
$1.49
33
LH Retainer Cylinder
204071085
Unavailable
34
RH Retainer Cylinder
204071086
Unavailable
35
Loctite 243, 10 ml
293800060
$21.49
36
Pop Rivet 3/16"
293150043
$2.09
37
CENTER COVER - Call your local BRP dealership
204073144
Unavailable
38
TRAY SEAL, METER - Call your local BRP dealership
293200032
Unavailable
39
HINGE - Call your local BRP dealership
204072601
Unavailable
40
Pop Rivet 3/16"
293150088
$0.99
41
Not Available As Spare Part - Friction Washer
Unavailable
42
SCREW M5 X 16 - Call your local BRP dealership
208651660
Unavailable
43
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership
219704457
$54.99
44
LATCH BRACKET - Call your local BRP dealership
204070050
Unavailable
45
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
46
SPRING SEAT - Call your local BRP dealership
204000071
Unavailable
47
TIE RAP MOUNT - Call your local BRP dealership
293750015
Unavailable
48
Tie Wrap 142 mm
293750002
$1.25
Not Available As Spare Part - Friction Washer
Unavailable
49
Was 204050122 Vent Hose 4"
219704358
$25.99
50
Tie Rap
293750019
$3.29
51
Tie-Rap 180 mm
414115200
$0.11
52
Black, Dart
293730006
$0.99
53
Deck Carpet
204071093
Unavailable
54
Battery Cover
204050402
Unavailable
55
SLIT CONDUIT, METER - Call your local BRP dealership
204550015
Unavailable
56
LATCH ASS'Y - Call your local BRP dealership
204050309
Unavailable
