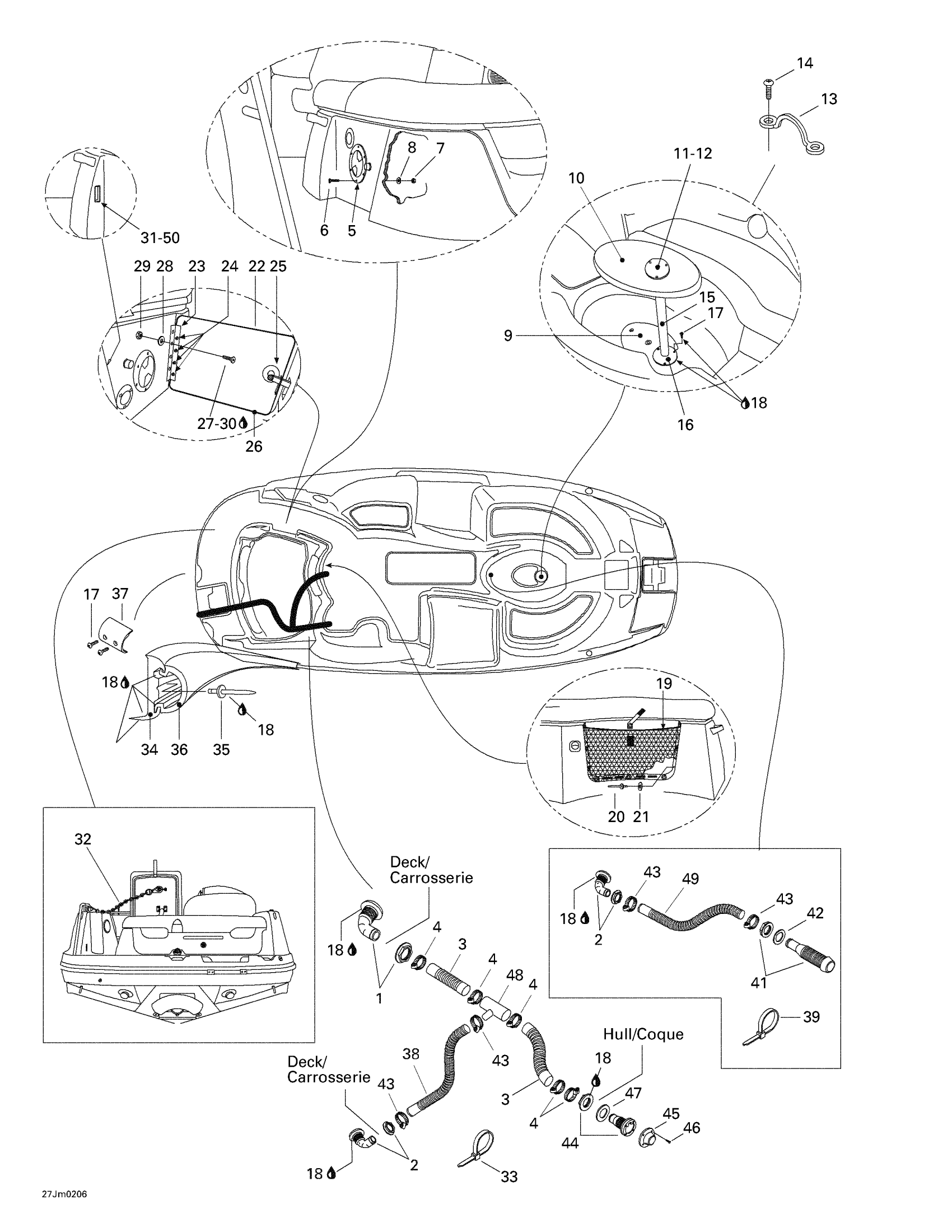

Sea-doo Islandia, 5709, 2002 09- Body And Accessories 2 Diagram
#
1
THRU-HULL FITTING 90 X 1-1/2 - Call your local BRP dealership
293710084
Unavailable
2
DRAIN FITTING 90 - Call your local BRP dealership
204071166
Unavailable
3
HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership
204070560
Unavailable
4
Norma Clamp
293650074
$17.05
5
BOTTOM PLATE - Call your local BRP dealership
204070622
Unavailable
6
PHILLIPS SCREW M4 X 20 - Call your local BRP dealership
208442060
Unavailable
7
Elastic Stop Nut M4
232541600
$1.15
8
Flat Washer 4 mm, Stainless
234042600
$1.15
9
FOUNTAIN COVER - Call your local BRP dealership
204070892
Unavailable
10
Cockpit Table
204070632
Unavailable
11
TABLE MOUNT - Call your local BRP dealership | Challenger S
204071315
Unavailable
12
TAPPING SCREW M5 X 19 - Call your local BRP dealership | Challenger S
209951960
Unavailable
13
Strap Tie
204070234
Unavailable
14
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
15
TABLE POST, LARGE - Call your local BRP dealership | Challenger S
204070634
Unavailable
16
TABLE BASE - Call your local BRP dealership
204071209
Unavailable
17
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
18
Silicone Sealant 51388, 300 ml
296000309
$36.99
19
Storage Net
204071172
Unavailable
20
Pop Rivet 3/16"
293150005
$0.52
21
Flat Washer 5 mm, Stainless
234052600
$0.77
22
Stern Gate
204071233
Unavailable
23
Stern Gate Hinge
204071038
Unavailable
24
Pop Rivet 1/4”
293150081
Unavailable
25
DOOR LATCH - Call your local BRP dealership
204070951
Unavailable
26
NEOPRENE SEAL, METER - Call your local BRP dealership
293200068
Unavailable
27
PHILLIPS SCREW M6 X 20 - Call your local BRP dealership
208462060
Unavailable
28
Stainless Flat Washer M6
234061600
$0.33
29
Hex. Elastic Stop Nut M6
232561600
$1.15
30
Loctite 243, 10 ml
293800060
$21.49
31
GROMMET - Call your local BRP dealership
293720099
Unavailable
32
Chain Ass’y
204070978
Unavailable
33
Tie Wrap 368 mm
293750008
$1.04
34
Black, Bumper
204050340
Unavailable
35
Pop Rivet 3/16"
293150013
$1.37
36
BUMPER TRIM, BLACK - Call your local BRP dealership
204050337
Unavailable
37
BUMPER COVER, BLACK - Call your local BRP dealership
204050338
Unavailable
38
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership
291001206
Unavailable
39
Tie-Rap 180 mm
414115200
$0.11
40
Not Available As Spare Part - Friction Washer
Unavailable
41
Fitting
293710162
$13.49
42
GASKET - Call your local BRP dealership This part replaces 293250251.
293250006
Unavailable
43
Tridon Clamp
293650016
$10.99
44
THRU HULL FITTING - Call your local BRP dealership
204060071
Unavailable
45
SCUPPER VALVE - Call your local BRP dealership
204060188
Unavailable
46
PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown
211000180
Unavailable
47
GASKET - Call your local BRP dealership
292800106
Unavailable
48
T-FITTING - Call your local BRP dealership
204071167
Unavailable
49
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership
291001206
Unavailable
50
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
