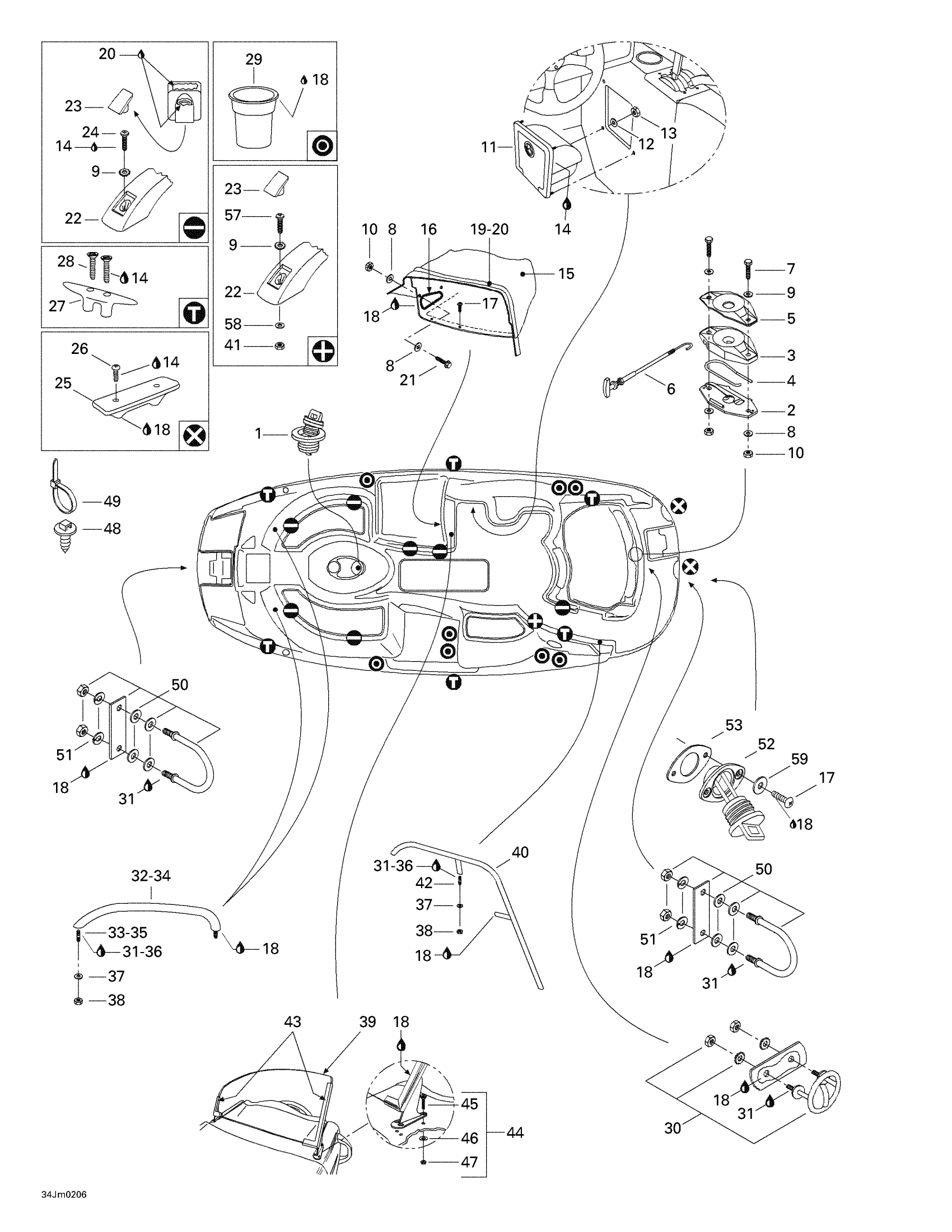

Sea-doo Islandia, 5709, 2002 09- Body And Accessories 1 Diagram
#
1
Drain Plug
204070857
Unavailable
2
LATCH COVER - Call your local BRP dealership
204070036
Unavailable
3
LATCH BASE - Call your local BRP dealership
204070037
Unavailable
4
SPRING - Call your local BRP dealership
204070038
Unavailable
5
LATCH PROTECTOR - Call your local BRP dealership
204070952
Unavailable
6
LATCH CABLE - Call your local BRP dealership
204070049
Unavailable
7
Hex. Screw M6 X 35
207163560
$1.49
8
Flat Washer M6, Stainless
234062600
$0.77
9
Stainless Flat Washer M6
234061600
$0.33
10
Hex. Elastic Stop Nut M6
232561600
$1.15
11
GLOVE BOX - Call your local BRP dealership
204071084
Unavailable
12
Flat Washer 5 mm, Stainless
234052600
$0.77
13
NEEDS DESCRIPTION This part replaces 204100034.
0460000
$0.60
14
Loctite 243, 10 ml
293800060
$21.49
15
Not Available As Spare Part - Friction Washer
Unavailable
16
SLIT CONDUIT 1 - Call your local BRP dealership This part replaces 204560132.
204130176
Unavailable
17
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
18
Silicone Sealant 51388, 300 ml
296000309
$36.99
19
TRIM, WHITE - Call your local BRP dealership
204050048
Unavailable
20
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
21
Hex. Screw M6 X 30
207163060
$1.48
22
Handle Grip (Palma Blue) | Includes 22 - 23.
204070544
Unavailable
23
Snap Cap (Palma Blue)
204070545
Unavailable
24
SOCKET SCREW M6 X 25 - Call your local BRP dealership
205462560
Unavailable
25
GRIP HANDLE, BLACK - Call your local BRP dealership
204070194
Unavailable
26
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership
205364060
Unavailable
27
CLEAT - Call your local BRP dealership | STD
204070592
Unavailable
28
Socket Head Screw M6 X 70
205367060
Unavailable
29
CUP HOLDER - Call your local BRP dealership | STD
291000619
Unavailable
30
Ski Tow Hook
204070206
Unavailable
31
Loctite 271, 10 ml
293800005
$26.99
32
LH Bow Rail Ass’y | Includes 16 to 19
204070605
Unavailable
33
STUD 3/8?-16 X 2? - Call your local BRP dealership
204100050
Unavailable
34
RH Bow Rail Ass’y | Includes 22 to 25
204070606
Unavailable
35
STUD 3/8?-16 X 2? - Call your local BRP dealership
204100050
Unavailable
36
Was 293800041 Loctite Primer 7649
219704458
$39.99
37
Flat Washer 10 mm, Stainless
234002600
$2.22
38
HEX. ELASTIC NUT 3/8 - Call your local BRP dealership
204100032
Unavailable
39
Front Windshield
204070858
Unavailable
40
Boarding Rail Ass'y | Includes 24 to 27
204071034
Unavailable
41
Hex. Elastic Stop Nut M6
232561600
$1.15
42
STUD 3/8?-16 X 2? - Call your local BRP dealership
204100050
Unavailable
43
Windshield Frame
204070984
Unavailable
44
Windshield Hardware Kit | Includes 37 to 40
204070985
Unavailable
45
Phillips Screw M6 X 25
208562560
$2.32
46
Stainless Flat Washer M6
234061600
$0.33
47
Elastic Stop Nut M6
232561414
$0.55
48
Mount Dart
293730040
$1.04
49
Tie Wrap 368 mm
293750008
$1.04
Tie-Rap 180 mm
414115200
$0.11
50
BOW EYE KIT 1/2? - Call your local BRP dealership
204050336
Unavailable
51
WASHER-LOCK HELICAL 1/2 - Call your local BRP dealership
204100048
Unavailable
52
Drain Plug
292000187
$14.49
53
GASKET - Call your local BRP dealership
293250030
Unavailable
54
Not Available As Spare Part - Friction Washer
Unavailable
55
Socket Wrench
204630050
Unavailable
56
Steel Bar
204630051
Unavailable
57
Socket Head Screw M6 X 70
205367060
Unavailable
58
Flat Washer M6, Stainless
234062600
$0.77
59
Flat Washer 4 mm, Stainless
234041600
$1.15
