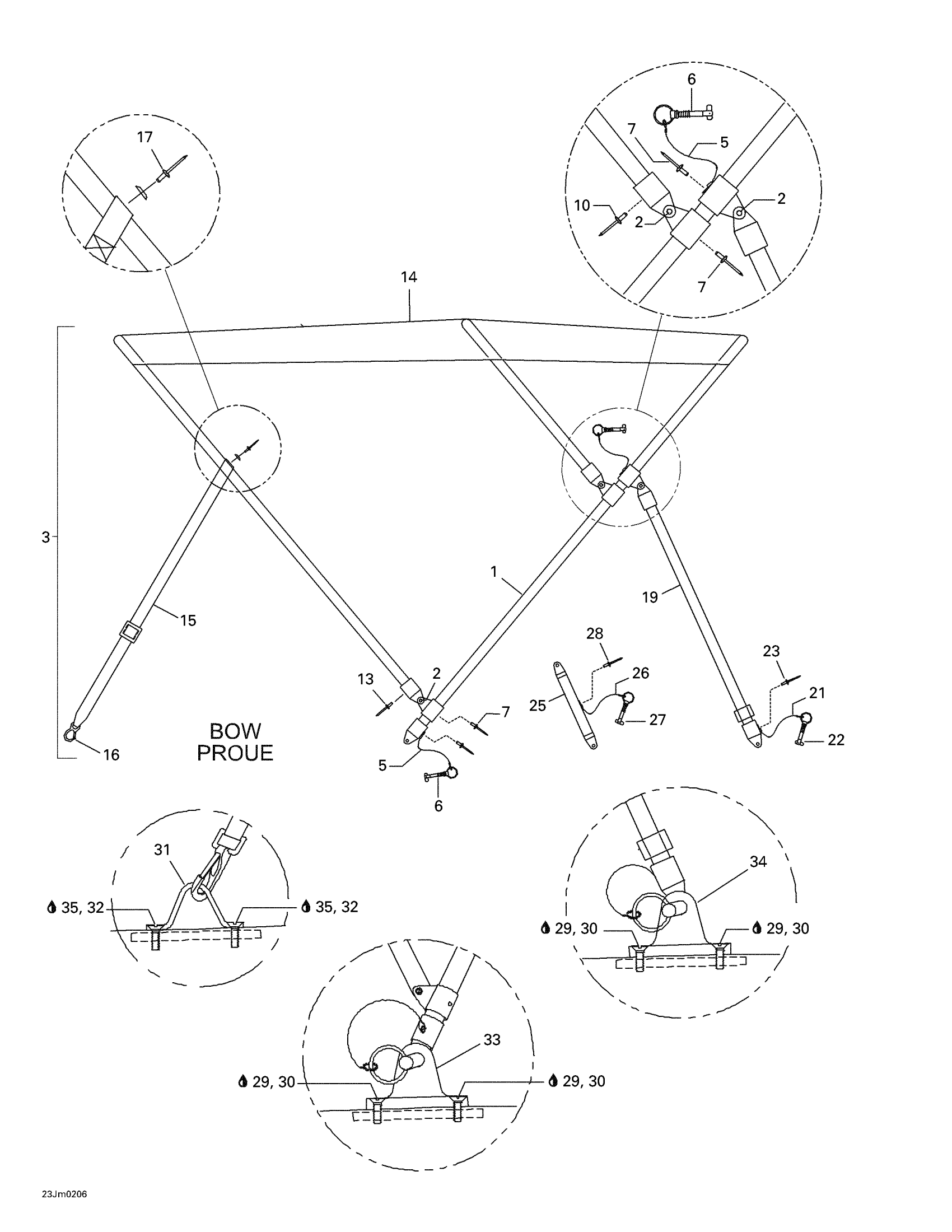

Sea-doo Islandia, 5709, 2002 09- Bimini Top Diagram
#
Description
Price
1
Rear Frame Ass’y | Includes 1 to 5
204071098
Unavailable
2
SCREW-PAN HD.1/4-20 SS - Call your local BRP dealership
204100066
Unavailable
3
Bimini Top
204071443
Unavailable
4
Not Available As Spare Part - Friction Washer
Unavailable
5
Retaining Cable
204071012
Unavailable
6
Retaining Pin
204070960
Unavailable
7
Pop Rivet 3/16"
293150039
$1.49
8
Not Available As Spare Part - Friction Washer
Unavailable
9
Not Available As Spare Part - Friction Washer
Unavailable
10
Pop Rivet 3/16"
293150039
$1.49
11
Not Available As Spare Part - Friction Washer
Unavailable
12
Not Available As Spare Part - Friction Washer
Unavailable
13
Pop Rivet 3/16"
293150039
$1.49
14
Bimini Canvas
204071444
Unavailable
15
Bimini Strap Ass’y | Includes 11 to 12
204071008
Unavailable
16
Hook Snap
204071007
Unavailable
17
Pop Rivet 3/16"
293150039
$1.49
18
Not Available As Spare Part - Friction Washer
Unavailable
19
Brace Ass’y, Port Side | Includes 14 to 17
204071109
Unavailable
Brace Ass’y, Starbord | Includes 14 to 17
204071112
Unavailable
20
Not Available As Spare Part - Friction Washer
Unavailable
21
Retaining Cable
204071012
Unavailable
22
Retaining Pin
204070960
Unavailable
23
Pop Rivet 3/16"
293150039
$1.49
24
Bimini Cover (Not Shown)
204071009
Unavailable
25
Storage Support Ass’y | Includes 19 to 22
204071113
Unavailable
26
Retaining Cable
204071012
Unavailable
27
Retaining Pin
204070960
Unavailable
28
Pop Rivet 3/16"
293150039
$1.49
29
Loctite 243, 10 ml
293800060
$21.49
30
PHILLIPS SCREW M5 X 30 - Call your local BRP dealership
208453060
Unavailable
31
Strap Tie
204070234
Unavailable
32
Phillips Screw M4 X 30
208443060
$1.48
33
BIMINI BRACKET - Call your local BRP dealership
204070910
Unavailable
34
BIMINI BRACKET - Call your local BRP dealership
204071011
Unavailable
35
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership
219704457
$54.99
