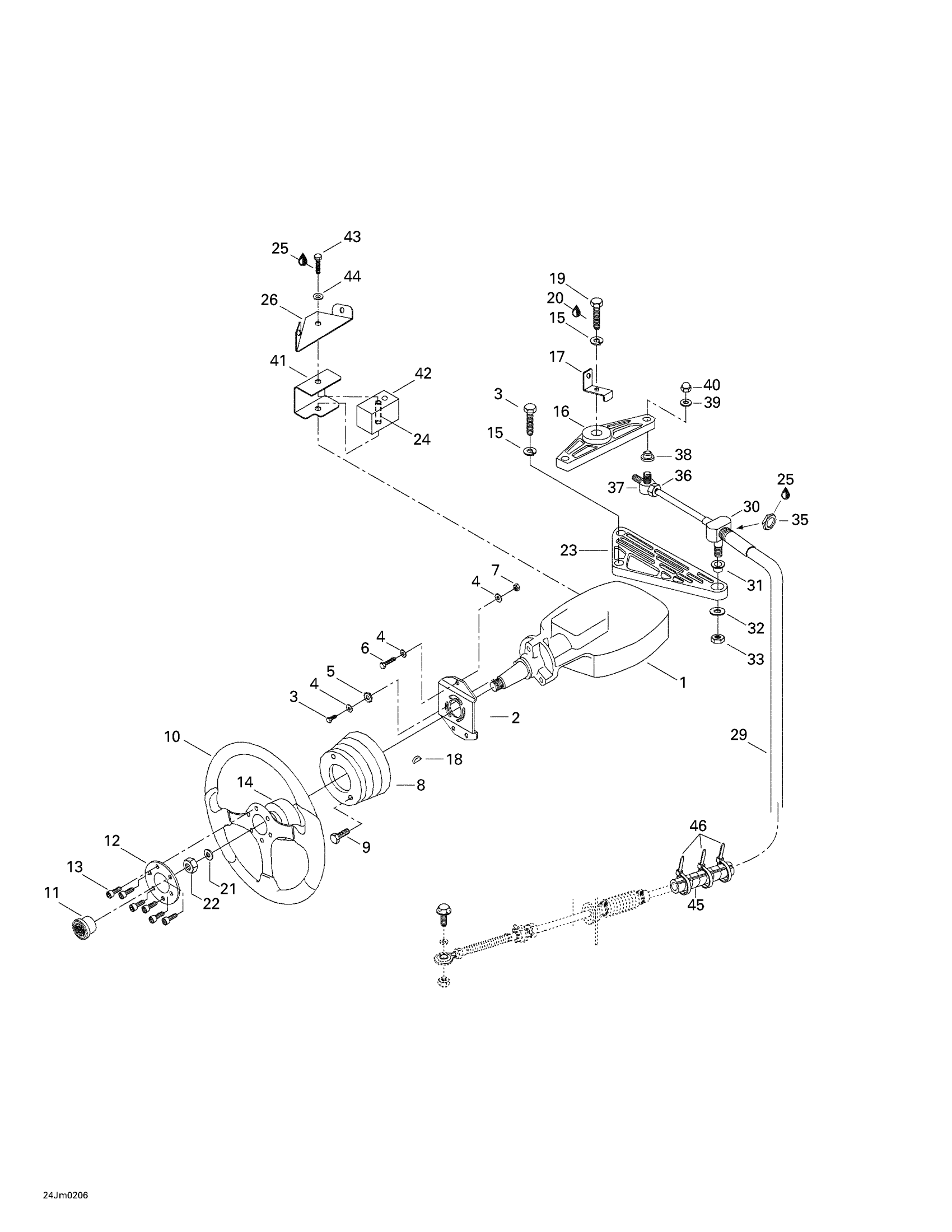

Sea-doo Islandia, 5709, 2002 07- Steering System Diagram
#
1
HELM ASS'Y - Call your local BRP dealership
204390244
Unavailable
2
Support
277000383
Unavailable
3
HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership
211000050
Unavailable
4
Stainless Flat Washer M6
234061600
$0.33
5
External Serrated Lock Washer 6 mm
234461608
$1.15
6
Hex. Screw M6 X 30
207163060
$1.48
7
Hex. Elastic Stop Nut M6
232561600
$1.15
8
COLLAR, BLACK - Call your local BRP dealership
204390030
Unavailable
9
SCREW 8-32 X 1-1/4 - Call your local BRP dealership
204390059
Unavailable
10
Steering | Includes 11 to 16
204390170
Unavailable
11
Center Cap
204390327
Unavailable
12
Center Ring
204390328
Unavailable
13
SCREW PACK - Call your local BRP dealership
204390329
Unavailable
14
Nylon Hub
204390330
Unavailable
15
Lock Washer 1/4”
211200025
$1.29
16
ARM - Call your local BRP dealership
204390040
Unavailable
17
Lower Clip
204390271
Unavailable
18
WOODRUFF KEY - Call your local BRP dealership
277000384
Unavailable
19
HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership
211000054
Unavailable
20
Loctite 243, 10 ml
293800060
$21.49
21
FLAT WASHER, STAINLESS - Call your local BRP dealership
211200006
Unavailable
22
LOCK NUT 1/2-20 - Call your local BRP dealership
211100021
Unavailable
23
CABLE SUPPORT - Call your local BRP dealership
277000458
Unavailable
24
Bushing
204130004
Unavailable
25
Loctite 243, 10 ml
293800060
$21.49
26
Cam Switch
204390339
Unavailable
27
Not Available As Spare Part - Friction Washer
Unavailable
28
Not Available As Spare Part - Friction Washer
Unavailable
29
STEERING CABLE - Call your local BRP dealership
204390212
Unavailable
30
PIVOT 3/8? - Call your local BRP dealership
277000461
Unavailable
31
Flanged Bushing
293350014
$12.99
32
Flat Washer 10 mm, Stainless
234001600
$1.15
33
LOCK NUT - Call your local BRP dealership
211100024
Unavailable
34
Not Available As Spare Part - Friction Washer
Unavailable
35
HEX. JAM NUT 5/8-18 - Call your local BRP dealership
204390053
Unavailable
36
HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models
277000439
Unavailable
37
PIVOT - Call your local BRP dealership
277000456
Unavailable
38
BUSHING - Call your local BRP dealership
293350012
Unavailable
39
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
40
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
41
Bumper Support
204390245
Unavailable
42
Bumper
204390246
Unavailable
43
HEX. SCREW 1/4-20 X 2-1/2 - Call your local BRP dealership
204100014
Unavailable
44
Flat Washer M6, Stainless
234062600
$0.77
45
SLIT CONDUIT 1 - Call your local BRP dealership This part replaces 204560132.
204130176
Unavailable
46
Tie-Rap 180 mm
414115200
$0.11
