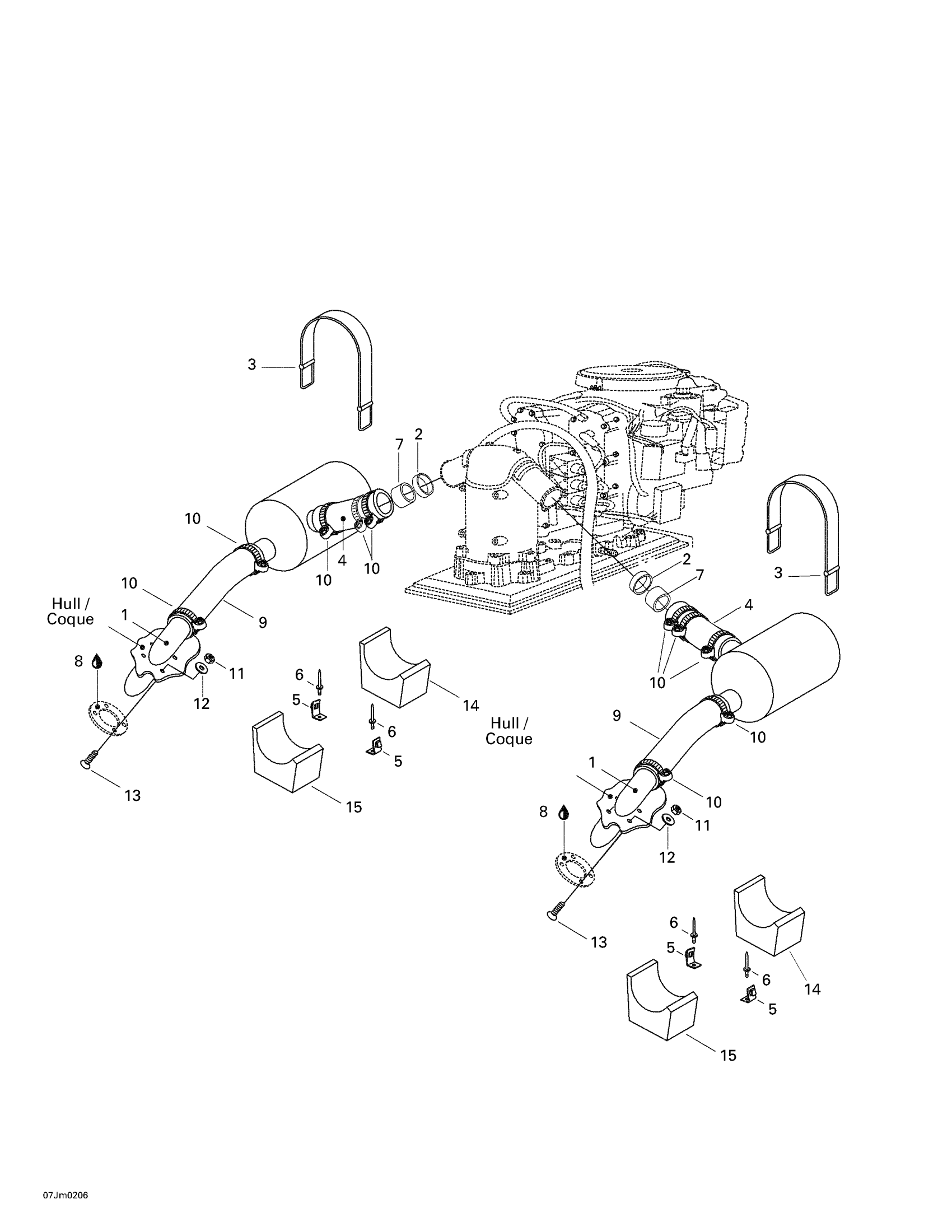

Sea-doo Islandia, 5709, 2002 Exhaust System Diagram

#

Description
Price

1

Exhaust Outlet

204340242

Unavailable

2

Exhaust Spacer

204340251

Unavailable

3

STRAP - Call your local BRP dealership

293850022

Unavailable

4

EXHAUST HOSE - Call your local BRP dealership | Islandia 5780

204340316

Unavailable

5

Strap Clip 90°

204060017

Unavailable

6

Pop Rivet 3/16"

293150008

$0.50

7

Exhaust Hose Liner

204340317

Unavailable

8

Silicone Sealant 51388, 300 ml

296000309

$36.99

9

Exhaust Hose | Islandia 5780

204340241

Unavailable

10

Tridon Clamp

293650112

$12.99

11

Hex. Elastic Stop Nut M6

232561600

$1.15

12

Flat Washer M6, Stainless

234062600

$0.77

13

Phillips Screw M6 X 35 | W/O Weedless System

208563560

$2.00

14

Front Muffler Support

204340243

Unavailable

15

Muffler Support, Rear | Islandia 5780

204340244

Unavailable
