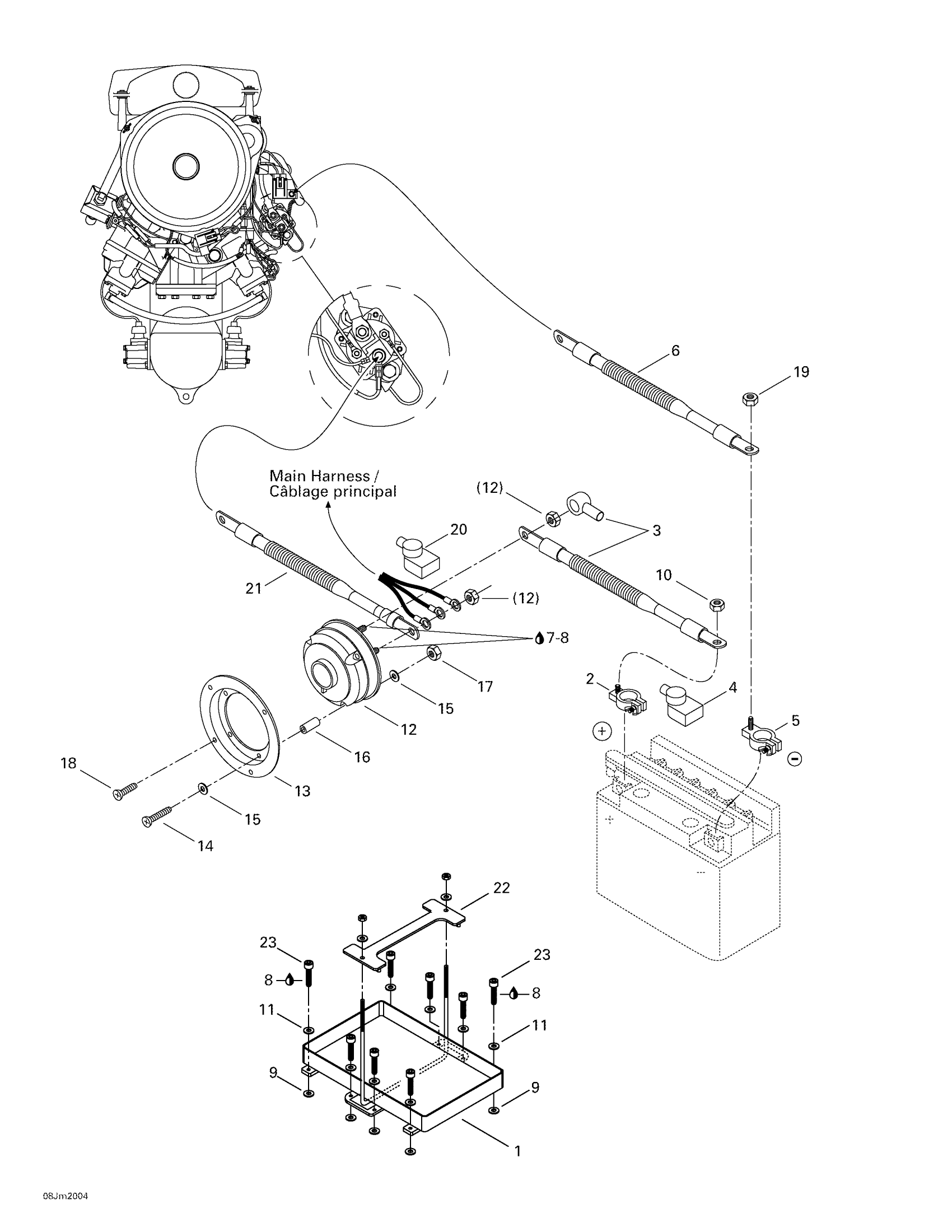

Sea-doo Islandia, 5689/5696, 2000 Electrical System Diagram

#

Description
Price

1

BATTERY SUPPORT KIT - Call your local BRP dealership

204470419

Unavailable

2

POSITIVE BATTERY POLE - Call your local BRP dealership

204470349

Unavailable

3

POSITIVE CABLE, RED - Call your local BRP dealership

204470425

Unavailable

4

RED BOOT - Call your local BRP dealership

204470269

Unavailable

5

NEGATIVE BATTERY POLE - Call your local BRP dealership

204470348

Unavailable

6

Battery Ground Cable

204470427

Unavailable

7

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

8

Loctite 243, 10 ml

293800060

$21.49

9

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

10

HEX. NUT 3/8-16 - Call your local BRP dealership

211100063

Unavailable

11

FLAT WASHER 6 MM - Call your local BRP dealership

234060600

Unavailable

12

Battery Switch

204470329

Unavailable

13

SWITCH SUPPORT - Call your local BRP dealership

204470259

Unavailable

14

Phillips Screw M5 X 25

208652560

$3.39

15

Flat Washer M5, Stainless

234051600

$0.77

16

NYLON SPACER - Call your local BRP dealership

204470330

Unavailable

17

Hex. Elastic Nut M5 | X

232551600

$1.15

18

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

19

HEX. NUT 5/16?-18 - Call your local BRP dealership

204100052

Unavailable

20

Red Boot

204470388

Unavailable

21

Switch Cable, Positive

204470426

Unavailable

22

TOP BATTERY SUPPORT - Call your local BRP dealership

204471290

Unavailable

23

Socket Head Screw M6 X 25

205062560

$1.69
