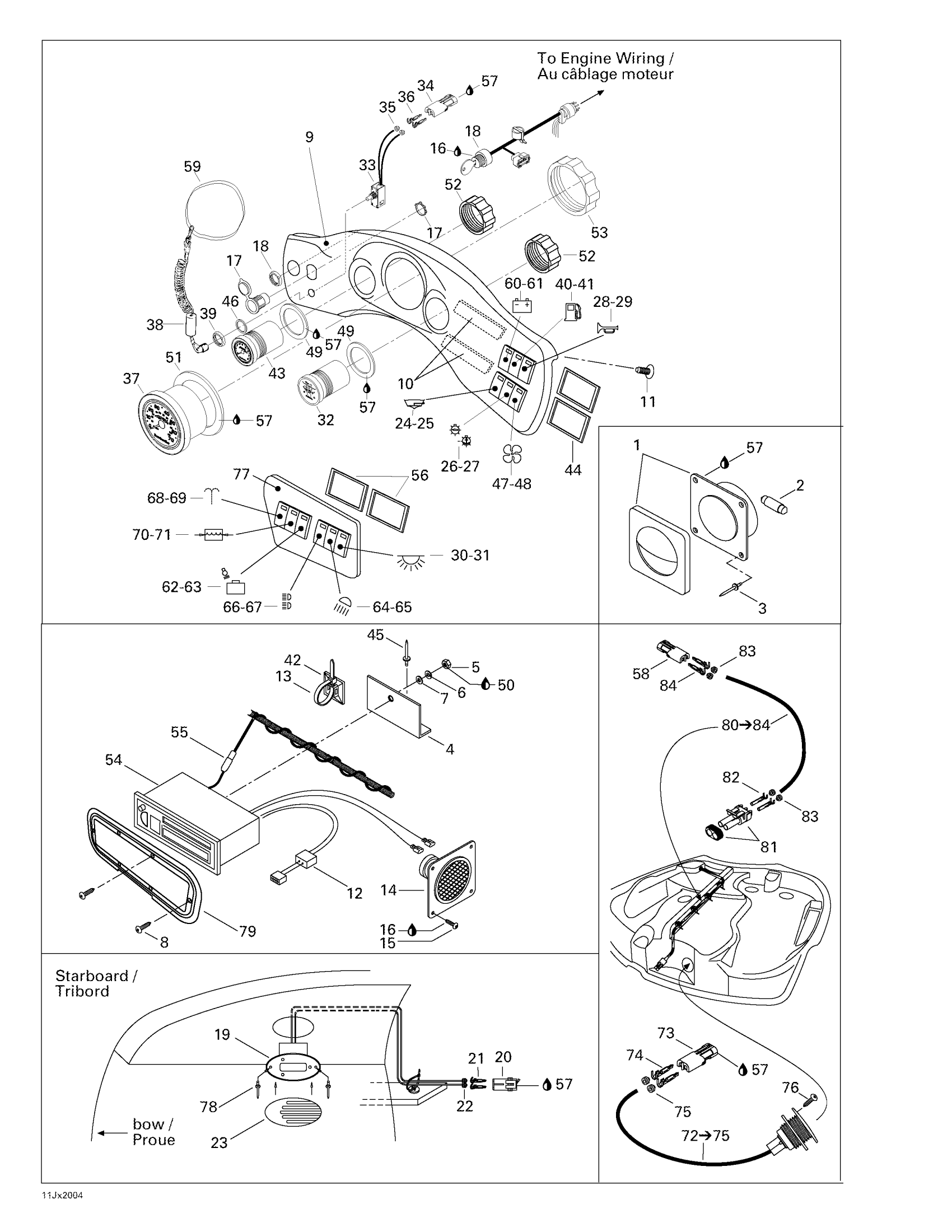

Sea-doo Islandia, 5689/5696, 2000 Electrical Accessories 1 Diagram

#

Description
Price

1

Courtesy Light Ass'y | Includes 29 to 30

204470026

$47.49

2

BULB - Call your local BRP dealership

204470081

Unavailable

3

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

4

Radio Support

204470559

Unavailable

5

Hex. Nut M5

232051600

$1.15

6

Helical Lock Washer M5

234151601

$1.15

7

Flat Washer 5 mm, Stainless

234052600

$0.77

8

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

9

Fascia | Includes 9 - 11.

204470527

Unavailable

10

Double Side Tape

204070268

Unavailable

11

Black Dart

293730014

$0.99

12

Radio Harness

204470582

Unavailable

13

Tie Wrap 142 mm

293750002

$1.25

14

Speaker

204470378

Unavailable

15

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

16

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

17

DC Outlet

710001248

$37.99

18

Instrumentation Harness

204470462

Unavailable

19

Horn

204470418

Unavailable

20

Female Housing, 2 Circuits

409209500

$15.27

21

Female Terminal

278001014

$3.28

22

Wire Seal

278001013

$3.28

23

Horn Cover

204470548

Unavailable

24

BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership

204470099

Unavailable

25

Gasket

204470132

Unavailable

26

LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470100

Unavailable

27

Gasket

204470132

Unavailable

28

HORN SWITCH ASS'Y - Call your local BRP dealership

204470101

$49.99

29

Gasket

204470132

Unavailable

30

COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470102

Unavailable

31

Gasket

204470132

Unavailable

32

Oil/Fuel Gauge

204470391

Unavailable

33

Safety Switch | Includes 17 - 20.

204470463

Unavailable

34

Female Housing, 2 Circuits

278000217

$9.59

35

Wire Seal

278000218

$4.39

36

Male Terminal | XT Models

278000222

$3.19

37

Speedometer Gauge

204470561

Unavailable

38

Safety Lanyard

278001431

$47.49

39

Safety Switch Nut

278000099

Unavailable

40

Fuel Tank Reserve Switch | Includes 40 - 41.

204470103

Unavailable

41

Gasket

204470132

Unavailable

42

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

43

Tachometer Gauge

204470466

Unavailable

44

LOCKING PLATE - Call your local BRP dealership

204470343

Unavailable

45

Pop Rivet 3/16"

204000081

$1.49

46

FLAT WASHER - Call your local BRP dealership

204100027

Unavailable

47

VENTILATION SWITCH ASS'Y - Call your local BRP dealership

204470011

Unavailable

48

Gasket

204470132

Unavailable

49

Gasket

204470308

Unavailable

50

Loctite 243, 10 ml

293800060

$21.49

51

Gasket

204470309

Unavailable

52

Gauge Nut

204470146

Unavailable

53

Gauge Nut

204470171

Unavailable

54

Radio Compact Disk | CHALLENGER 1800 (5446).

204470554

Unavailable

55

Antenna

204470380

Unavailable

56

LOCKING PLATE - Call your local BRP dealership

204470343

Unavailable

57

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

58

Female Housing, 2 Circuits

278000217

$9.59

59

Safety Strap

204470025

Unavailable

60

BATTERY SWITCH - Call your local BRP dealership | Includes 53 to 54

204470544

Unavailable

61

Gasket

204470132

Unavailable

62

LIGHT SWITCH - Call your local BRP dealership | Includes 51 to 52

204470402

Unavailable

63

Gasket

204470132

Unavailable

64

LIGHT SWITCH, BOARDING - Call your local BRP dealership | Includes 47 to 48

204470403

Unavailable

65

Gasket

204470132

Unavailable

66

LIGHT SWITCH, DOCKING - Call your local BRP dealership | Includes 49 to 50

204470404

Unavailable

67

Gasket

204470132

Unavailable

68

SWITCH, SMALL POOL PUMP - Call your local BRP dealership | Includes 53 to 54

204470405

Unavailable

69

Gasket

204470132

Unavailable

70

SWITCH, PASSENGER WATER PUMP - Call your local BRP dealership | Includes 54 to 55

204470406

Unavailable

71

Gasket

204470132

Unavailable

72

Engine Compartment Light | Includes 72 - 75.

204470411

Unavailable

73

Female Housing, 2 Circuits

278000217

$9.59

74

Male Terminal | XT Models

278000222

$3.19

75

Wire Seal

278000218

$4.39

76

Hex. Flange Screw K40 X 25

241142560

$2.64

77

Switch Panel

204470401

Unavailable

78

Pop Rivet 3/16"

293150005

$0.52

79

Radio Cover

204470535

Unavailable

80

LIGHT HARNESS - Call your local BRP dealership

204470551

Unavailable

81

Male Connector, 2 Circuits

278000220

$15.49

82

Female Terminal

409007300

$0.45

83

Wire Seal

278000218

$4.39

84

Male Terminal | XT Models

278000222

$3.19
