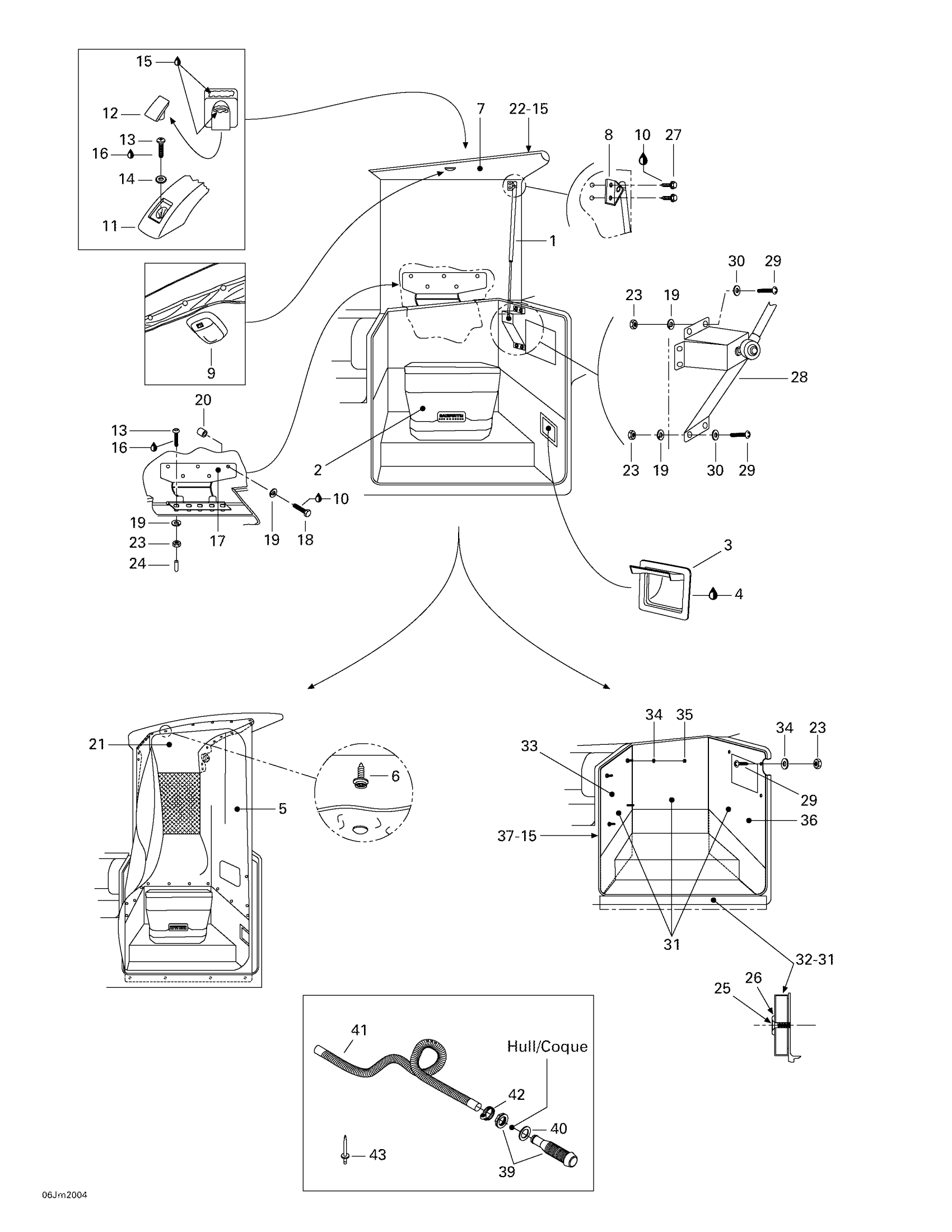

Sea-doo Islandia, 5689/5696, 2000 Portable Toilet Diagram

#

Description
Price

1

Cylinder

204070897

Unavailable

2

PORTABLE TOILET - Call your local BRP dealership

204070636

Unavailable

3

Paper Holder

204070637

Unavailable

4

Silicone Sealant 51388, 300 ml

296000309

$36.99

5

Toilet Curtain

204071013

Unavailable

6

Threaded Stud 5/8”

204100046

Unavailable

7

Toilet Door

204070761

Unavailable

8

CYLINDER SUPPORT - Call your local BRP dealership

291000654

Unavailable

9

Toilet Lamp

204470413

Unavailable

10

Loctite 243, 10 ml

293800060

$21.49

11

Handle Grip (Palma Blue) | Includes 22 - 23.

204070544

Unavailable

12

Snap Cap (Palma Blue)

204070545

Unavailable

13

Socket Screw M6 X 40

205464060

$2.22

14

Stainless Flat Washer M6

234061600

$0.33

15

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

16

Loctite 243, 10 ml

293800060

$21.49

17

TOILER DOOR HINGE - Call your local BRP dealership

204070642

Unavailable

18

Hex. Screw M6 X 16

207161660

$1.59

19

Lock Washer Helical M6

234161601

$1.15

20

SPACER 3.2 MM - Call your local BRP dealership

204070047

Unavailable

21

Headliner, Toilet Door

204070764

Unavailable

22

Trim, White, 7/16”, Meter

204070446

Unavailable

23

Hex. Elastic Stop Nut M6

232561600

$1.15

24

Cap

204070947

Unavailable

25

PHILLIPS TAPPING SCREW M10 X 2 - Call your local BRP dealership

204100056

Unavailable

26

FINITION WASHER - Call your local BRP dealership

204100057

Unavailable

27

SCREW M5 X 30 - Call your local BRP dealership

205453046

Unavailable

28

CYLINDER SUPPORT, TOILET - Call your local BRP dealership

204070765

Unavailable

29

PHILLIPS SCREW M6 X 30 - Call your local BRP dealership

208663060

Unavailable

30

FLAT WASHER 6 MM - Call your local BRP dealership

234060600

Unavailable

31

Headliner, Toilet Door

204070764

Unavailable

32

LOWER DOOR COVER - Call your local BRP dealership

204070779

Unavailable

33

PLASTIC FORM, FRONT BULKHEAD - Call your local BRP dealership

204071028

Unavailable

34

Flat Washer M6, Stainless

234062600

$0.77

35

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

36

PLASTIC FORM, REAR BULKHEAD - Call your local BRP dealership

204070776

Unavailable

37

Rubber Trim

204070752

Unavailable

38

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

39

Fitting

293710162

$13.49

40

GASKET - Call your local BRP dealership

293250028

Unavailable

41

BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership

291001206

Unavailable

42

Norma Clamp

293650080

Unavailable

43

Pop Rivet 3/16”

204100051

Unavailable
