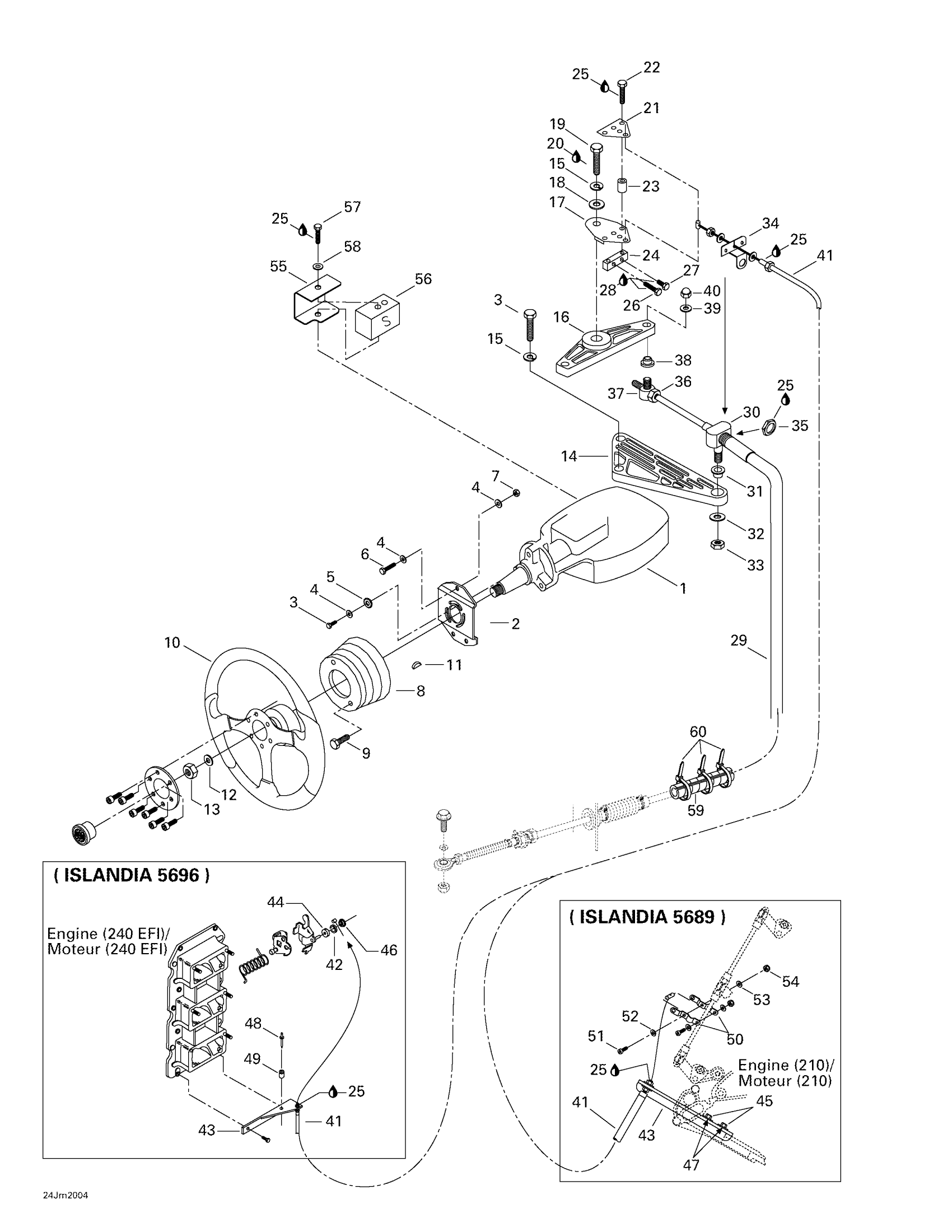

Sea-doo Islandia, 5689/5696, 2000 Steering System Diagram

#

Description
Price

1

HELM ASS'Y - Call your local BRP dealership

204390244

Unavailable

2

Support

277000383

Unavailable

3

HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership

211000050

Unavailable

4

Stainless Flat Washer M6

234061600

$0.33

5

External Serrated Lock Washer 6 mm

234461608

$1.15

6

Hex. Screw M6 X 30

207163060

$1.48

7

Hex. Elastic Stop Nut M6

232561600

$1.15

8

COLLAR, BLACK - Call your local BRP dealership

204390030

Unavailable

9

SCREW 8-32 X 1-1/4 - Call your local BRP dealership

204390059

Unavailable

10

Steering | Includes 11 to 16

204390170

Unavailable

11

WOODRUFF KEY - Call your local BRP dealership

277000384

Unavailable

12

FLAT WASHER, STAINLESS - Call your local BRP dealership

211200006

Unavailable

13

LOCK NUT 1/2-20 - Call your local BRP dealership

211100021

Unavailable

14

CABLE SUPPORT - Call your local BRP dealership

277000458

Unavailable

15

Lock Washer 1/4”

211200025

$1.29

16

ARM - Call your local BRP dealership

204390040

Unavailable

17

Lower Clip

204390231

Unavailable

18

Spacer

204390057

Unavailable

19

HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership

211000054

Unavailable

20

Loctite 271, 10 ml

293800005

$26.99

21

UPPER CLIP - Call your local BRP dealership

204390267

Unavailable

22

Hex. Screw M6 X 25

207162560

$1.47

23

SPACER 6.7 MM - Call your local BRP dealership

277000584

Unavailable

24

Adjustment Block

204390056

Unavailable

25

Loctite 243, 10 ml

293800060

$21.49

26

Hex. Screw M5 X 35

207153560

Unavailable

27

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152560

Unavailable

28

Not Available As Spare Part - Friction Washer

Unavailable

29

STEERING CABLE - Call your local BRP dealership

204390212

Unavailable

30

PIVOT 3/8? - Call your local BRP dealership

277000461

Unavailable

31

Flanged Bushing

293350014

$12.99

32

Flat Washer 10 mm, Stainless

234001600

$1.15

33

LOCK NUT - Call your local BRP dealership

211100024

Unavailable

34

Cable Support | CHALLENGER 1800 (5774).

204390232

Unavailable

35

HEX. JAM NUT 5/8-18 - Call your local BRP dealership

204390053

Unavailable

36

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

Unavailable

37

PIVOT - Call your local BRP dealership

277000456

Unavailable

38

BUSHING - Call your local BRP dealership

293350012

Unavailable

39

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

40

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

41

Low Speed Cable Control | CHALLENGER 1800 (5774).

204390236

Unavailable

Low Speed Cable Control | CHALLENGER 2000 (5695).

204390179

Unavailable

42

Ring Retainer | UTOPIA 240 EFI.

204390180

Unavailable

43

Cable Support | CHALLENGER 1800 (5774).

204390233

Unavailable

Support Cable (Low Speed) | UTOPIA 240 EFI.

204390181

Unavailable

44

CABLE RETAINER (LOW SPEED) - Call your local BRP dealership | UTOPIA 240 EFI.

204390268

Unavailable

45

HEX. SCREW M6 X 12 - Call your local BRP dealership

207151260

Unavailable

46

Cable Cover | UTOPIA 240 EFI.

204390269

$76.99

47

Helical Lock Washer M5

234151601

$1.15

48

Pop RIvet 1/8 X ,375

293150285

$0.33

49

Stopper - Rubber | UTOPIA 240 EFI.

204390255

Unavailable

50

Cable Attachment | CHALLENGER 1800 (5774).

204390234

Unavailable

51

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

205051660

Unavailable

52

Helical Lock Washer M5

234151601

$1.15

53

Flat Washer M5, Stainless

234051600

$0.77

54

Hex. Elastic Nut M5 | X

232551600

$1.15

55

Bumper Support

204390245

Unavailable

56

Bumper

204390246

Unavailable

57

HEX. SCREW 1/4-20 X 2-1/2 - Call your local BRP dealership

204100014

Unavailable

58

Flat Washer M6, Stainless

234062600

$0.77

59

SLIT CONDUIT 1 - Call your local BRP dealership This part replaces 204560132.

204130176

Unavailable

60

Tie-Rap 180 mm

414115200

$0.11
