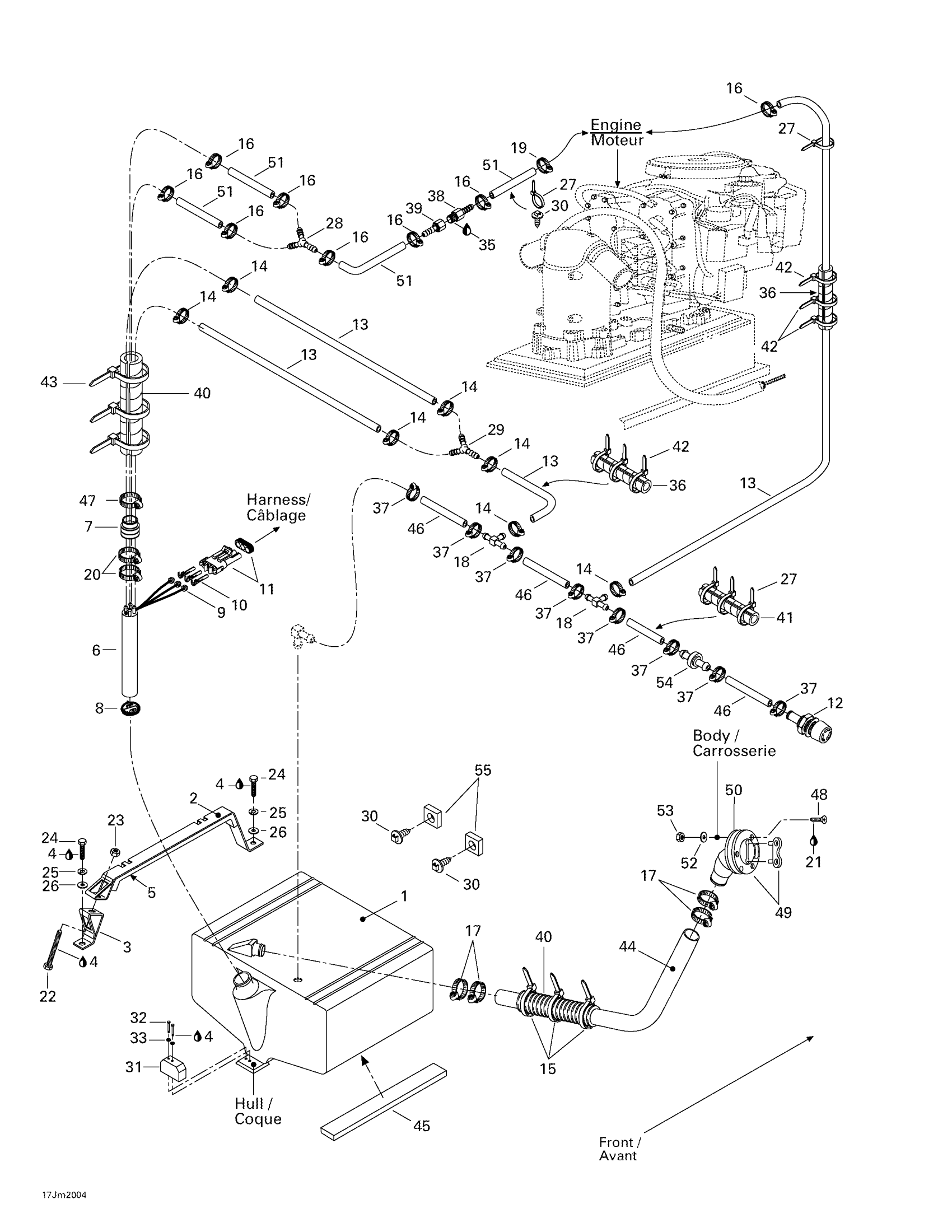

Sea-doo Islandia, 5689/5696, 2000 Fuel System Diagram

#

Description
Price

1

FUEL TANK, PLASTIC - Call your local BRP dealership

204560113

Unavailable

2

FUEL TANK STRAP - Call your local BRP dealership

204560114

Unavailable

3

TANK BRACKET - Call your local BRP dealership

275500252

Unavailable

4

Loctite 243, 10 ml

293800060

$21.49

5

Protector Pad

204560029

Unavailable

6

Baffle Pick-up Ass'y | Includes 6 - 11.

204560130

Unavailable

7

Fuel Tube Adaptor

204560066

Unavailable

8

FUEL FILTER - Call your local BRP dealership

275500397

Unavailable

9

Wire Seal

278000218

$4.39

10

Female Terminal

278000223

$3.19

11

Male Housing, 3 Circuits

278000273

$9.59

12

FUEL VENT - Call your local BRP dealership

204560126

Unavailable

13

Hose 6 mm (Meter)

204560099

Unavailable

14

Norma Clamp

293650088

Unavailable

15

Tie Wrap 368 mm

293750008

$1.04

16

NORMA CLAMP - Call your local BRP dealership

293650087

Unavailable

17

Norma Clamp

293650077

$7.41

18

T-Fitting

204560038

Unavailable

19

Tridon Gear Clamp

293650172

$3.09

20

Norma Clamp

293650081

$12.18

21

Loctite 271, 10 ml

293800005

$26.99

22

HEX. SCREW M8 X 55 - Call your local BRP dealership

207185560

Unavailable

23

Hex. Elastic Nut M8

232581600

$1.48

24

Hex. Screw M8 X 30

207183060

$1.58

25

Lock Washer 8 mm, Stainless

234181601

$0.55

26

Flat Washer 8 mm, Stainless

234082600

$2.43

27

Tie-Rap 180 mm

414115200

$0.11

28

Y-Fitting

204550001

Unavailable

29

Y-Fitting

293710059

$9.69

30

Black, Dart

293730006

$0.99

31

Bumper

204390246

Unavailable

32

HEX. SCREW M8 X 65 - Call your local BRP dealership

207086560

Unavailable

33

Stainless, Flat Washer 8 mm

234081600

$0.55

34

Silicone Sealant 51388, 300 ml

296000309

$36.99

35

Was 293800013 Loctite 56765

219704454

$65.99

36

SLIT CONDUIT, METER - Call your local BRP dealership

204550028

Unavailable

37

NORMA CLAMP - Call your local BRP dealership

293650069

Unavailable

38

Anti-Siphon Valve | CHALLENGER 1800 (5774).

204560122

Unavailable

39

HOSE FITTING - Call your local BRP dealership | CHALLENGER 1800 (5774).

293700038

Unavailable

40

Slit Conduit, Meter

204560131

Unavailable

41

SLIT CONDUIT 1 - Call your local BRP dealership This part replaces 204560132.

204130176

Unavailable

42

Tie Wrap 142 mm

293750002

$1.25

43

Tie Wrap 368 mm

293750008

$1.04

44

Filler Neck Hose

204560134

Unavailable

45

PROTECTOR PAD - Call your local BRP dealership

204560115

Unavailable

46

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

47

Norma Clamp

293650077

$7.41

48

Phillips Screw M5 X 3

208553060

Unavailable

49

Filler Neck

204560117

Unavailable

50

GASKET - Call your local BRP dealership

204560119

Unavailable

51

Hose 5/16"

204560070

Unavailable

52

Flat Washer M5, Stainless

234051600

$0.77

53

Hex. Elastic Nut M5 | X

232551600

$1.15

54

VENT FUEL SURGE PROTECTOR - Call your local BRP dealership

204560101

Unavailable

55

Rubber Pad

274000354

Unavailable
