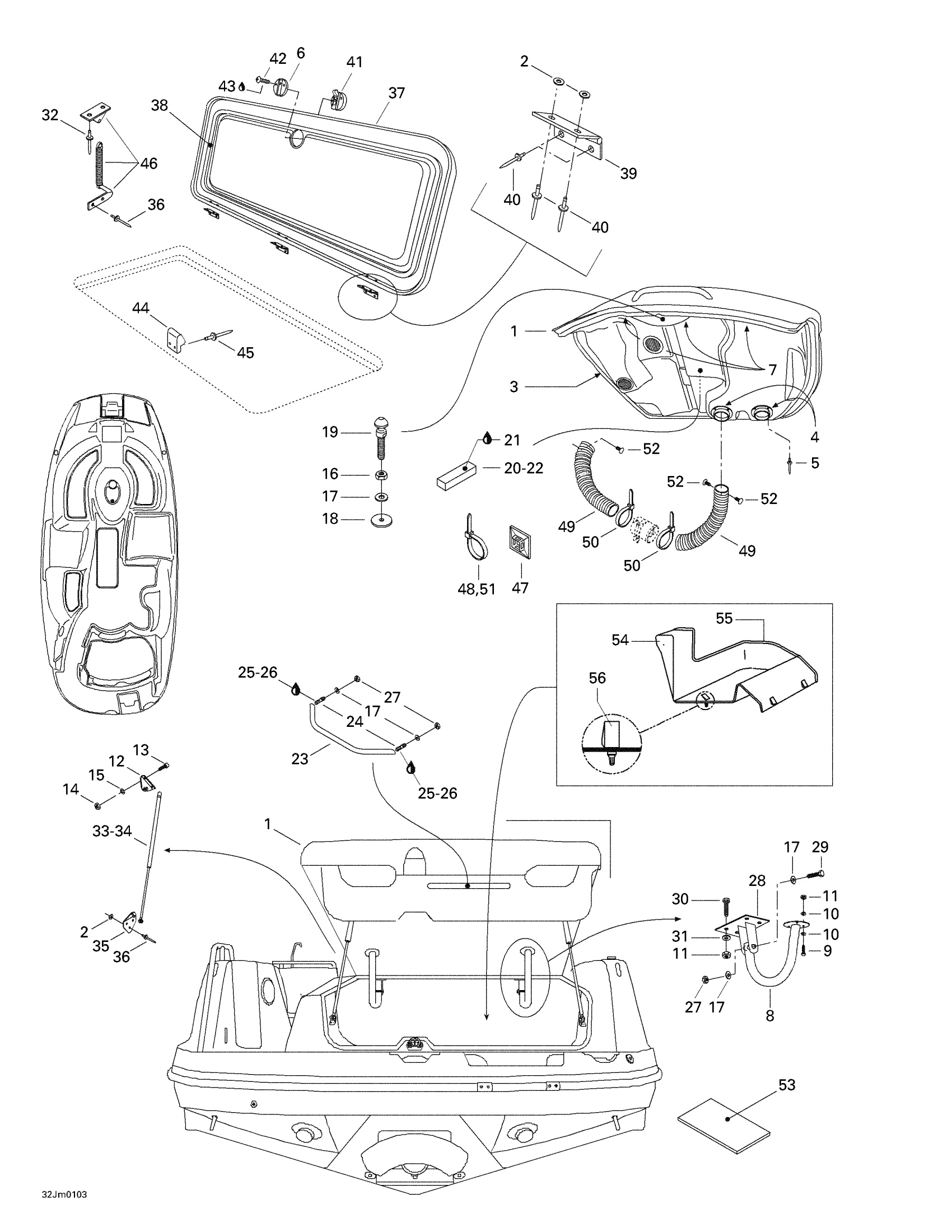

Sea-doo Islandia, 5449, 2001 Engine And Center Cover Diagram

#

Description
Price

1

Engine Cover

204071147

Unavailable

2

Flat Washer M5, Stainless

234051600

$0.64

3

Was 293200017 Neoprene Seal

219704365

$118.27

4

Ventilator Adaptor

204070913

$58.18

5

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

6

CUP BRACKET - Call your local BRP dealership

204070958

Unavailable

7

Black Dart

293730014

$0.81

8

ENGINE COVER HINGE - Call your local BRP dealership

204070785

Unavailable

9

Hex. Screw M6 X 65

207166560

$2.63

10

Flat Washer M6, Stainless

234062600

$0.64

11

Hex. Elastic Stop Nut M6

232561600

$0.92

12

CYLINDER SUPPORT - Call your local BRP dealership

291000654

Unavailable

13

SOCKET HEAD SCREW M5 X 50 - Call your local BRP dealership

205455060

Unavailable

14

Hex. Elastic Nut M5 | X

232551600

$0.91

15

Flat Washer 5 mm, Stainless

234052600

$0.64

16

Hex. Jam Nut M10

232100600

$1.85

17

Flat Washer 10 mm, Stainless

234002600

$1.85

18

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

19

Latch Stud

204100065

Unavailable

20

FOAM 2-1/2 X 2-1/2 X 18.5 - Call your local BRP dealership

204070903

Unavailable

21

Silicone Sealant 51388, 300 ml

296000309

$35.72

22

FOAM 21/2 X 5 X 18 - Call your local BRP dealership

204070904

Unavailable

23

Stern Rail

204071127

Unavailable

24

Threaded Stud

204100031

Unavailable

25

Loctite 271, 10 ml

293800005

$20.77

26

Was 293800041 Loctite Primer 7649

219704458

$41.99

27

HEX. ELASTIC NUT 3/8 - Call your local BRP dealership

204100032

Unavailable

28

HINGE BRACKET, ENGINE COVER - Call your local BRP dealership

204070925

Unavailable

29

HEX. SCREW 3/8?-16 X 2-1/2? - Call your local BRP dealership

204100053

Unavailable

30

Hex. Screw M6 X 40

207164060

$2.74

31

Stainless Flat Washer M6

234061600

$0.25

32

Pop Rivet 3/16"

204000081

$1.31

33

LH Retainer Cylinder

204071085

Unavailable

34

RH Retainer Cylinder

204071086

Unavailable

35

Shock Support

291000615

Unavailable

36

Pop Rivet 3/16"

293150043

$1.61

37

Center Cover

204071142

Unavailable

38

TRAY SEAL, METER - Call your local BRP dealership

293200032

Unavailable

39

HINGE - Call your local BRP dealership

204072601

Unavailable

40

Pop Rivet 3/16"

293150088

$0.91

41

LATCH, WHITE - Call your local BRP dealership

204070120

Unavailable

42

SCREW M5 X 16 - Call your local BRP dealership

208651660

Unavailable

43

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

Unavailable

44

LATCH BRACKET - Call your local BRP dealership

204070050

Unavailable

45

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

46

SPRING SEAT - Call your local BRP dealership

204000071

Unavailable

47

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

48

Tie Wrap 142 mm

293750002

$0.88

Tie-Rap 180 mm

414115200

$0.09

49

Was 204050122 Vent Hose 4"

219704358

$23.10

50

Tie Rap

293750019

$2.90

51

Tie-Rap 180 mm

414115200

$0.09

52

Black, Dart

293730006

$0.81

53

Deck Carpet

204071093

Unavailable

54

Battery Cover

204050402

Unavailable

55

SLIT CONDUIT, METER - Call your local BRP dealership

204550015

Unavailable

56

LATCH ASS'Y - Call your local BRP dealership

204050309

Unavailable
