Partiron

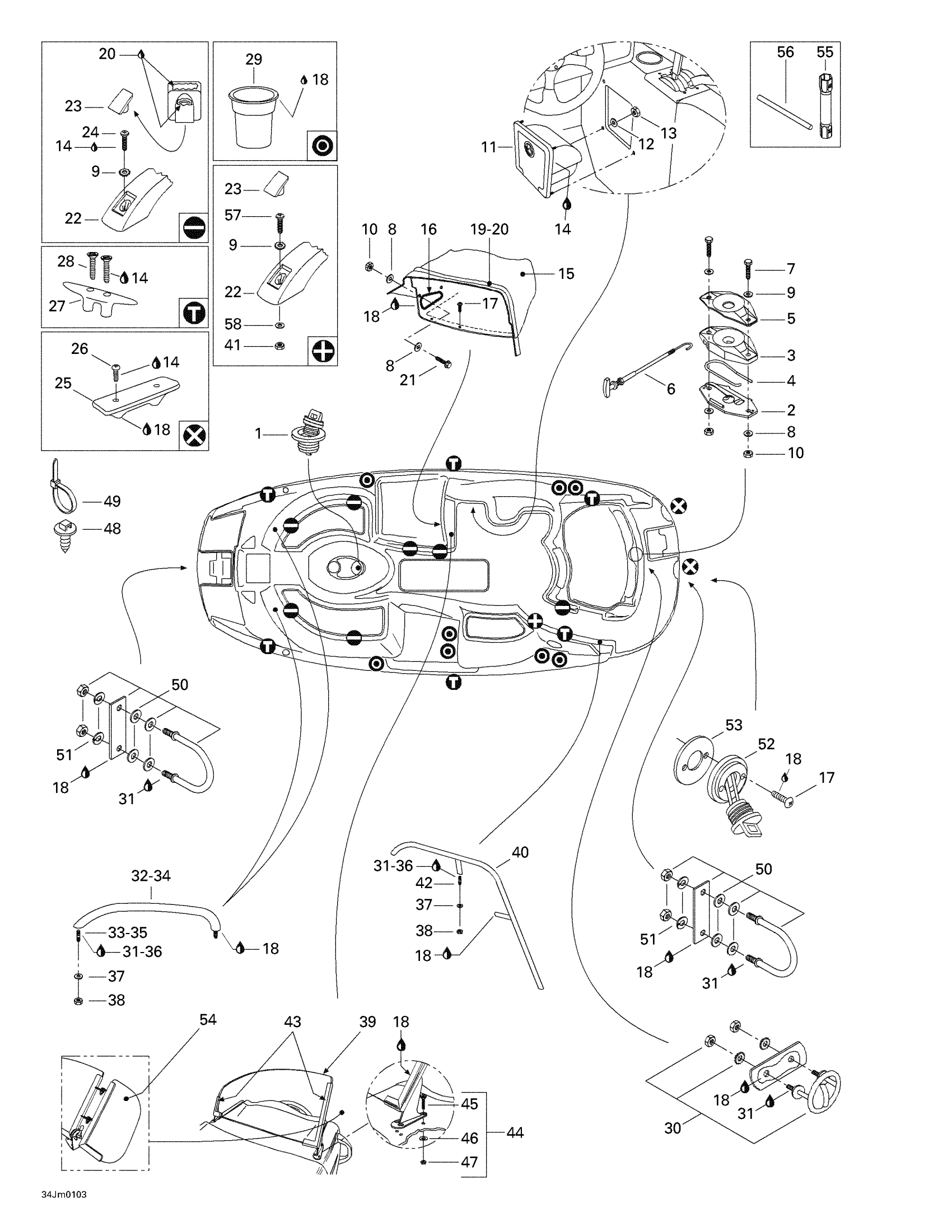

Sea-doo Islandia, 5449, 2001 Body And Accessories 1 Diagram

#

Description
Price

1

Drain Plug

204070857

Unavailable

2

LATCH COVER - Call your local BRP dealership

204070036

Unavailable

3

LATCH BASE - Call your local BRP dealership

204070037

Unavailable

4

SPRING - Call your local BRP dealership

204070038

Unavailable

5

LATCH PROTECTOR - Call your local BRP dealership

204070952

Unavailable

6

LATCH CABLE - Call your local BRP dealership

204070049

Unavailable

7

Hex. Screw M6 X 35

207163560

$1.17

8

Flat Washer M6, Stainless

234062600

$0.64

9

Stainless Flat Washer M6

234061600

$0.25

10

Hex. Elastic Stop Nut M6

232561600

$0.92

11

GLOVE BOX - Call your local BRP dealership

204071084

Unavailable

12

Flat Washer 5 mm, Stainless

234052600

$0.64

13

NEEDS DESCRIPTION This part replaces 204100034.

0460000

Unavailable

14

Loctite 243, 10 ml

293800060

$20.77

15

Console

204070983

Unavailable

16

SLIT CONDUIT 1 - Call your local BRP dealership This part replaces 204560132.

204130176

Unavailable

17

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

18

Silicone Sealant 51388, 300 ml

296000309

$35.72

19

TRIM, WHITE - Call your local BRP dealership

204050048

Unavailable

20

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

21

Hex. Screw M6 X 30

207163060

$1.25

22

Handle Grip (Palma Blue) | Includes 22 - 23.

204070544

Unavailable

23

Snap Cap (Palma Blue)

204070545

Unavailable

24

SOCKET SCREW M6 X 25 - Call your local BRP dealership

205462560

Unavailable

25

GRIP HANDLE, BLACK - Call your local BRP dealership

204070194

Unavailable

26

SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership

205364060

Unavailable

27

CLEAT - Call your local BRP dealership | STD

204070592

Unavailable

28

Socket Head Screw M6 X 70

205367060

Unavailable

29

CUP HOLDER - Call your local BRP dealership | STD

291000619

Unavailable

30

Ski Tow Hook

204070206

Unavailable

31

Loctite 271, 10 ml

293800005

$20.77

32

LH Bow Rail Ass’y | Includes 16 to 19

204070605

Unavailable

33

STUD 3/8?-16 X 2? - Call your local BRP dealership

204100050

Unavailable

34

RH Bow Rail Ass’y | Includes 22 to 25

204070606

Unavailable

35

STUD 3/8?-16 X 2? - Call your local BRP dealership

204100050

Unavailable

36

Was 293800041 Loctite Primer 7649

219704458

$41.99

37

Flat Washer 10 mm, Stainless

234002600

$1.85

38

HEX. ELASTIC NUT 3/8 - Call your local BRP dealership

204100032

Unavailable

39

Front Windshield

204070858

Unavailable

40

Boarding Rail Ass'y | Includes 24 to 27

204071034

Unavailable

41

Hex. Elastic Stop Nut M6

232561600

$0.92

42

STUD 3/8?-16 X 2? - Call your local BRP dealership

204100050

Unavailable

43

Windshield Frame

204070984

Unavailable

44

Not Available As Spare Part - Friction Washer

Unavailable

45

Phillips Screw M6 X 25

208562560

$1.92

46

Stainless Flat Washer M6

234061600

$0.25

47

Elastic Stop Nut M6

232561414

$1.78

48

Mount Dart

293730040

$0.86

49

Tie Wrap 368 mm

293750008

$0.85

Tie-Rap 180 mm

414115200

$0.09

50

BOW EYE KIT 1/2? - Call your local BRP dealership

204050336

Unavailable

51

WASHER-LOCK HELICAL 1/2 - Call your local BRP dealership

204100048

Unavailable

52

Drain Plug

292000187

$10.21

53

GASKET - Call your local BRP dealership

293250030

Unavailable

54

Side Windshield

204070863

Unavailable

55

Socket Wrench

204630050

Unavailable

56

Steel Bar

204630051

Unavailable

57

Socket Head Screw M6 X 70

205367060

Unavailable

58

Flat Washer M6, Stainless

234062600

$0.64
