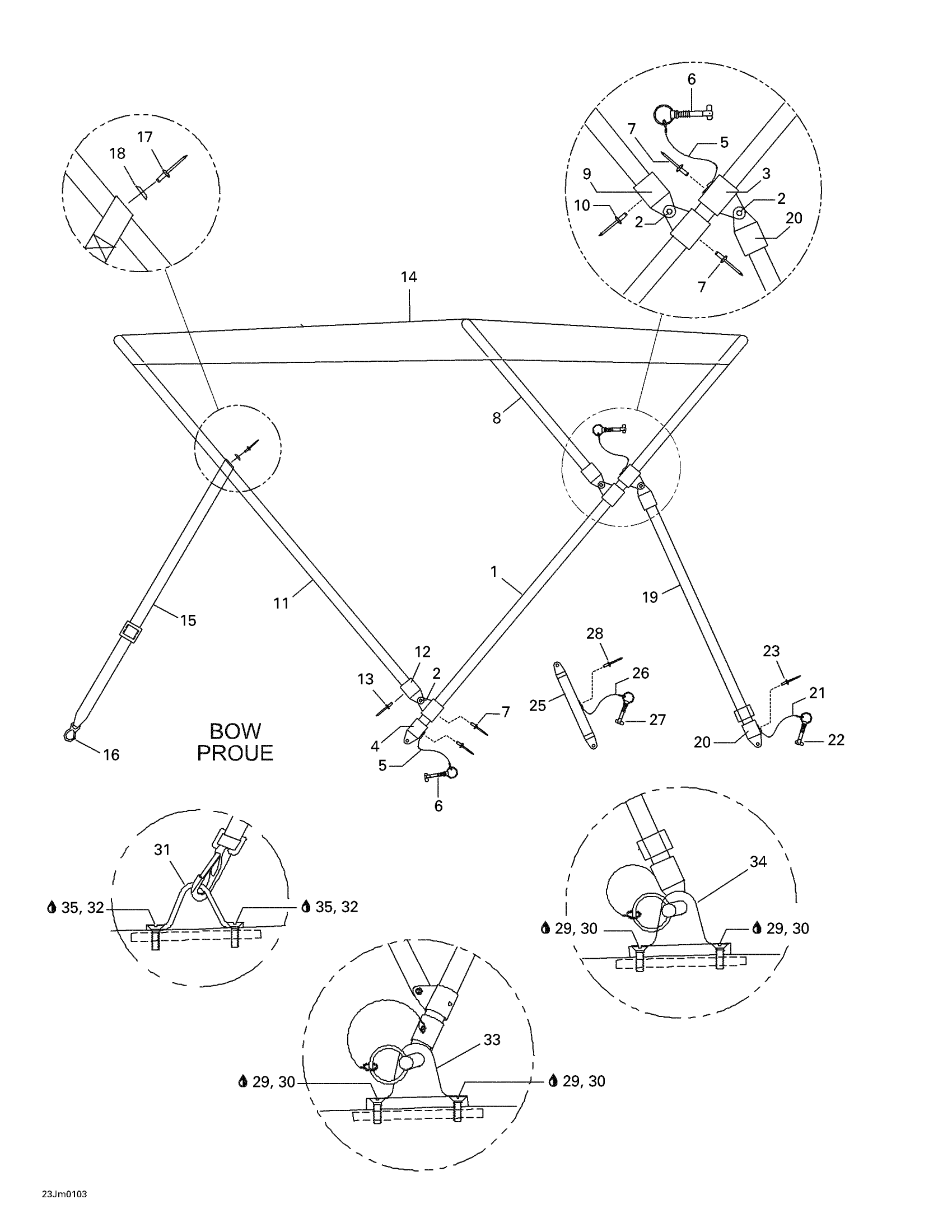

Sea-doo Islandia, 5449, 2001 Bimini Top Diagram
#
Description
Price
1
Rear Frame Ass’y | Includes 1 to 5
204071098
Unavailable
2
SCREW-PAN HD.1/4-20 SS - Call your local BRP dealership
204100066
Unavailable
3
Slide Fitting
204071171
Unavailable
4
External Fitting
204071101
Unavailable
5
Retaining Cable
204071012
Unavailable
6
Retaining Pin
204070960
Unavailable
8
Center Frame Ass’y | Includes 6 to 7
204071102
Unavailable
9
External Fitting
204071101
Unavailable
11
Front Frame Ass’y | Includes 8 to 9
204071104
Unavailable
12
External Fitting
204071101
Unavailable
14
Bimini Canvas
204071106
Unavailable
15
Bimini Strap Ass’y | Includes 11 to 12
204071008
Unavailable
16
Hook Snap
204071007
Unavailable
18
Countersunk Washer
204100068
Unavailable
19
Brace Ass’y, Port Side | Includes 14 to 17
204071109
Unavailable
Brace Ass’y, Starbord | Includes 14 to 17
204071112
Unavailable
20
External Fitting
204071101
Unavailable
21
Retaining Cable
204071012
Unavailable
22
Retaining Pin
204070960
Unavailable
24
Bimini Cover (Not Shown)
204071009
Unavailable
25
Storage Support Ass’y | Includes 19 to 22
204071113
Unavailable
26
Retaining Cable
204071012
Unavailable
27
Retaining Pin
204070960
Unavailable
30
PHILLIPS SCREW M5 X 30 - Call your local BRP dealership
208453060
Unavailable
31
Strap Tie
204070234
Unavailable
33
BIMINI BRACKET - Call your local BRP dealership
204070910
Unavailable
34
BIMINI BRACKET - Call your local BRP dealership
204071011
Unavailable
