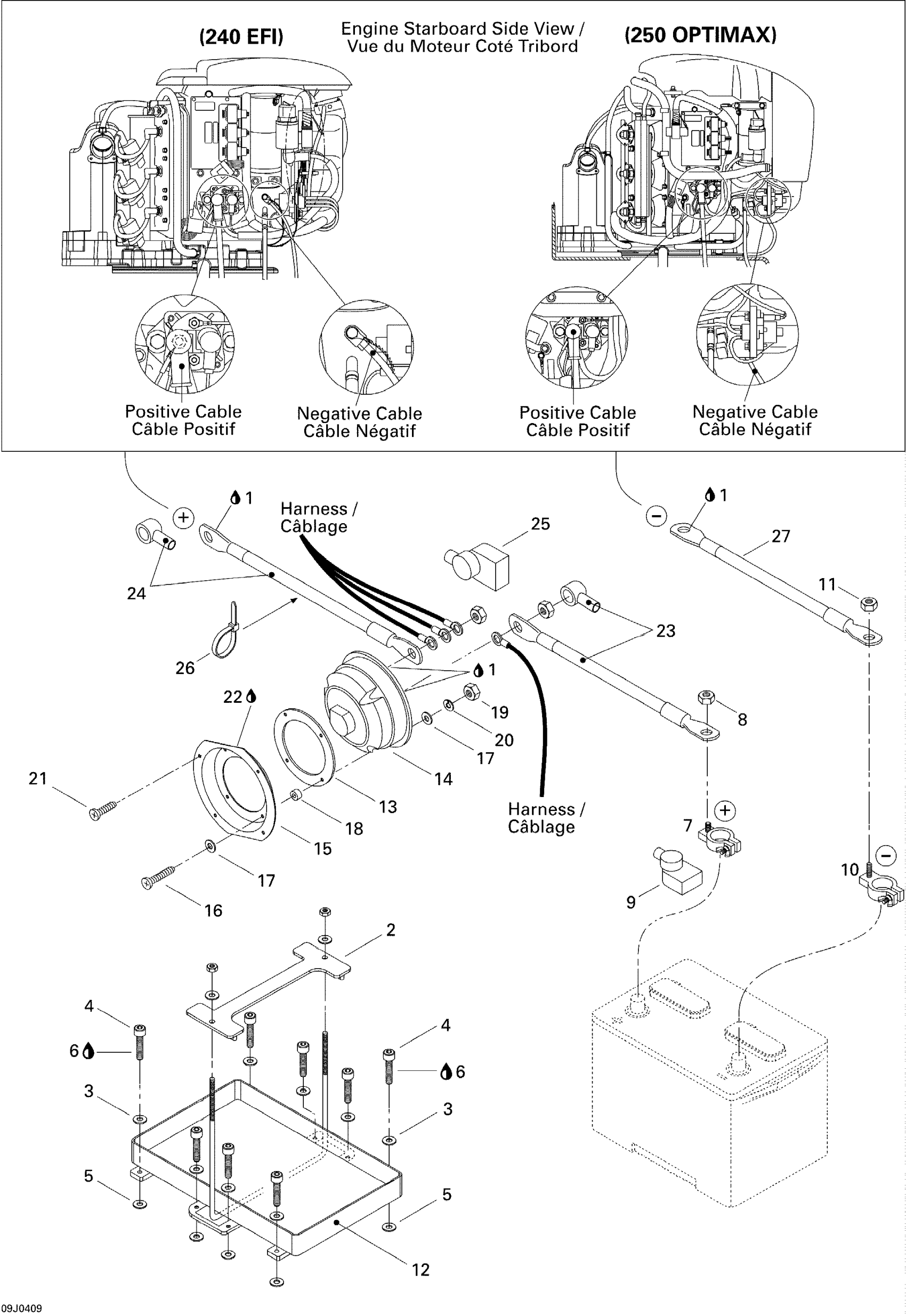

Sea-doo Islandia, 250 OPTI, 240 EFI, 2004 Electrical System Diagram
#
Description
Price
1
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
2
TOP BATTERY SUPPORT - Call your local BRP dealership
204471290
Unavailable
3
FLAT WASHER - Call your local BRP dealership
204100069
Unavailable
4
Socket Head Screw M6 X 25
205062560
Unavailable
5
FLAT WASHER, PLASTIC - Call your local BRP dealership
211200029
Unavailable
6
Loctite 243, 10 ml
293800060
Unavailable
7
POSITIVE BATTERY POLE - Call your local BRP dealership
204470349
Unavailable
8
HEX. NUT 3/8-16 - Call your local BRP dealership
211100063
Unavailable
9
RED BOOT - Call your local BRP dealership
204470269
Unavailable
10
NEGATIVE BATTERY POLE - Call your local BRP dealership
204470348
Unavailable
11
HEX. NUT 5/16?-18 - Call your local BRP dealership
204100052
Unavailable
12
BATTERY SUPPORT KIT - Call your local BRP dealership
204470419
Unavailable
13
SWITCH ADAPTOR - Call your local BRP dealership
204470813
Unavailable
14
BATTERY SWITCH - Call your local BRP dealership
204470814
Unavailable
15
BATTERY SWITCH SUPPORT - Call your local BRP dealership
204470653
Unavailable
16
SOCKET HEAD SCREW M5 X 50 - Call your local BRP dealership
205455060
Unavailable
17
Flat Washer M5, Stainless
234051600
Unavailable
18
NYLON SPACER - Call your local BRP dealership
204470330
Unavailable
19
Hex. Nut M5
232051600
Unavailable
20
Helical Lock Washer M5
234151601
Unavailable
21
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
22
Silicone Sealant 51388, 300 ml
296000309
Unavailable
23
POSITIVE CABLE, RED - Call your local BRP dealership
204470425
Unavailable
24
Switch Cable, Positive
204470426
Unavailable
25
Red Boot
204470388
Unavailable
26
Tie-Rap 180 mm
414115200
Unavailable
27
Battery Ground Cable
204470427
Unavailable
