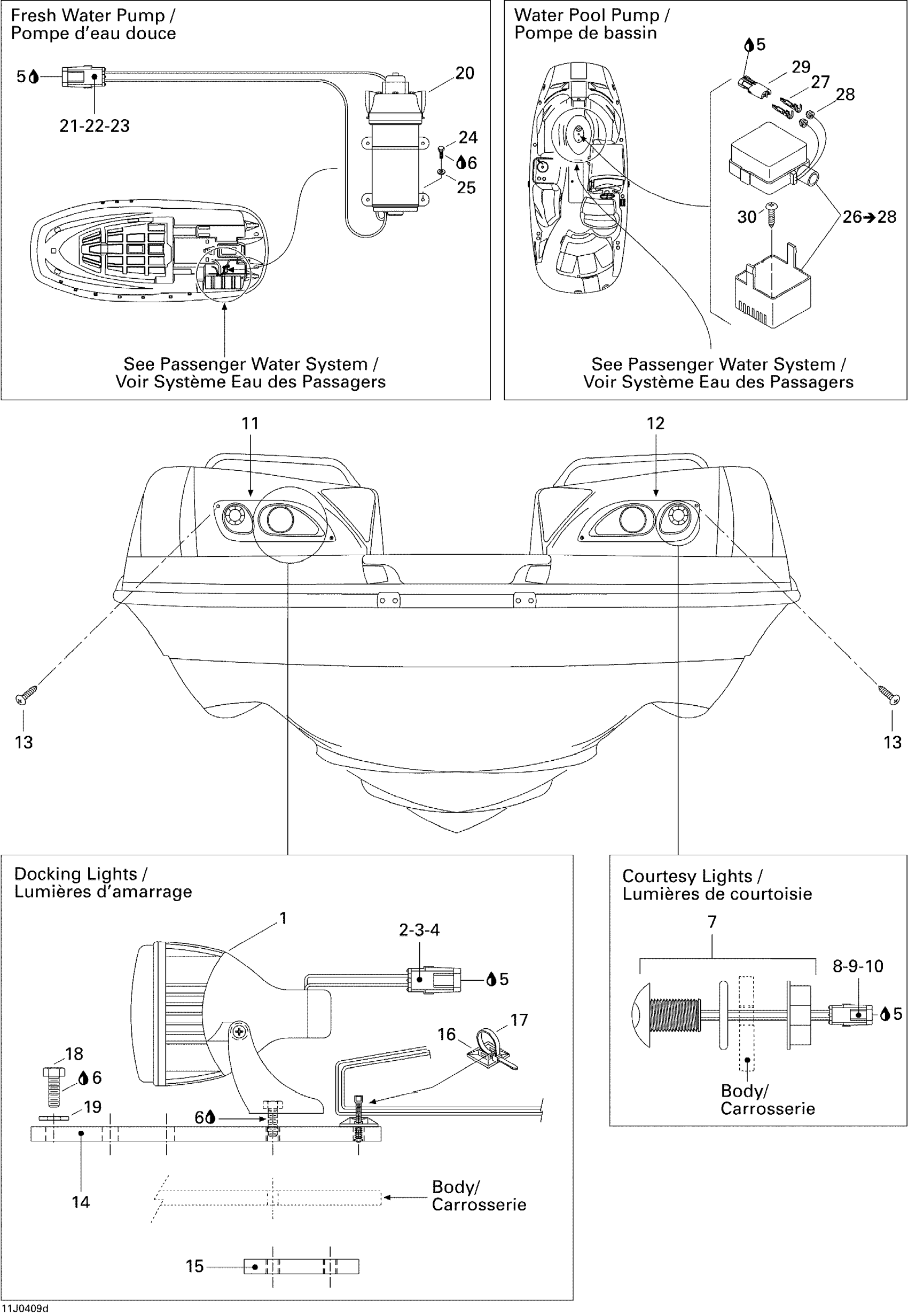

Sea-doo Islandia, 250 OPTI, 240 EFI, 2004 Electrical Accessories 4 Diagram

#

Description
Price

1

DOCKING LIGHT - Call your local BRP dealership

204470512

Unavailable

2

Female Housing, 2 Circuits

278000217

$9.59

3

Male Terminal | XT Models

278000222

$3.19

4

Wire Seal

278000218

$4.39

5

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

6

Loctite 243, 10 ml

293800060

$21.49

7

Courtesy Light

204470514

Unavailable

8

Female Housing, 2 Circuits

278000217

$9.59

9

Male Terminal | XT Models

278000222

$3.19

10

Wire Seal

278000218

$4.39

11

Light Fascia, Starboard

204470619

Unavailable

12

Light Fascia, Port Side

204470620

Unavailable

13

Phillips Tapping Screw

204100058

$0.66

14

UPPER PLATE - Call your local BRP dealership

204470536

Unavailable

15

LOWER PLATE - Call your local BRP dealership

204470537

Unavailable

16

Mount Dart

293730040

$1.04

17

Tie Wrap 142 mm

293750002

$1.25

18

Hex. Screw M6 X 30

207163060

$1.48

19

Flat Washer M6, Stainless

234062600

$0.77

20

FRESH WATER PUMP R4305-144K - Call your local BRP dealership

204470524

Unavailable

21

Female Housing, 2 Circuits

278000217

$9.59

22

Male Terminal | XT Models

278000222

$3.19

23

Wire Seal

278000218

$4.39

24

Hex. Screw M5 X 20

207152060

$1.47

25

Flat Washer M5, Stainless

234051600

$0.77

26

Water Pool Pump Ass’y | Includes 34 to 36

204470525

Unavailable

27

Male Terminal | XT Models

278000222

$3.19

28

Wire Seal

278000218

$4.39

29

Female Housing, 2 Circuits

278000217

$9.59

30

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable
