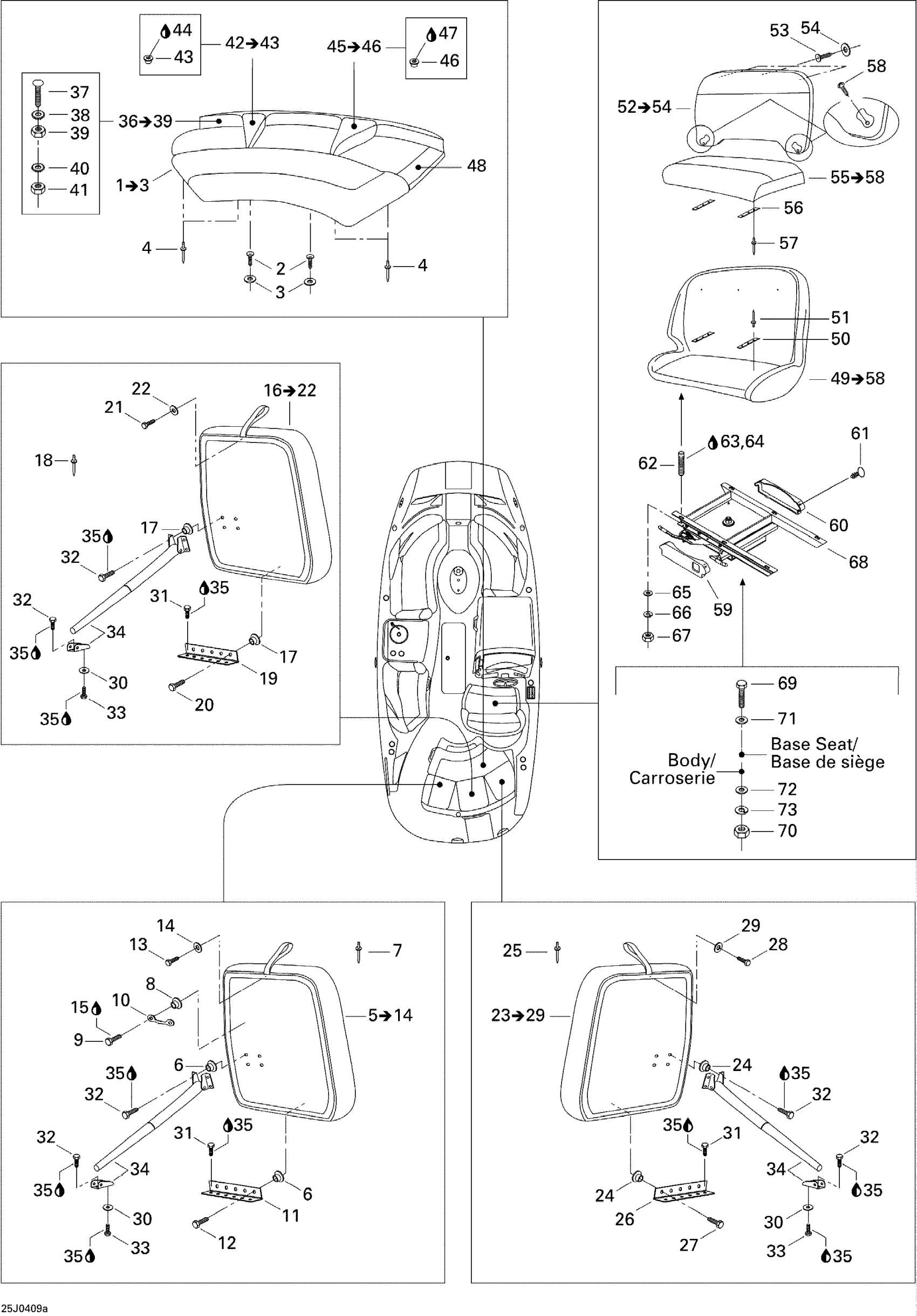

Sea-doo Islandia, 250 OPTI, 240 EFI, 2004 Seat (Driver Seat and Rear Seat) Diagram

#

Description
Price

1

Cushion Ass’y | Includes 1 to 3

204612279

Unavailable

2

Black Dart

293730014

$0.99

3

Flat Washer M6, Stainless

234062600

$0.77

4

Pop Rivet 3/16"

293150013

$1.37

5

LH Backrest Ass'y | Includes 5 to 14

204612287

Unavailable

6

TEE-NUT 1/4?- 20 - Call your local BRP dealership

204100021

Unavailable

7

Pop Rivet 3/16"

293150043

$2.09

8

TEE-NUT #10-32 - Call your local BRP dealership

204100044

Unavailable

9

SOCKET HEAD SCREW 10-32 X .75 - Call your local BRP dealership

204100045

Unavailable

10

Chain Pad

204610988

Unavailable

11

BACKREST HINGE - Call your local BRP dealership

204610750

Unavailable

12

SOCKET HEAD SCREW 1/4? X 3/4? - Call your local BRP dealership

204100035

Unavailable

13

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

14

Flat Washer 4 mm, Stainless

234042600

$1.15

15

Loctite 243, 10 ml

293800060

$21.49

16

Center Backrest Ass’y | Includes 16 to 22

204612295

Unavailable

17

TEE-NUT 1/4?- 20 - Call your local BRP dealership

204100021

Unavailable

18

Pop Rivet 3/16"

293150043

$2.09

19

BACKREST HINGE - Call your local BRP dealership

204610750

Unavailable

20

SOCKET HEAD SCREW 1/4? X 3/4? - Call your local BRP dealership

204100035

Unavailable

21

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

22

Flat Washer 4 mm, Stainless

234042600

$1.15

23

RH Backrest Ass’Y | Includes 23 to 29

204612300

Unavailable

24

TEE-NUT 1/4?- 20 - Call your local BRP dealership

204100021

Unavailable

25

Pop Rivet 3/16"

293150043

$2.09

26

BACKREST HINGE - Call your local BRP dealership

204610750

Unavailable

27

SOCKET HEAD SCREW 1/4? X 3/4? - Call your local BRP dealership

204100035

Unavailable

28

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

29

Flat Washer 4 mm, Stainless

234042600

$1.15

30

Flat Washer M6, Stainless

234062600

$0.77

31

SOCKET HEAD SCREW 1/4? X 1-1/4? - Call your local BRP dealership

204100036

Unavailable

32

SOCKET HEAD SCREW 1/4? X 1? - Call your local BRP dealership

204100037

Unavailable

33

SOCKET HEAD SCREW 1/4? X 3/4? - Call your local BRP dealership

204100035

Unavailable

34

Locking Support

204610749

Unavailable

35

Loctite 243, 10 ml

293800060

$21.49

36

Spoiler Ass’y | Includes 36 to 39

204612305

Unavailable

37

Elevator Bolt

204000130

Unavailable

38

External Serrated Lock Washer 6 mm

234461608

$1.15

39

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

40

Flat Washer 8 mm, Stainless

234082600

$2.43

41

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

42

RH Pad Ass’Y | Includes 42 to 43

204612309

Unavailable

43

TEE-NUT 1/4?- 20 - Call your local BRP dealership

204100021

Unavailable

44

Loctite 243, 10 ml

293800060

$21.49

45

LH Pad Ass’Y | Includes 45 to 46

204612313

Unavailable

46

TEE-NUT 1/4?- 20 - Call your local BRP dealership

204100021

Unavailable

47

Loctite 243, 10 ml

293800060

$21.49

48

Pad Ass’y

204612317

Unavailable

49

Driver Seat Ass’y | Includes 49 to 58

204612319

Unavailable

50

Velcro Strip

293740007

Unavailable

51

RIVET - Call your local BRP dealership

293150065

Unavailable

52

Backrest Ass’y | Includes 52 to 54

204612328

Unavailable

53

Black Dart

293730014

$0.99

54

Flat Washer M6, Stainless

234062600

$0.77

55

Cushion Ass’y | Includes 55 to 58

204612333

Unavailable

56

VELCRO STRIP - Call your local BRP dealership

293740004

Unavailable

57

Pop Rivet 3/16"

293150008

$0.50

58

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

59

Front Protector

204610375

Unavailable

60

Rear Protector

204610376

Unavailable

61

Black, Dart

293730006

$0.99

62

THREADED STUD 1/4-20 X 1-1/4 - Call your local BRP dealership

204100077

Unavailable

63

Loctite 271, 10 ml

293800005

$26.99

64

Was 293800041 Loctite Primer 7649

219704458

$39.99

65

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

66

Lock Washer 1/4”

211200025

$1.29

67

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

68

SWIVEL BASE SEAT - Call your local BRP dealership

204611540

Unavailable

69

HEX. SCREW M8 X 55 - Call your local BRP dealership

207185560

Unavailable

70

Hex. Elastic Nut M8

232581600

$1.48

71

Stainless, Flat Washer 8 mm

234081600

$0.55

72

Flat Washer 8 mm, Stainless

234082600

$2.43

73

Lock Washer 8 mm, Stainless

234181601

$0.55
