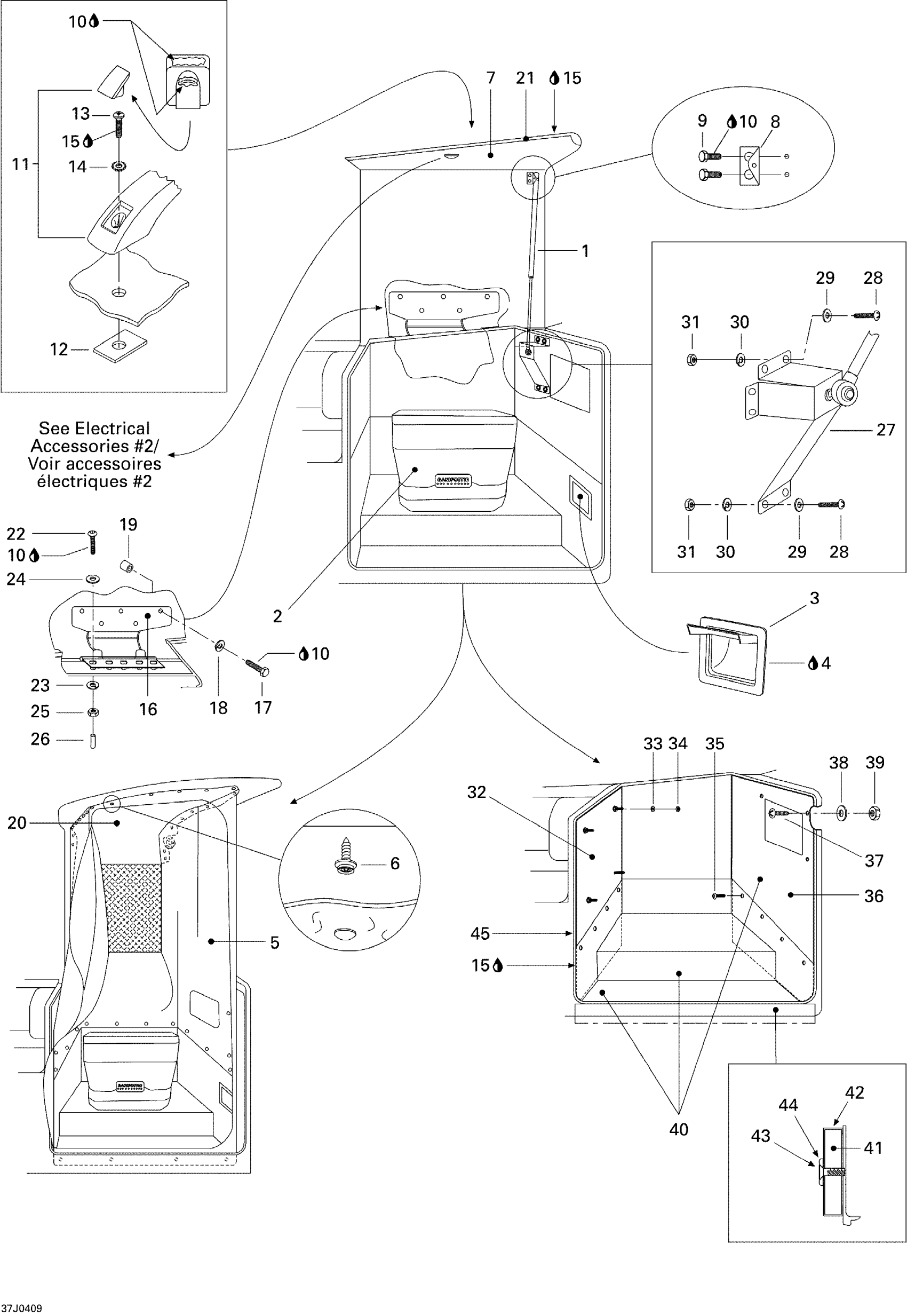

Sea-doo Islandia, 250 OPTI, 240 EFI, 2004 Portable Toilet Diagram
#
1
Gas Shock
204071925
Unavailable
2
PORTABLE TOILET - Call your local BRP dealership
204070636
Unavailable
3
Paper Holder
204070637
Unavailable
4
Silicone Sealant 51388, 300 ml
296000309
Unavailable
5
Toilet Curtain
204071717
Unavailable
6
SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership
202000159
Unavailable
7
Toilet Door
204071161
Unavailable
8
Shock Bracket
204073074
Unavailable
9
HEX. SCREW M5 X 16 - Call your local BRP dealership
207151660
Unavailable
10
Loctite 243, 10 ml
293800060
Unavailable
11
Handle Grip
204071710
Unavailable
12
Handle Insert
293450070
Unavailable
13
PHILLIPS SCREW M6 X 35 - Call your local BRP dealership
208663560
Unavailable
14
Stainless Flat Washer M6
234061600
Unavailable
15
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
Unavailable
16
TOILER DOOR HINGE - Call your local BRP dealership
204070642
Unavailable
17
Hex. Forming Screw M6 X 20
207162060
Unavailable
18
Lock Washer Helical M6
234161601
Unavailable
19
SPACER 3.2 MM - Call your local BRP dealership
204070047
Unavailable
19
SPACER 1.6 MM - Call your local BRP dealership
204070088
Unavailable
20
Headliner, Toilet Door
204070764
Unavailable
21
Trim, White, 7/16”, Meter
204070446
Unavailable
22
Socket Screw M6 X 40
205464060
Unavailable
23
Lock Washer Helical M6
234161601
Unavailable
24
Flat Washer M6, Stainless
234062600
Unavailable
25
Hex. Elastic Stop Nut M6
232561600
Unavailable
26
Cap
204070947
Unavailable
27
CYLINDER SUPPORT, TOILET - Call your local BRP dealership
204070765
Unavailable
28
PHILLIPS SCREW M6 X 30 - Call your local BRP dealership
208663060
Unavailable
29
FLAT WASHER 6 MM - Call your local BRP dealership
234060600
Unavailable
30
Lock Washer Helical M6
234161601
Unavailable
31
Hex. Elastic Stop Nut M6
232561600
Unavailable
32
PLASTIC FORM, FRONT BULKHEAD - Call your local BRP dealership
204071028
Unavailable
33
Flat Washer M6, Stainless
234062600
Unavailable
34
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
35
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
36
PLASTIC FORM, REAR BULKHEAD - Call your local BRP dealership
204070776
Unavailable
37
PHILLIPS SCREW M6 X 30 - Call your local BRP dealership
208663060
Unavailable
38
Flat Washer M6, Stainless
234062600
Unavailable
39
Hex. Elastic Stop Nut M6
232561600
Unavailable
40
Headliner, Toilet Door
204070764
Unavailable
41
LOWER DOOR COVER - Call your local BRP dealership
204070779
Unavailable
42
Headliner, Toilet Door
204070764
Unavailable
43
PHILLIPS TAPPING SCREW M10 X 2 - Call your local BRP dealership
204100056
Unavailable
44
FINITION WASHER - Call your local BRP dealership
204100057
Unavailable
45
Rubber Trim
204070752
Unavailable
