09- Passenger Water System

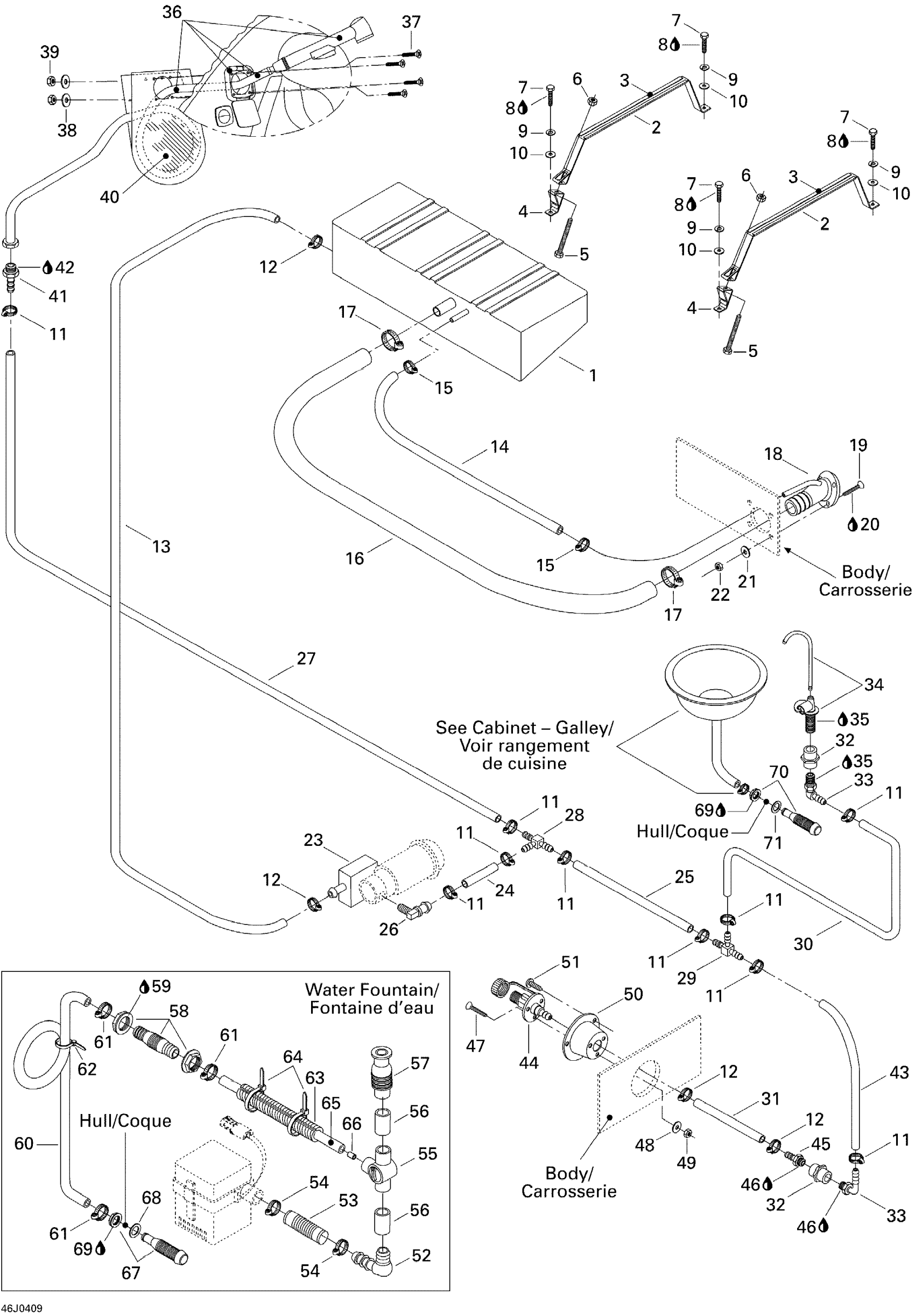

Sea-doo Islandia, 250 OPTI, 240 EFI, 2004 09- Passenger Water System Diagram
#
1
WATER TANK - Call your local BRP dealership
204940002
Unavailable
2
WATER TANK STRAP - Call your local BRP dealership
204940003
Unavailable
3
PROTECTOR PAD - Call your local BRP dealership
293830044
Unavailable
4
TANK BRACKET - Call your local BRP dealership
275500252
Unavailable
5
HEX. SCREW M8 X 55 - Call your local BRP dealership
207185560
Unavailable
6
Hex. Elastic Nut M8
232581600
$1.48
7
Hex. Screw M8 X 30
207183060
$1.58
8
Loctite 243, 10 ml
293800060
$21.49
9
Lock Washer 8 mm, Stainless
234181601
$0.55
10
Flat Washer 8 mm, Stainless
234082600
$2.43
11
Tridon Gear Clamp
293650172
$3.09
12
NORMA CLAMP - Call your local BRP dealership
293650069
Unavailable
13
FRESH WATER HOSE, METER - Call your local BRP dealership
204940010
Unavailable
14
PVC Hose 16 Mm , Meter
204940015
Unavailable
15
Tridon Gear Clamp
293650172
$3.09
16
PVC Hose, Meter
204940005
Unavailable
17
Norma Clamp
293650074
$17.05
18
VENT NECK-FILLER - Call your local BRP dealership
204940041
Unavailable
19
Phillips Screw M4 X 30
208643060
Unavailable
20
Loctite 243, 10 ml
293800060
$21.49
21
Flat Washer 4 mm, Stainless
234042600
$1.15
22
Elastic Stop Nut M4
232541600
$1.15
23
FRESH WATER FILTER - Call your local BRP dealership
204940007
Unavailable
24
FRESH WATER HOSE, METER - Call your local BRP dealership
204940008
Unavailable
25
FRESH WATER HOSE, METER - Call your local BRP dealership
204940008
Unavailable
26
ELBOW FITTING 90 - Call your local BRP dealership
204940009
Unavailable
27
FRESH WATER HOSE, METER - Call your local BRP dealership
204940008
Unavailable
28
T-Fitting
204940011
Unavailable
29
T-Fitting
204940011
Unavailable
30
FRESH WATER HOSE, METER - Call your local BRP dealership
204940008
Unavailable
31
FRESH WATER HOSE, METER - Call your local BRP dealership
204940010
Unavailable
32
NYLON FITTING 1/2? - Call your local BRP dealership
204940030
Unavailable
33
NYLON FITTING 1/2, 90 - Call your local BRP dealership
204940031
Unavailable
34
Sink Faucet
204940017
Unavailable
35
Silicone Sealant 51388, 300 ml
296000309
$36.99
36
FRESH WATER SHOWER - Call your local BRP dealership
204940018
Unavailable
37
Phillips Screw M4 X 30
208443060
$1.48
38
Flat Washer 4 mm, Stainless
234042600
$1.15
39
Elastic Stop Nut M4
232541600
$1.15
40
Bag, Hose/Shower
204940029
Unavailable
41
MALE FITTING 1/2? - Call your local BRP dealership
204940019
Unavailable
42
Was 293800018 Loctite 592, 50 ml | Package T
219704455
$33.99
43
FRESH WATER HOSE, METER - Call your local BRP dealership
204940008
Unavailable
44
WASHDOWN FAUCET - Call your local BRP dealership
204940020
Unavailable
45
Nylon Fitting 1/2” X 3/4”
204940032
Unavailable
46
Silicone Sealant 51388, 300 ml
296000309
$36.99
47
PHILLIPS SCREW M4 X 16 - Call your local BRP dealership
208441660
Unavailable
48
Flat Washer 4 mm, Stainless
234042600
$1.15
49
Elastic Stop Nut M4
232541600
$1.15
50
Washdown Cup
204940051
Unavailable
51
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
52
Elbow Fitting 3/4”, 90°
204940023
Unavailable
53
Hose 1-1/8”, Meter
204940012
Unavailable
54
Norma Clamp
293650074
$17.05
55
DIVERTER VALVE - Call your local BRP dealership
204940024
Unavailable
56
Extension Tube
204940027
Unavailable
57
Fountain Nozzle
204940025
Unavailable
58
Thru Hull Fitting
204940035
Unavailable
59
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
60
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership
291001206
Unavailable
61
Tridon Clamp
293650016
$10.99
62
Tie-Rap 180 mm
414115200
$0.11
63
SLIT CONDUIT 1 - Call your local BRP dealership This part replaces 204560132.
204130176
Unavailable
64
Tie Wrap 142 mm
293750002
$1.25
65
FRESH WATER HOSE, METER - Call your local BRP dealership
204940010
Unavailable
66
Water Hose
204940036
Unavailable
67
Fitting
293710162
$13.49
68
GASKET - Call your local BRP dealership This part replaces 293250251.
293250006
Unavailable
69
Silicone Sealant 51388, 300 ml
296000309
$36.99
70
Thru Hull Fitting 5/8"
204100028
Unavailable
71
GASKET - Call your local BRP dealership
293250028
Unavailable
