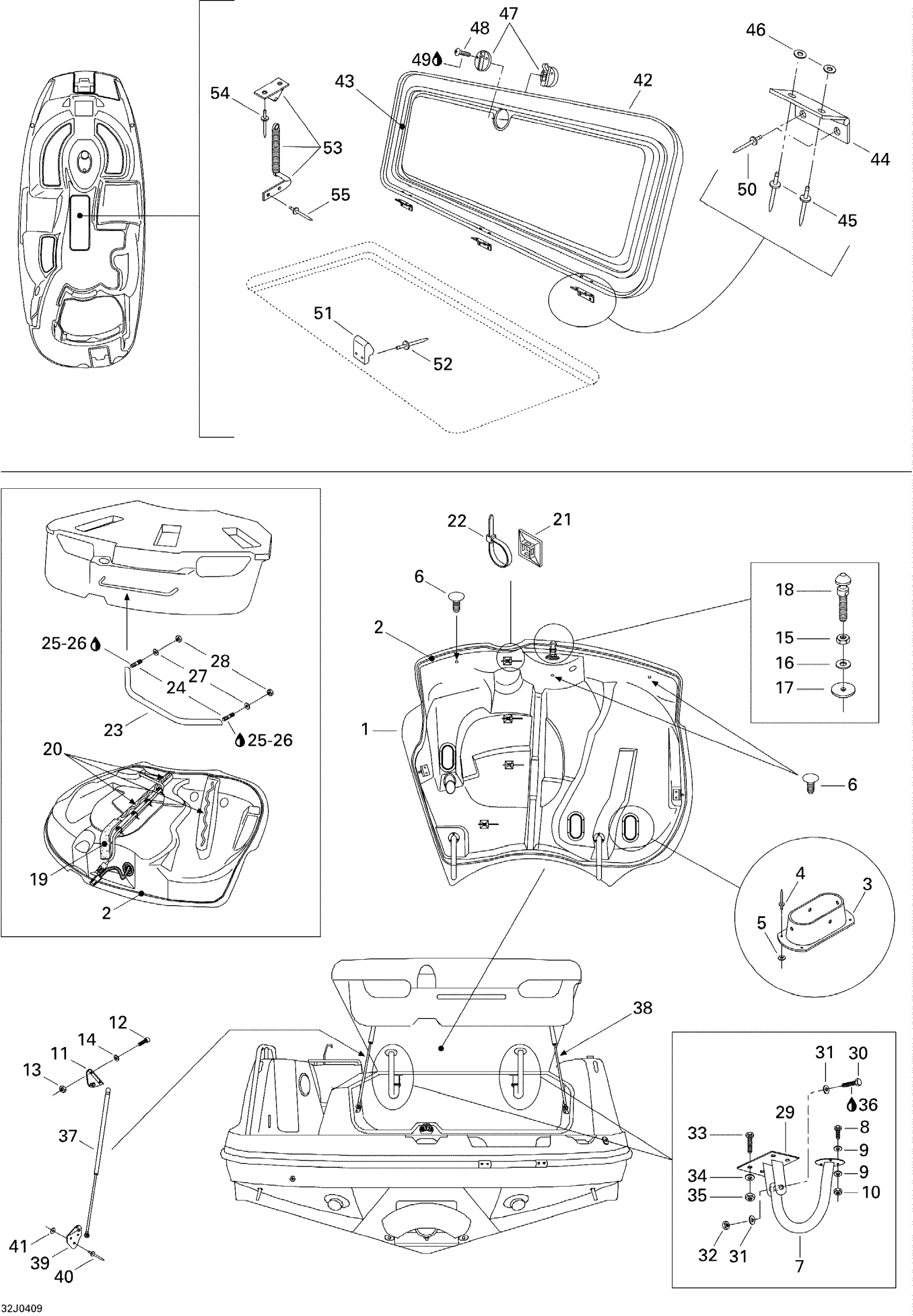

Sea-doo Islandia, 250 OPTI, 240 EFI, 2004 Engine Compartment and Central Cover Diagram

#

Description
Price

1

ENGINE COVER - Call your local BRP dealership

204071808

Unavailable

2

D-SEAL RUBBER - Call your local BRP dealership

204130083

Unavailable

3

Ventilator Adaptor

204071540

Unavailable

4

Pop Rivet 1/8”

293150015

Unavailable

5

Flat Washer M3, Stainless

234032600

Unavailable

6

Black Dart

293730014

Unavailable

7

ENGINE COVER HINGE - Call your local BRP dealership

204070785

Unavailable

8

Hex. Screw M6 X 45

207164560

Unavailable

9

Flat Washer M6, Stainless

234062600

Unavailable

10

Hex. Elastic Stop Nut M6

232561600

Unavailable

11

Shock Bracket

204073074

Unavailable

12

SOCKET HEAD SCREW M5 X 50 - Call your local BRP dealership

205455060

Unavailable

13

Hex. Elastic Nut M5 | X

232551600

Unavailable

14

Flat Washer 5 mm, Stainless

234052600

Unavailable

15

Hex. Jam Nut M10

232100600

Unavailable

16

Flat Washer 10 mm, Stainless

234002600

Unavailable

17

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

18

Latch Stud

204100065

Unavailable

19

FOAM 2-1/2 X 2-1/2 X 18.5 - Call your local BRP dealership

204070903

Unavailable

20

Silicone Sealant 51388, 300 ml

296000309

Unavailable

21

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

22

Tie Wrap 142 mm

293750002

Unavailable

23

GRAB HANDLE - Call your local BRP dealership

204071122

Unavailable

24

STUD 3/8?-16 X 2? - Call your local BRP dealership

204100050

Unavailable

25

Loctite 271, 10 ml

293800005

Unavailable

26

Was 293800041 Loctite Primer 7649

219704458

Unavailable

27

Flat Washer 10 mm, Stainless

234002600

Unavailable

28

HEX. ELASTIC NUT 3/8 - Call your local BRP dealership

204100032

Unavailable

29

HINGE BRACKET, ENGINE COVER - Call your local BRP dealership

204070925

Unavailable

30

HEX. SCREW 3/8?-16 X 2-1/2? - Call your local BRP dealership

204100053

Unavailable

31

Flat Washer 10 mm, Stainless

234002600

Unavailable

32

HEX. ELASTIC NUT 3/8 - Call your local BRP dealership

204100032

Unavailable

33

Hex. Screw M6 X 40

207164060

Unavailable

34

Stainless Flat Washer M6

234061600

Unavailable

35

Hex. Elastic Stop Nut M6

232561600

Unavailable

36

Loctite 243, 10 ml

293800060

Unavailable

37

GAS SHOCK - Call your local BRP dealership

204071923

Unavailable

38

GAS SHOCK - Call your local BRP dealership

204071924

Unavailable

39

Shock Bracket

204071673

Unavailable

40

Pop Rivet 3/16"

293150043

Unavailable

41

Flat Washer M5, Stainless

234051600

Unavailable

42

CENTER COVER - Call your local BRP dealership

204073144

Unavailable

43

TRAY SEAL, METER - Call your local BRP dealership

293200032

Unavailable

44

HINGE - Call your local BRP dealership

204072601

Unavailable

45

Pop Rivet 3/16"

293150088

Unavailable

46

Flat Washer M5, Stainless

234051600

Unavailable

47

LATCH, WHITE - Call your local BRP dealership

204070120

Unavailable

48

SCREW M5 X 16 - Call your local BRP dealership

208651660

Unavailable

49

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

Unavailable

50

Pop Rivet 3/16"

293150088

Unavailable

51

LATCH BRACKET - Call your local BRP dealership

204070050

Unavailable

52

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

53

SPRING SEAT - Call your local BRP dealership

204000071

Unavailable

54

Pop Rivet 3/16"

204000081

Unavailable

55

Pop Rivet 3/16"

293150043

Unavailable
