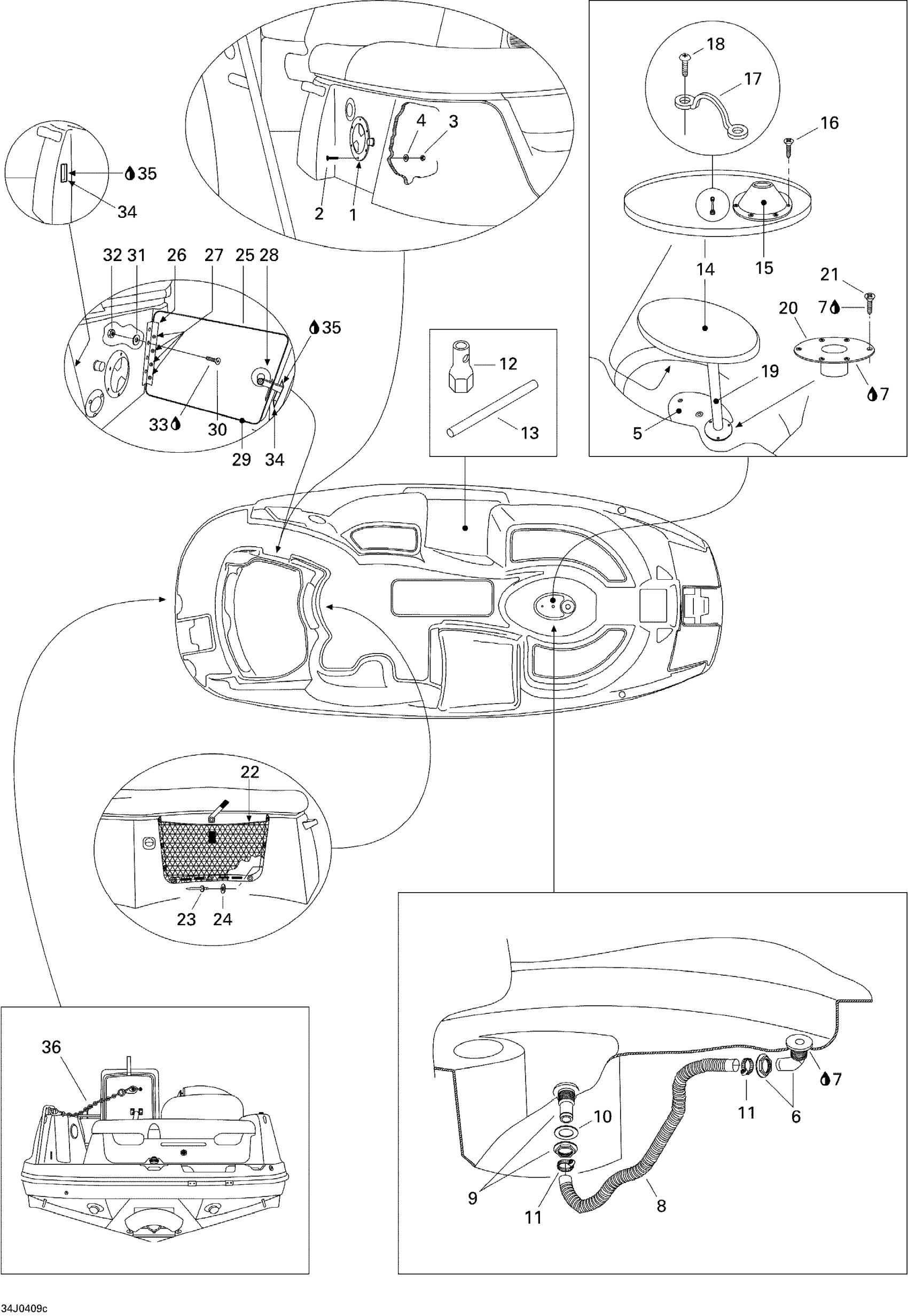

Sea-doo Islandia, 250 OPTI, 240 EFI, 2004 09- Body and Accessories 3 Diagram

#

Description
Price

1

BOTTOM PLATE - Call your local BRP dealership

204070622

Unavailable

2

PHILLIPS SCREW M4 X 20 - Call your local BRP dealership

208442060

Unavailable

3

Elastic Stop Nut M4

232541600

$1.15

4

Flat Washer 4 mm, Stainless

234042600

$1.15

5

FOUNTAIN COVER - Call your local BRP dealership

204070892

Unavailable

6

DRAIN FITTING 90 - Call your local BRP dealership

204071166

Unavailable

7

Silicone Sealant 51388, 300 ml

296000309

$36.99

8

BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership

291001206

Unavailable

9

Fitting

293710162

$13.49

10

GASKET - Call your local BRP dealership This part replaces 293250251.

293250006

Unavailable

11

Tridon Clamp

293650016

$10.99

12

Socket Wrench

204630050

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Cockpit Table

204070632

Unavailable

15

TABLE MOUNT - Call your local BRP dealership | Challenger S

204071315

Unavailable

16

TAPPING SCREW M5 X 19 - Call your local BRP dealership | Challenger S

209951960

Unavailable

17

Strap Tie

204070234

Unavailable

18

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

19

TABLE POST, LARGE - Call your local BRP dealership | Challenger S

204070634

Unavailable

20

TABLE BASE - Call your local BRP dealership

204071209

Unavailable

21

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

22

Storage Net

204071172

Unavailable

23

Pop Rivet 3/16"

293150005

$0.52

24

Flat Washer 5 mm, Stainless

234052600

$0.77

25

Stern Gate

204071233

Unavailable

26

Stern Gate Hinge

204071038

Unavailable

27

Pop Rivet 1/4”

293150081

Unavailable

28

DOOR LATCH - Call your local BRP dealership

204070951

Unavailable

29

NEOPRENE SEAL, METER - Call your local BRP dealership

293200068

Unavailable

30

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208462060

Unavailable

31

Stainless Flat Washer M6

234061600

$0.33

32

Hex. Elastic Stop Nut M6

232561600

$1.15

33

Loctite 243, 10 ml

293800060

$21.49

34

GROMMET - Call your local BRP dealership

293720099

Unavailable

35

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

36

Chain Ass’y

204070978

Unavailable
