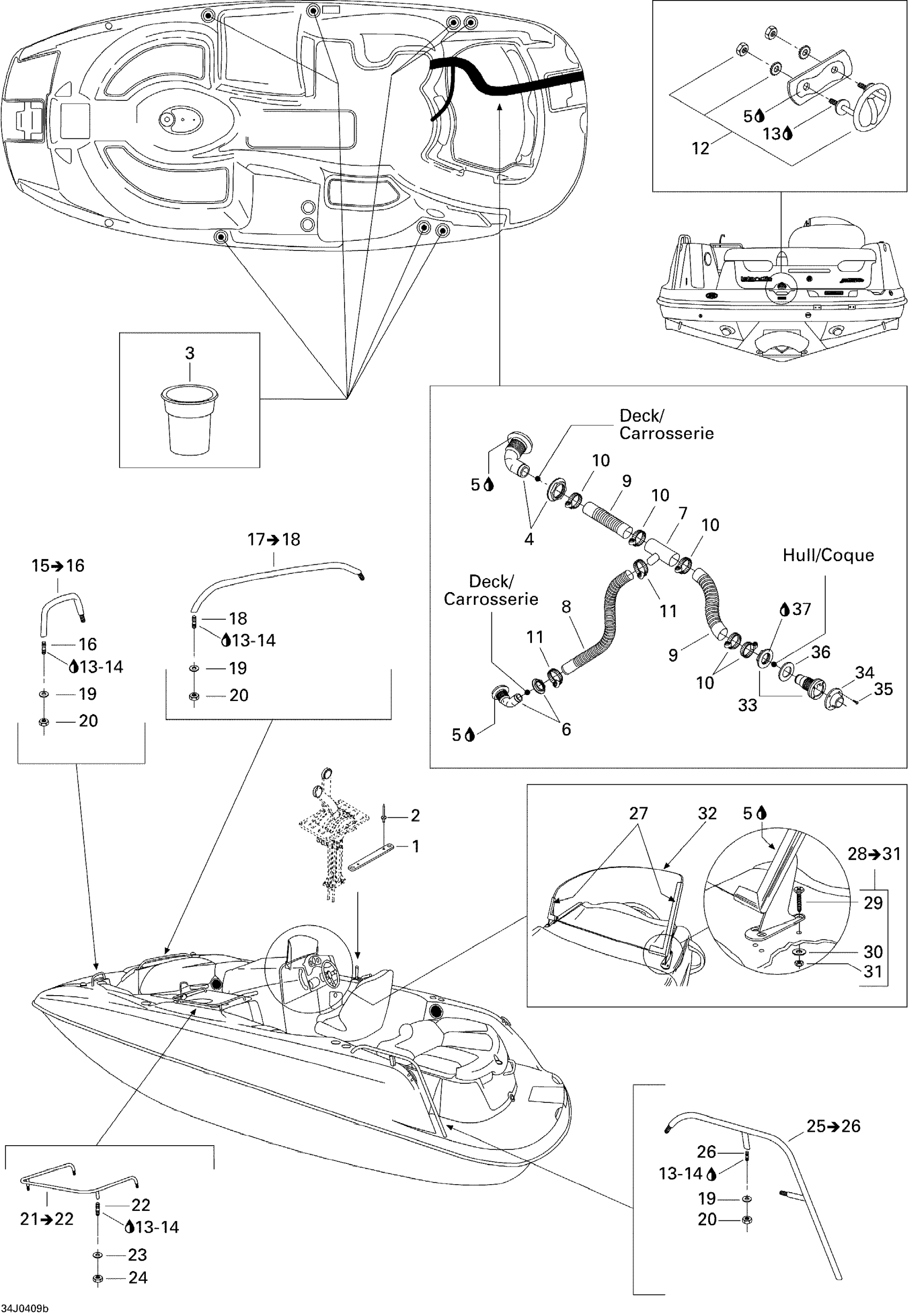

Sea-doo Islandia, 250 OPTI, 240 EFI, 2004 Body and Accessories 2 Diagram

#

Description
Price

1

SHIFTER INSERT - Call your local BRP dealership

293450061

Unavailable

2

Pop Rivet 3/16"

293150013

Unavailable

3

CUP HOLDER - Call your local BRP dealership | STD

291000619

Unavailable

4

THRU-HULL FITTING 90 X 1-1/2 - Call your local BRP dealership

293710084

Unavailable

5

Silicone Sealant 51388, 300 ml

296000309

Unavailable

6

DRAIN FITTING 90 - Call your local BRP dealership

204071166

Unavailable

7

T-FITTING - Call your local BRP dealership

204071167

Unavailable

8

BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership

291001206

Unavailable

9

HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership

204070560

Unavailable

10

Norma Clamp

293650074

Unavailable

11

Tridon Clamp

293650016

Unavailable

12

Ski Tow Hook

204070206

Unavailable

13

Loctite 271, 10 ml

293800005

Unavailable

14

Was 293800041 Loctite Primer 7649

219704458

Unavailable

15

LH Bow Rail Ass’y | Includes 16 to 19

204070605

Unavailable

16

STUD 3/8?-16 X 2? - Call your local BRP dealership

204100050

Unavailable

17

RH Bow Rail Ass’y | Includes 22 to 25

204070606

Unavailable

18

STUD 3/8?-16 X 2? - Call your local BRP dealership

204100050

Unavailable

19

Flat Washer 10 mm, Stainless

234002600

Unavailable

20

HEX. ELASTIC NUT 3/8 - Call your local BRP dealership

204100032

Unavailable

21

COUNTERTOP RAIL ASS?Y - Call your local BRP dealership | Includes 20 to 23

204070608

Unavailable

22

STUD 1/4?-20 X 2? - Call your local BRP dealership

204100033

Unavailable

23

Flat Washer 8 mm, Stainless

234082600

Unavailable

24

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

25

Boarding Rail Ass'y | Includes 24 to 27

204071034

Unavailable

26

STUD 3/8?-16 X 2? - Call your local BRP dealership

204100050

Unavailable

27

Windshield Frame

204070984

Unavailable

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Phillips Screw M6 X 25

208562560

Unavailable

30

Stainless Flat Washer M6

234061600

Unavailable

31

Elastic Stop Nut M6

232561414

Unavailable

32

Front Windshield

204070858

Unavailable

33

THRU HULL FITTING - Call your local BRP dealership

204060071

Unavailable

34

SCUPPER VALVE - Call your local BRP dealership

204060188

Unavailable

35

PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown

211000180

Unavailable

36

GASKET - Call your local BRP dealership

292800106

Unavailable

37

Silicone Sealant 51388, 300 ml

296000309

Unavailable
