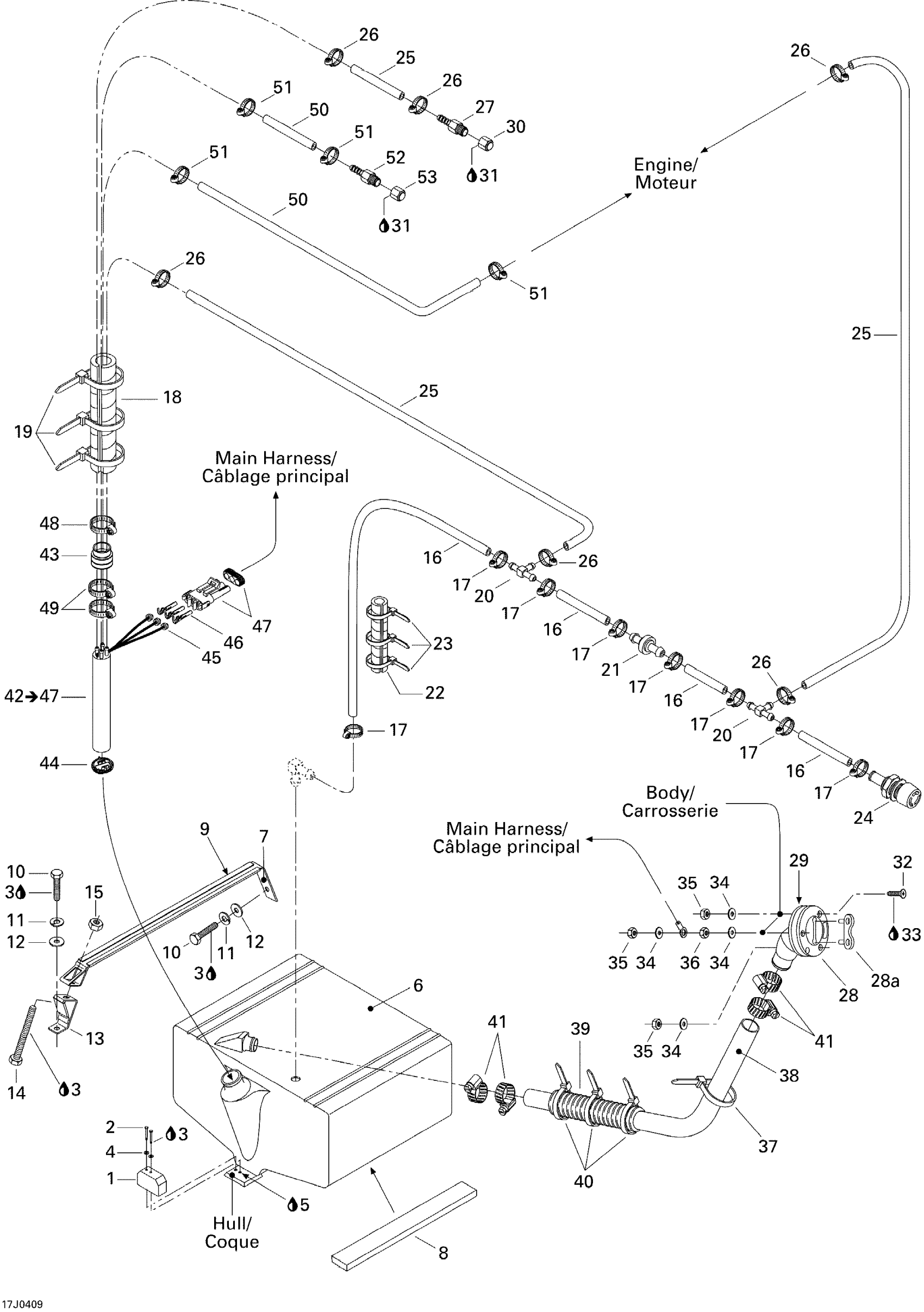

Sea-doo Islandia, 250 OPTI, 240 EFI, 2004 Fuel System Diagram
#
1
Bumper
204390246
Unavailable
2
HEX. SCREW M8 X 65 - Call your local BRP dealership
207086560
Unavailable
3
Loctite 243, 10 ml
293800060
Unavailable
4
Stainless, Flat Washer 8 mm
234081600
Unavailable
5
Silicone Sealant 51388, 300 ml
296000309
Unavailable
6
FUEL TANK, PLASTIC - Call your local BRP dealership
204560113
Unavailable
7
FUEL TANK STRAP - Call your local BRP dealership
204560114
Unavailable
8
PROTECTOR PAD - Call your local BRP dealership
204560115
Unavailable
9
Protector Pad
204560029
Unavailable
10
Hex. Screw M8 X 30
207183060
Unavailable
11
Lock Washer 8 mm, Stainless
234181601
Unavailable
12
Flat Washer 8 mm, Stainless
234082600
Unavailable
13
TANK BRACKET - Call your local BRP dealership
275500252
Unavailable
14
HEX. SCREW M8 X 55 - Call your local BRP dealership
207185560
Unavailable
15
Hex. Elastic Nut M8
232581600
Unavailable
16
HOSE 16 MM - Call your local BRP dealership
204560358
Unavailable
17
NORMA CLAMP - Call your local BRP dealership
293650069
Unavailable
18
Slit Conduit, Meter
204560131
Unavailable
19
Tie Wrap 368 mm
293750008
Unavailable
20
T-Fitting
204560038
Unavailable
21
VENT FUEL SURGE PROTECTOR - Call your local BRP dealership
204560101
Unavailable
22
SLIT CONDUIT 1 - Call your local BRP dealership This part replaces 204560132.
204130176
Unavailable
23
Tie-Rap 180 mm
414115200
Unavailable
24
FUEL VENT - Call your local BRP dealership
204560126
Unavailable
25
HOSE 1/4 - Call your local BRP dealership
204560178
Unavailable
26
NORMA CLAMP - Call your local BRP dealership
293650121
Unavailable
27
COUPLER - Call your local BRP dealership
204560265
Unavailable
28
Filler Neck Ass'y
204560180
Unavailable
28a
FUEL CAP KEY - Call your local BRP dealership
219700344
Unavailable
29
GASKET - Call your local BRP dealership
204560119
Unavailable
30
Pipe Cap
204560263
Unavailable
31
Was 293800013 Loctite 56765
219704454
Unavailable
32
Phillips Screw M5 X 3
208553060
Unavailable
33
Loctite 271, 10 ml
293800005
Unavailable
34
Flat Washer M5, Stainless
234051600
Unavailable
35
Hex. Elastic Nut M5 | X
232551600
Unavailable
36
Hex. Nut M5
232051600
Unavailable
37
Tie Wrap 368 mm
293750008
Unavailable
38
Filler Neck Hose
204560294
Unavailable
39
Slit Conduit, Meter
204560131
Unavailable
40
Tie Wrap 368 mm
293750008
Unavailable
41
NORMA CLAMP - Call your local BRP dealership
293650174
Unavailable
42
BAFFLE PICK-UP ASS?Y - Call your local BRP dealership | Includes 42 to 47
204560222
Unavailable
43
Fuel Tube Adaptor
204560066
Unavailable
44
FUEL FILTER - Call your local BRP dealership
275500397
Unavailable
45
Wire Seal
278000218
Unavailable
46
Female Terminal
278000223
Unavailable
47
Male Housing, 3 Circuits
278000273
Unavailable
48
Norma Clamp
293650077
Unavailable
49
Norma Clamp
293650081
Unavailable
50
Hose 5/16”, Meter
204560177
Unavailable
51
NORMA CLAMP - Call your local BRP dealership
293650070
Unavailable
52
Hose Fitting
204560264
Unavailable
53
Pipe Cap
204560263
Unavailable
