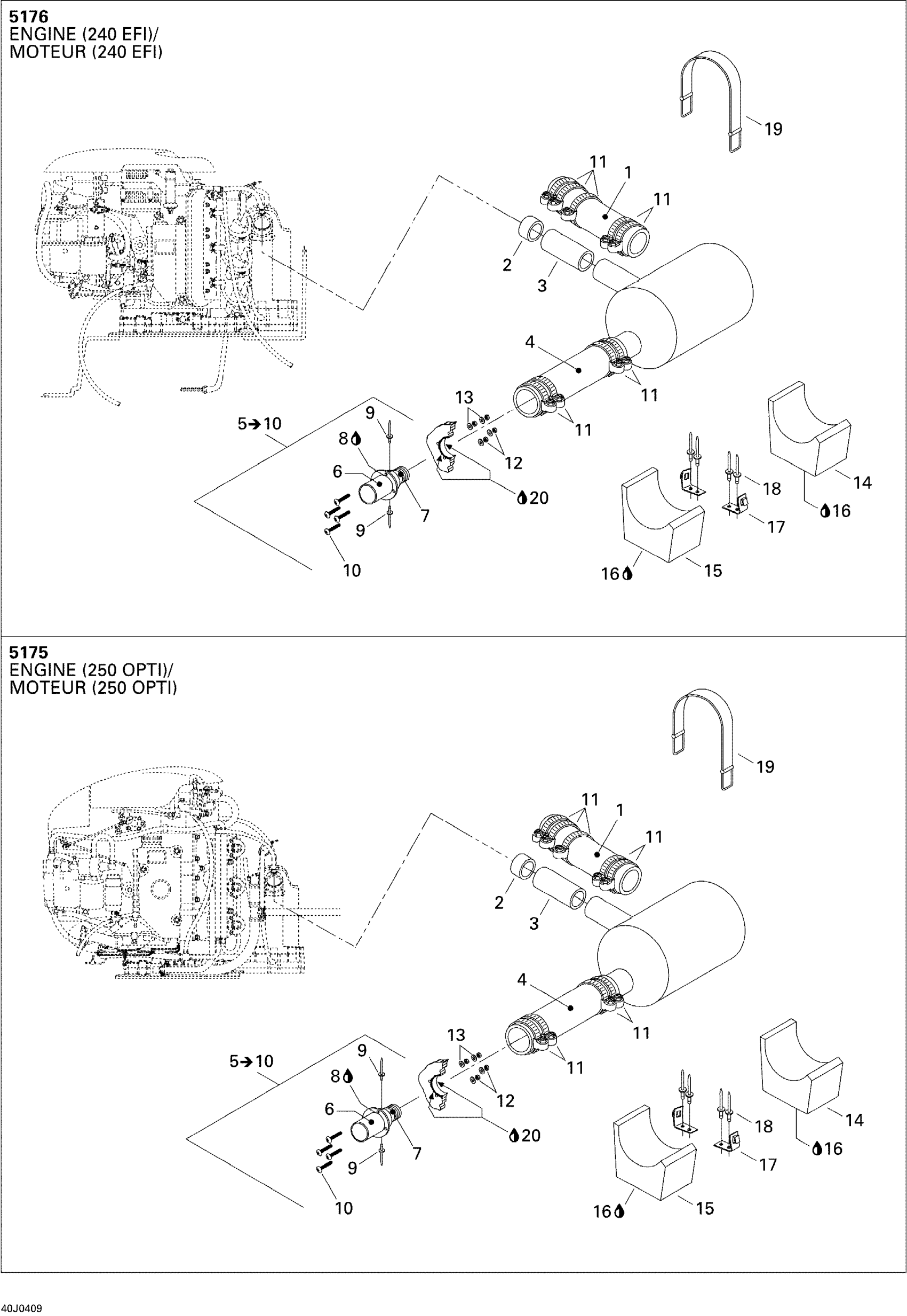

Sea-doo Islandia, 250 OPTI, 240 EFI, 2004 Exhaust Diagram
#
Description
Price
1
Exhaust Hose, Meter
204340256
Unavailable
2
Exhaust Spacer
204340403
Unavailable
3
EXHAUST ADAPTER - Call your local BRP dealership
204340401
Unavailable
4
Exhaust Hose, Meter
204340256
Unavailable
5
Exhaust Outlet Ass’Y | Includes 7 to 10
204340322
Unavailable
6
Not Available As Spare Part - Friction Washer
Unavailable
7
Exhaust Outlet
204340229
Unavailable
8
Not Available As Spare Part - Friction Washer
Unavailable
9
Pop Rivet 3/16"
293150043
Unavailable
10
PHILLIPS SCREW M6 X 35 - Call your local BRP dealership
208663560
Unavailable
11
Tridon Clamp
293650112
Unavailable
12
Hex. Elastic Stop Nut M6
232561600
Unavailable
13
Stainless Flat Washer M6
234061600
Unavailable
14
Front Muffler Support
204340243
Unavailable
15
Rear Muffler Support
204340409
Unavailable
16
Not Available As Spare Part - Friction Washer
Unavailable
17
Strap Clip 90°
204060017
Unavailable
18
Pop Rivet 3/16"
293150088
Unavailable
19
STRAP - Call your local BRP dealership
293850022
Unavailable
20
Silicone Sealant 51388, 300 ml
296000309
Unavailable
