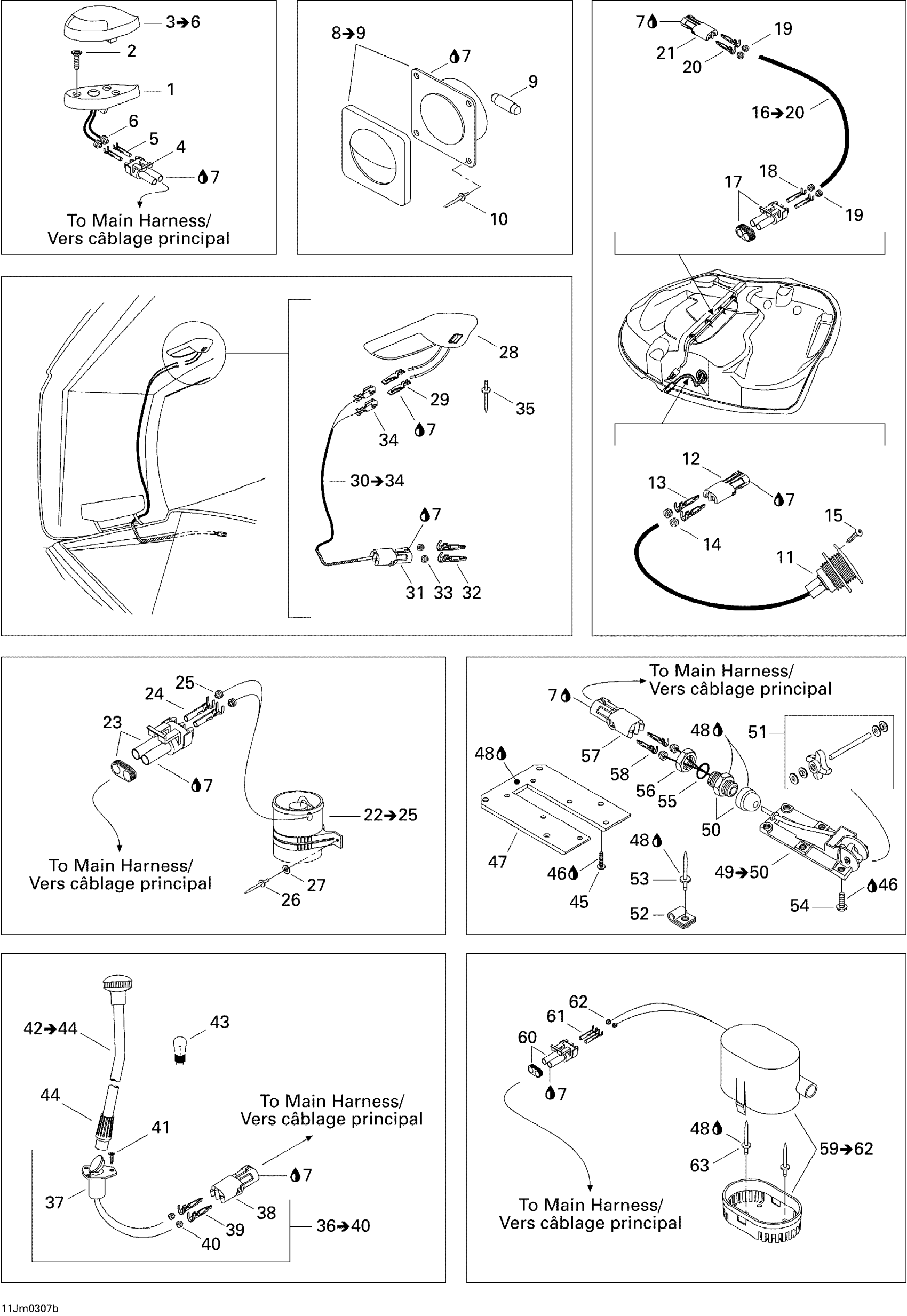

Sea-doo Islandia, 250 OPTI, 240 EFI, 2003 Electrical Accessories 2 Diagram

#

Description
Price

1

FRONT LAMP SUPPORT - Call your local BRP dealership

204470072

Unavailable

2

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

3

NAVIGATION LIGHT, GREEN, STARBOARD - Call your local BRP dealership | Includes 5 to 8

204470407

Unavailable

Navigation Light, Red, Port Side | Includes 5 to 8

204470409

Unavailable

4

Female Housing, 2 Circuits

409209500

$13.07

5

Female Terminal

278001014

$2.72

6

Wire Seal

278001013

$2.72

7

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

8

Courtesy Light Ass'y | Includes 29 to 30

204470026

$44.00

9

BULB - Call your local BRP dealership

204470081

Unavailable

10

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

11

Engine Compartment Light

204470412

Unavailable

12

Female Housing, 2 Circuits

278000217

$7.59

13

Male Terminal | XT Models

278000222

$2.55

14

Wire Seal

278000218

$3.48

15

Hex. Flange Screw K40 X 25

241142560

$2.17

16

LIGHT HARNESS - Call your local BRP dealership

204470551

Unavailable

17

Male Connector, 2 Circuits

278000220

$11.02

18

Female Terminal

409007300

$0.36

19

Wire Seal

278000218

$3.48

20

Male Terminal | XT Models

278000222

$2.55

21

Female Housing, 2 Circuits

278000217

$7.59

22

Fan Ass'y | Includes 44 to 47

204470108

$114.37

23

Male Connector, 2 Circuits

278000220

$11.02

24

Female Terminal

278000223

$2.55

25

Wire Seal

278000218

$3.48

26

Pop Rivet 3/16"

293150008

$0.40

27

Flat Washer 5 mm, Stainless

234052600

$0.64

28

TOILET LIGHT ASS?Y - Call your local BRP dealership

204470414

Unavailable

29

Male Terminal

204470553

Unavailable

30

Toilet Light Harness | Includes 30 To 34

204470552

Unavailable

31

Female Housing, 2 Circuits

278000217

$7.59

32

Male Terminal | XT Models

278000222

$2.55

33

Wire Seal

278000218

$3.48

34

Not Available As Spare Part - Friction Washer

Unavailable

35

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

36

Rear Light Base Ass'y | Includes 33 to 36

278000674

Unavailable

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Female Housing, 2 Circuits

278000217

$7.59

39

Male Terminal | XT Models

278000222

$2.55

40

Wire Seal

278000218

$3.48

41

Phillips Tapping Screw M4.2 X 32

209943260

$1.40

42

Rear Lamp Pole | Includes 19 to 21

204470816

Unavailable

43

Bulb

204470053

Unavailable

44

COLLAR - Call your local BRP dealership

204470350

Unavailable

45

Phillips Screw M6 X 35 | W/O Weedless System

208563560

$1.88

46

Loctite 243, 10 ml

293800060

$20.77

47

Sensor Support

204470538

Unavailable

48

Silicone Sealant 51388, 300 ml

296000309

$35.72

49

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

50

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

51

Paddle Wheel Kit

295500108

Unavailable

52

Cable Clamp 3/16”

204100026

Unavailable

53

Pop Rivet 3/16"

293150088

$0.91

54

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208551060

Unavailable

55

SEAL WASHER - Call your local BRP dealership

278000416

Unavailable

56

LOCKING NUT - Call your local BRP dealership

293710032

Unavailable

57

Female Housing, 2 Circuits

278000217

$7.59

58

Male Terminal | XT Models

278000222

$2.55

59

Bilge Pump

204471431

Unavailable

60

Male Connector, 2 Circuits

278000220

$11.02

61

Female Terminal

278000223

$2.55

62

Wire Seal

278000218

$3.48

63

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable
