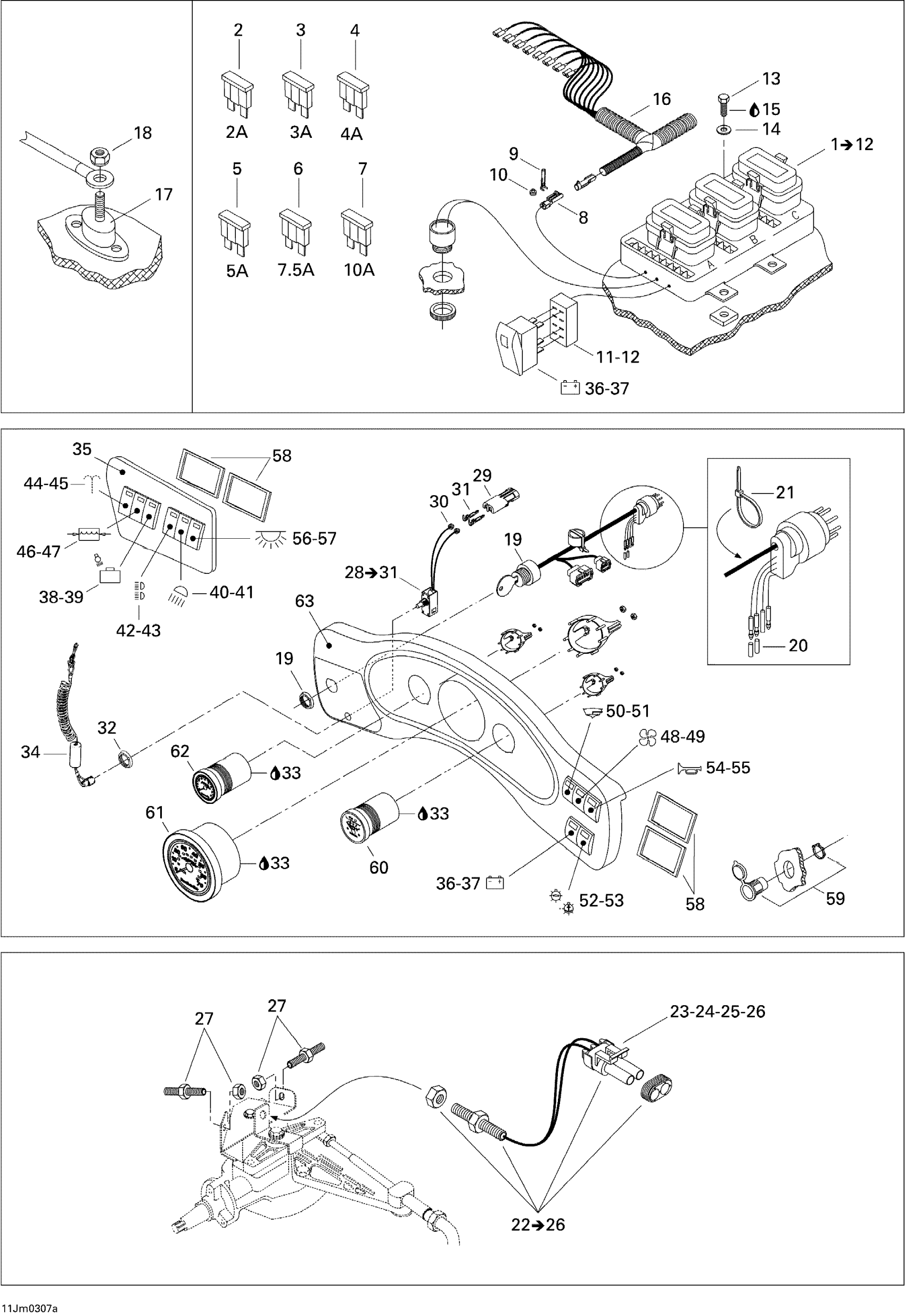

Sea-doo Islandia, 250 OPTI, 240 EFI, 2003 Electrical Accessories 1 Diagram

#

Description
Price

1

FUSE BLOCK - Call your local BRP dealership | Includes 18 To 28

204470610

Unavailable

2

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

3

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Fuse, 5 Amperes | CE

278000344

$3.28

6

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

7

Fuse, 10 Amperes | North America

278001197

$2.21

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Male Terminal | Europe Models

409012900

$3.28

10

Not Available As Spare Part - Friction Washer

Unavailable

11

MALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

278001321

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Hex. Cap Screw M6 X 12

207161260

$1.26

14

Flat Washer M6, Stainless

234062600

$0.77

15

Loctite 243, 10 ml

293800060

$21.49

16

Harness

204470832

Unavailable

17

Ground Post

204470715

Unavailable

18

HEX. ELASTIC NUT 3/8 - Call your local BRP dealership

204100032

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

RUBBER CAP - Call your local BRP dealership

204130033

Unavailable

21

Tie Wrap 94 mm | 4X4

293750001

$1.03

22

LOW SPEED CONTROL SENSOR ASS'Y - Call your local BRP dealership | Includes 46 to 50

204470631

Unavailable

23

Female Terminal Housing

204470634

Unavailable

24

Terminal Support

204470635

Unavailable

25

Wire Seal

204470641

Unavailable

26

Female Terminal

278001481

$3.49

27

Low Speed Control Actuator

204470632

$42.99

28

Safety Switch | Includes 17 - 20.

204470463

Unavailable

29

Female Housing, 2 Circuits

278000217

$9.59

30

Wire Seal

278000218

$4.39

31

Male Terminal | XT Models

278000222

$3.19

32

Safety Switch Nut

278000099

Unavailable

33

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

34

Safety Lanyard

278001431

$47.49

35

Switch Panel

204470793

Unavailable

36

BATTERY SWITCH - Call your local BRP dealership | Includes 53 to 54

204470544

Unavailable

37

Gasket

204470132

Unavailable

38

LIGHT SWITCH - Call your local BRP dealership | Includes 51 to 52

204470402

Unavailable

39

Gasket

204470132

Unavailable

40

LIGHT SWITCH, BOARDING - Call your local BRP dealership | Includes 47 to 48

204470403

Unavailable

41

Gasket

204470132

Unavailable

42

LIGHT SWITCH, DOCKING - Call your local BRP dealership | Includes 49 to 50

204470404

Unavailable

43

Gasket

204470132

Unavailable

44

SWITCH, SMALL POOL PUMP - Call your local BRP dealership | Includes 53 to 54

204470405

Unavailable

45

Gasket

204470132

Unavailable

46

SWITCH, PASSENGER WATER PUMP - Call your local BRP dealership | Includes 54 to 55

204470406

Unavailable

47

Gasket

204470132

Unavailable

48

VENTILATION SWITCH ASS'Y - Call your local BRP dealership

204470011

Unavailable

49

Gasket

204470132

Unavailable

50

BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership

204470099

Unavailable

51

Gasket

204470132

Unavailable

52

LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470100

Unavailable

53

Gasket

204470132

Unavailable

54

HORN SWITCH ASS'Y - Call your local BRP dealership

204470101

$49.99

55

Gasket

204470132

Unavailable

56

COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470102

Unavailable

57

Gasket

204470132

Unavailable

58

LOCKING PLATE - Call your local BRP dealership

204470343

Unavailable

59

DC Outlet

710001248

$37.99

60

Oil/Fuel Gauge

204470806

Unavailable

61

Speedometer Gauge

204470805

Unavailable

62

Tachometer Gauge

204470807

Unavailable

63

Fascia Ass’y

204470782

Unavailable
